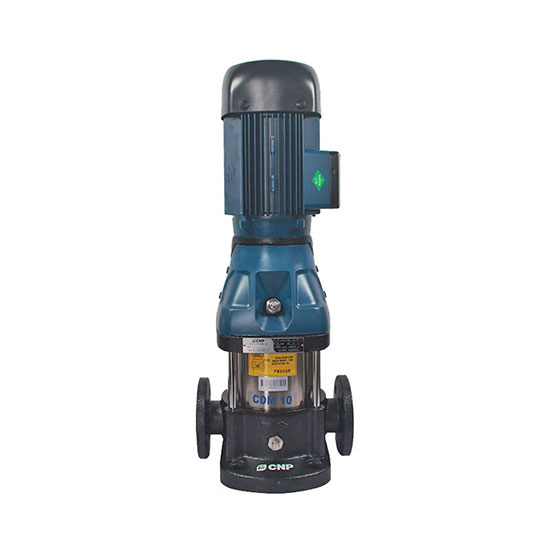

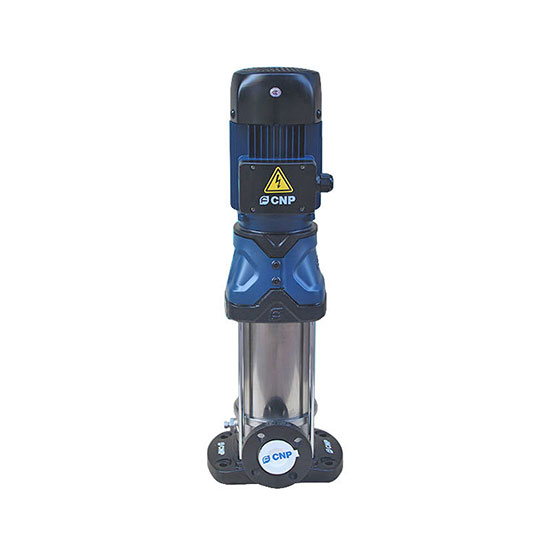

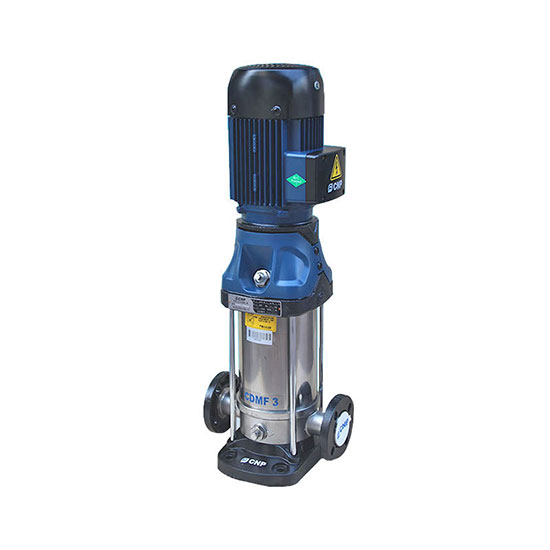

Southern CDM/CDMF Series Light Vertical Multistage Centrifugal Pump

(0 reviews)

(187) Views

(0) Contacts

Southern Multistage Centrifugal Pump CDMF1-15 Water Supply System/Industrial Liquid Transport/Industrial Booster Pump Water Pump

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(1360) Views

(8) Contacts

Description:
Nanfang CDM/CDMF series is a new generation, high-efficiency non-self-priming vertical multi-stage centrifugal pump independently developed with reference to European standards.

The product adopts a new industrial design, and the energy efficiency index reaches MEI≥0.7.

It has the characteristics of energy saving, low noise, environmental protection, compact structure, beautiful appearance, lightweight, convenient use and maintenance, and high reliability.
Performance and advantages:
High efficiency and energy saving
Compact structure
Easy to disassemble and seal
Easy maintenance
Pipeline installation
Small installation space

                                                            Flow
                                                            0.5m³/h～240m³/h

                                                            Head
                                                            4m～305m

                                                            Power
                                                            0.37kW～110kW

                                                            Liquid temperature
                                                            -15℃～+120℃

                                                            Frequency
                                                            50Hz

                                                            Material
                                                            Cast iron or 304/316L stainless steel

                                                            Flow
                                                            1 m³ / h 　　　

                                                            Efficiency
                                                            42.1%

                                                            Speed
                                                            2900 rpm 　　

                                                            Impeller Outer Diameter
                                                            47.5mm

                                                            Mechanical seal
                                                            CDLA-12/WBF14

                                                            Medium temperature
                                                            Normal temperature type -15 ℃ ~ +70 ℃     　　　　　Hot water type -15 ℃～+120 ℃

                                                            CDMF
                                                            On behalf of the fluid is stainless steel 304 or 316L

Industrial facilities
Water supply systems
Boiler feed water, and condensing systems
Cooling and air conditioning systems
Water treatment
Fire protection systems
