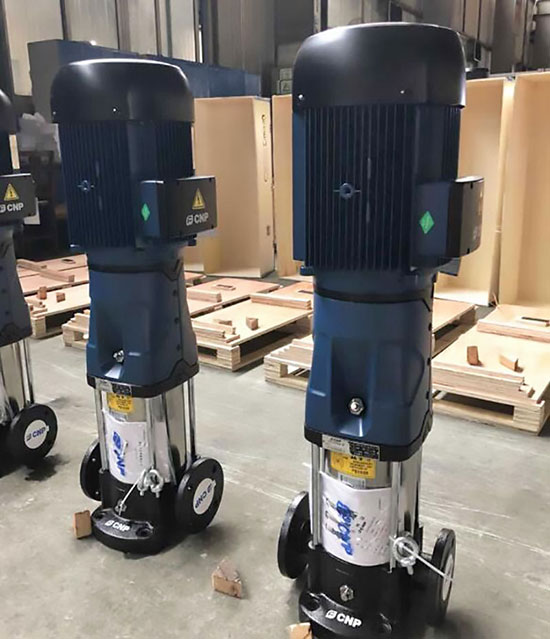

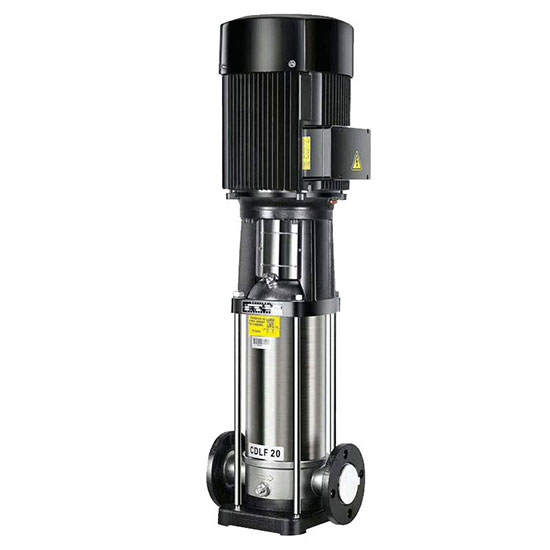

Southern Stainless Steel Centrifugal Pump CDLF8-5FSWSC Light Vertical Multistage Pump Fire System Water Treatment Pump

(0 reviews)

Get Price

(194) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(1355) Views

(8) Contacts

Description:

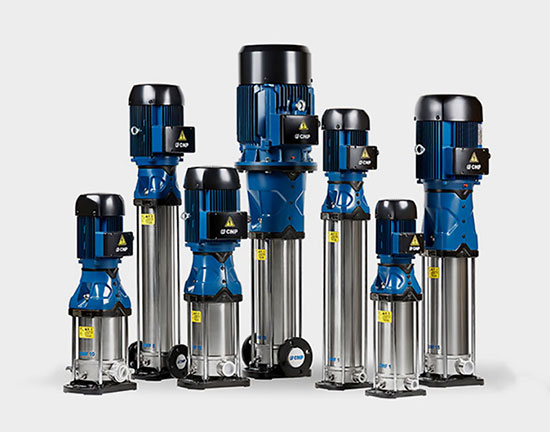

South CDL, CDLF non-self-priming light vertical multi-stage centrifugal pump, the motor shaft is directly connected with the pump shaft through the coupling, the impeller guide vane is made of stainless steel plate stamping welding or stainless steel precision casting, the pump inlet and outlet are in the same line at the bottom of the pump (can be equipped with IEC or NEMA motor).
Performance and advantages:
High efficiency and energy saving

Compact structure

Easy to disassemble and seal

Easy maintenance

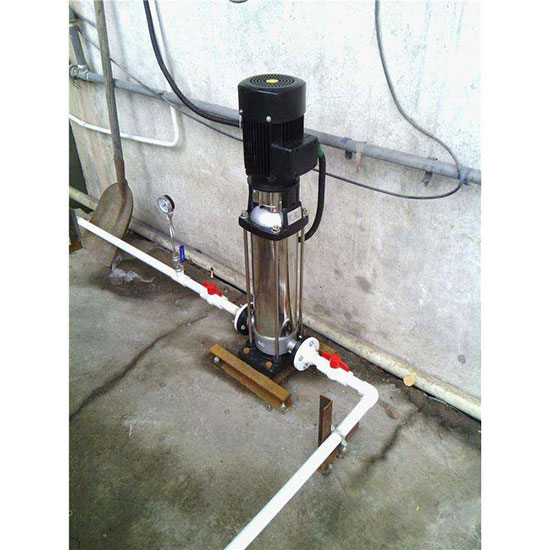

Pipeline installation

Small installation space

                                                            Material
                                                            Stainless steel

                                                            Flow
                                                            0.4m3/h～240m3/h

                                                            Head
                                                            4m～305m

                                                            Power
                                                            0.37kW～110kW

                                                            Liquid temperature
                                                            -15℃～+120℃

                                                            Frequency
                                                            50Hz/60Hz

                                                            Model
                                                            CDLF8-5FSWSC

                                                            Head
                                                            45 m

                                                            Flow
                                                            8 m3/h

                                                            Motor power
                                                            2.2 KW

                                                            Speed
                                                            2900 r/min

Industrial facilities
Water supply systems
Boiler feed water, and condensing systems
Cooling and air conditioning systems
Water treatment
Fire protection systems
