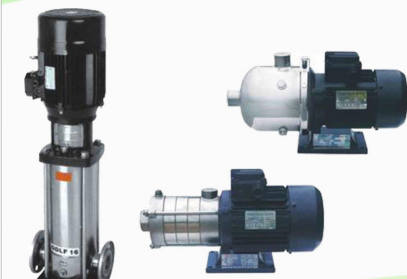

CDL/CDLF Type Light Vertical Multistage Centrifugal Pump

(0 reviews)

Get Price

(237) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(1360) Views

(8) Contacts

Product Description: Non-self-priming vertical multi-stage centrifugal pump, the motor shaft is directly connected to the pump shaft through the coupling, the impeller guide vane is made of stainless steel plate stamping and welding or stainless steel precision casting, the pump inlet and outlet are in the same line at the bottom of the pump (can be equipped with IEC or NEMA motor).

Performance and advantages

energy saving
compact
The whole is easy to disassemble and seal, easy to maintain, and the installation
space is small.

                                                            Flow
                                                            0.4m 3 /h～240m 3 /h

                                                            Frequency
                                                            50Hz/60Hz

                                                            Head
                                                            4m～305m

                                                            Liquid temperature
                                                            -15℃～+120℃

                                                            Power
                                                            0.37kW～110kW

Water supply: filtration and transportation in water plants, water supply in water plants by district, supercharging in supervisors, supercharging in high-rise buildings

Industrial booster: process water system, cleaning system, high-pressure flushing system, fire protection system
Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensing systems, machine tool matching, acid and alkali
Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool
Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation
