Grundfos water Pump CR Series Cast Iron / 304 Stainless Steel Vertical Multi-Stage Pump Multi-Specification Optional Booster Pump

(0 reviews)

Get Price

(997) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(5187) Views

(31) Contacts

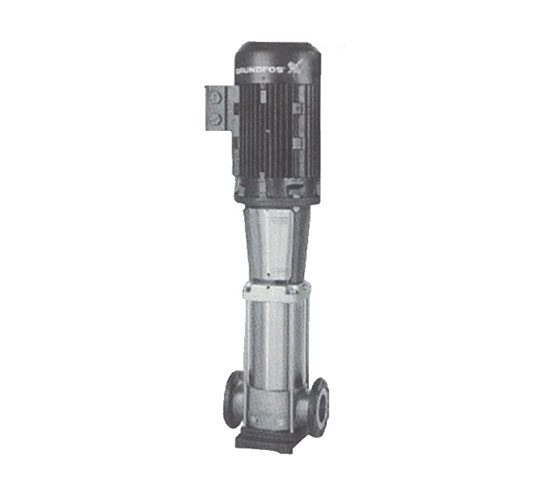

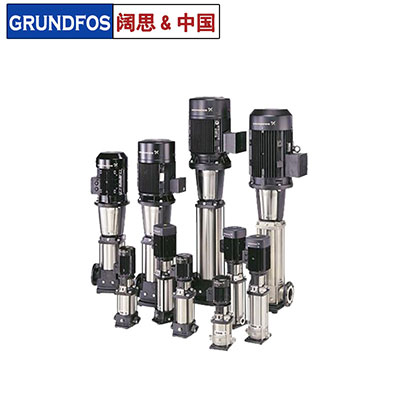

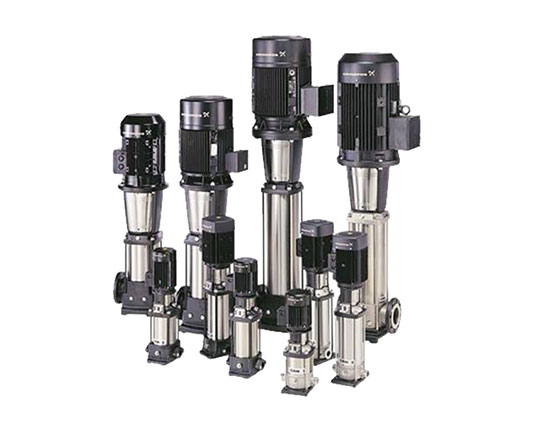

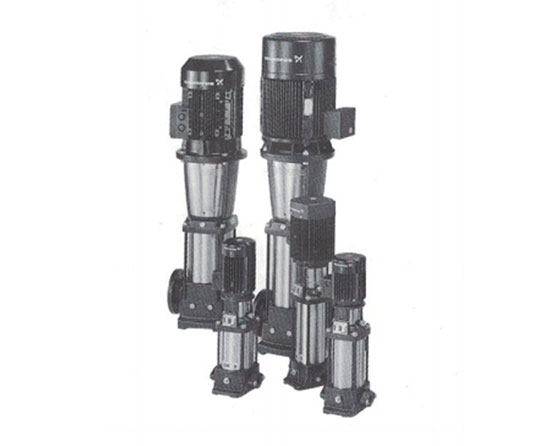

Grundfos water pump CR series cast iron / 304 stainless steel vertical multi-stage pump multi-specification optional booster pump
Vertical multi-stage centrifugal pump with suction and discharge at the same level.

The pump head and base are cast iron.

All other parts in contact with liquid are stainless steel.
Motor
power is below 2.2kW (inclusive), power supply specification is 3*230VD/400VY, 3*380-415VD for 3kW to 5.5kW, 3*380-415VD/660-690VY for 7.5kW and above,
IP55 insulation class F

                                                            p Max
                                                            40 bar

                                                            Max flow
                                                            244 m³/h

                                                            Max head
                                                            362 m

                                                            Liquid temperature
                                                            -30 .. 120 °C

Commercial air conditioning
Commercial fire protection
Commercial heating
Commercial water boosting
District cooling
District heating
Machining
Industrial cleaning
Cooling
Heating
Seawater desalination
Water treatment
Industrial water supply and transportation
Industrial wastewater
Drinking water
Irrigation
Solar water solutions
Surface water intake
Municipal transportation Water distribution
Spray/micro spray
Frost protection
pivot
