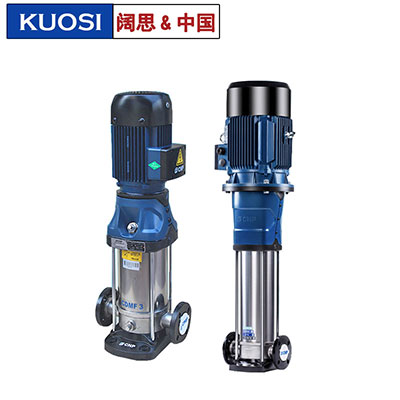

Southern Multistage Centrifugal Pump CDM10-6FSWPR Ultrafiltration Water/Reverse Osmosis Water/Distilled Water/Swimming Pool Pump

(0 reviews)

Get Price

(172) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(1360) Views

(8) Contacts

Description:
Nanfang CDM/CDMF series is a new generation, high-efficiency non-self-priming vertical multi-stage centrifugal pump independently developed with reference to European standards.

The product adopts a new industrial design, and the energy efficiency index reaches MEI≥0.7.

It has the characteristics of energy saving, low noise, environmental protection, compact structure, beautiful appearance, lightweight, convenient use and maintenance, and high reliability.
Performance and advantages:

High efficiency and energy saving
Compact structure
Easy to disassemble and seal
Easy maintenance
Pipeline installation
Small installation space

                                                            Material
                                                            Cast iron or 304/316L stainless steel

                                                            Flow
                                                            0.5m³/h～240m³/h

                                                            Flow
                                                            10 m³/h

                                                            Head
                                                            4m～305m

                                                            Frequency
                                                            50Hz

                                                            Power
                                                            0.37kW～110kW

                                                            Liquid temperature
                                                            -15℃～+120℃

                                                            Efficiency
                                                            72%

                                                            Speed
                                                            2900 rpm

                                                            Impeller outer diameter
                                                            100mm

                                                            Mechanical seal
                                                            CDLA-16/WBF14

                                                            Medium temperature
                                                            normal temperature type -15℃～+70℃  　　　　　Hot water type -15℃～+120℃

                                                            CDMF
                                                            On behalf of the fluid is stainless steel 304 or 316L
