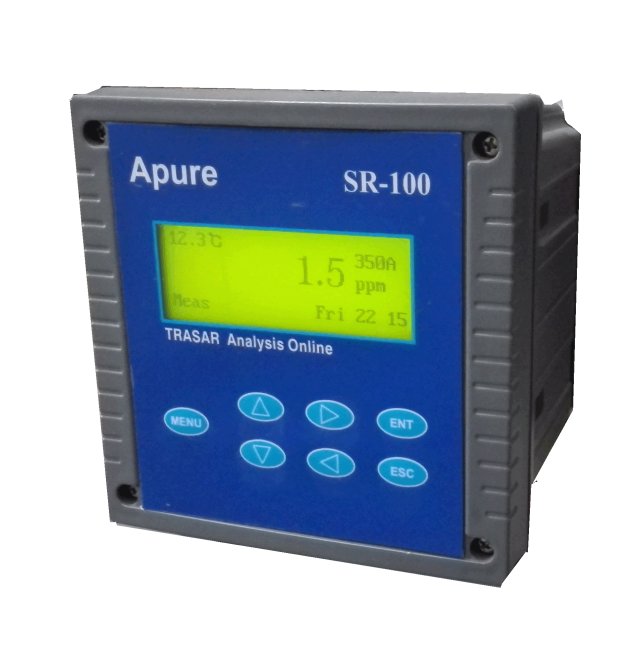

The SR-100 industrial online tracer analyzer is a brand-new tracer analyzer.

This watch is highly intelligent and flexible.

It can measure the tracer agent and temperature at the same time.

144*144 Intelligent Design Tracer Transmitter
● Provide zero calibration and slope calibration functions, which is convenient for on-site application
● Object-oriented menu design, easy to operate

● 3 display modes, convenient for users to check each parameter
● 19264 LCD backlight is soft and clear.

● 3 groups of 4-20ma; 3 groups of independent relays.

● Watchdog function to ensure the normal and continuous work of the instrument
● Outdoor waterproof type is suitable for panel mounting, wall mounting

                                                            Model
                                                            SR-100

                                                            Measuring range
                                                            350A Value 0 ~ 99.9 ppm , resolution 0.1 ppm

                                                            Temperature
                                                            0 ~ 50.0 ℃, resolution 0.1 ℃

                                                            TP value
                                                            0 to 9.99 ppm , resolution 0.01 ppm

                                                            Accuracy
                                                            350A   value: ± 0.1 ppm

                                                            Standard liquid approval
                                                            on-site deployment

                                                            Relay withstand load
                                                            AC 220V , 5A

                                                            Power supply
                                                            90-265 VAC,

                                                            Power
                                                            ≤ 10W

                                                            Installation method
                                                            panel mounted and wall mounted

                                                            Protection class
                                                            IP65

                                                            Output signal
                                                            3 groups of 4~20mA isolation protection output corresponding to parameters 350A , TP , OFF )

                                                            Output current error
                                                            ≤± 1%FS

                                                            Volume
                                                            144*144*120(H*W*D)mm

                                                            Relay output
                                                            3 groups of relays independently select corresponding measurement parameters   ( 350A, TP , OFF )

                                                            Opening size
                                                            133*133(H*W)mm

                                                            Weight
                                                            0.8kg

                                                            Ambient temperature
                                                            0~60 ℃

                                                            Air relative humidity
                                                            < 85%

                                                            Magnetic field
                                                            No strong magnetic field interference except the earth's magnetic field

It is widely used in electricity and water supply, pharmaceutical, chemical, food, and other industries, and continuous measurement of circulating water.
