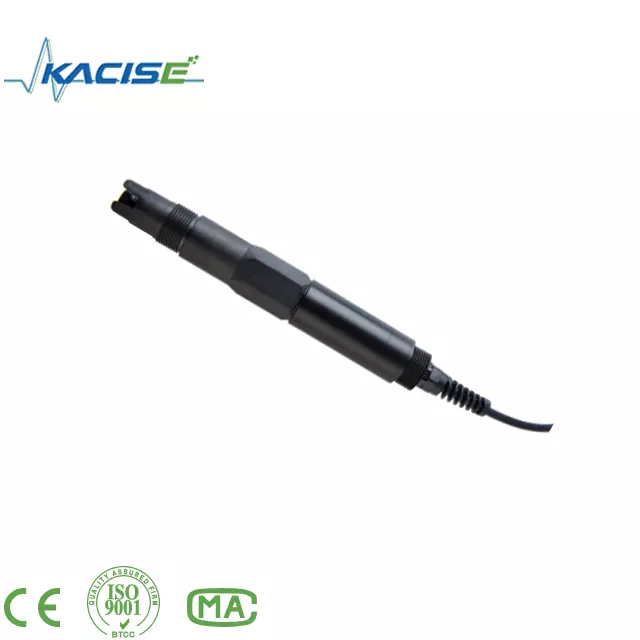

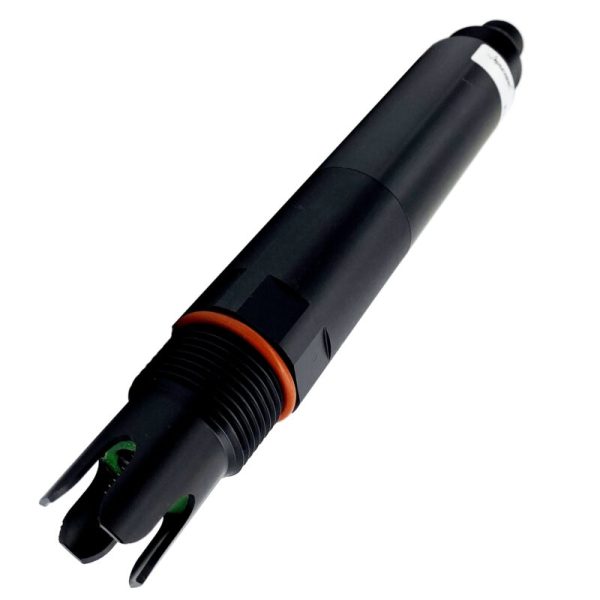

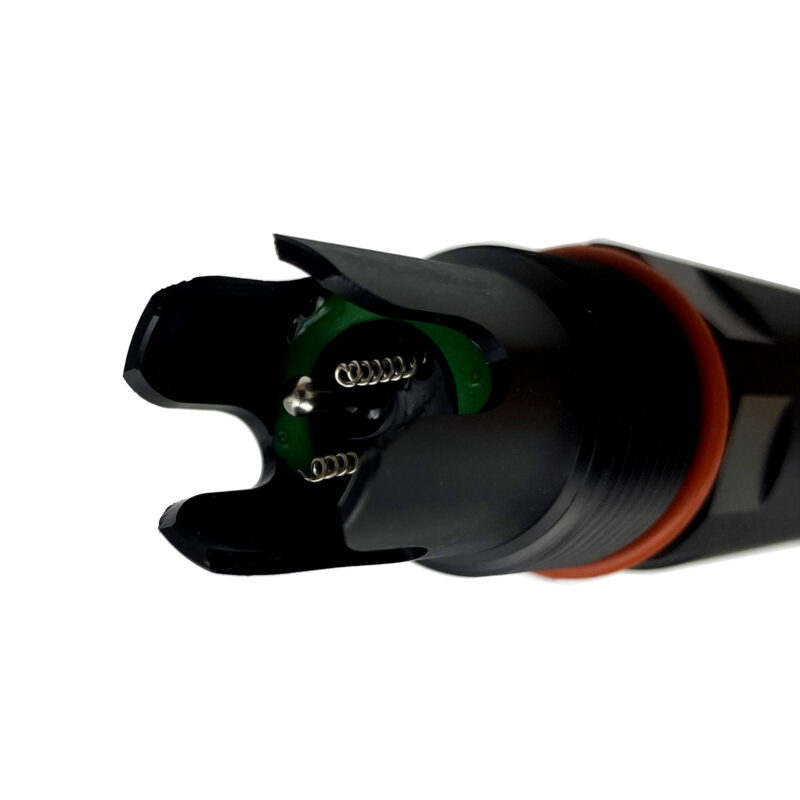

Online Residual Chlorine Sensor KWS3000

(0 reviews)

Get Price

(894) Views

(0) Contacts

$500.00 - $700.00/1 Piece/Pieces(Min. order)

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(5026) Views

(12) Contacts

                                                            Model
                                                            KWS3000

                                                            Measuring Principle
                                                            Constant voltage method

                                                            IP Rating
                                                            IP68

                                                            Range Ability
                                                            0～2.000mg/L(HClO)

                                                            Source
                                                            12～24VDC±10%

                                                            Resolution Ratio
                                                            0.001mg/L

                                                            Precision
                                                            ±5% or ±0.05mg/L

                                                            Response Time
                                                            <30S

                                                            Calibration Function
                                                            Two-point calibration (zero and slope)

                                                            Velocity Of Flow
                                                            30～60L/h

                                                            Working Pressure
                                                            ＜0.1MPa

                                                            Ph Range Of The Medium
                                                            4～9 pH

                                                            Temp. Compensation
                                                            Automatic temperature compensation (Pt100)

                                                            Signal Output
                                                            RS-485 bus, Modbus/RTU protocol

                                                            Material
                                                            Polyformaldehyde resin, polytetrafluoroethylene, gold, silver, conductive rubber

                                                            Size
                                                            30×233mm

                                                            Working Temperature
                                                            5～50℃

                                                            Installation Mode
                                                            Circulation pool installation

It is used for continuous monitoring of residual chlorine content in aqueous solution in drinking water treatment plants, canning plants, drinking water distribution networks, swimming pools, cooling circulating water, water quality treatment engineering, and so on.
