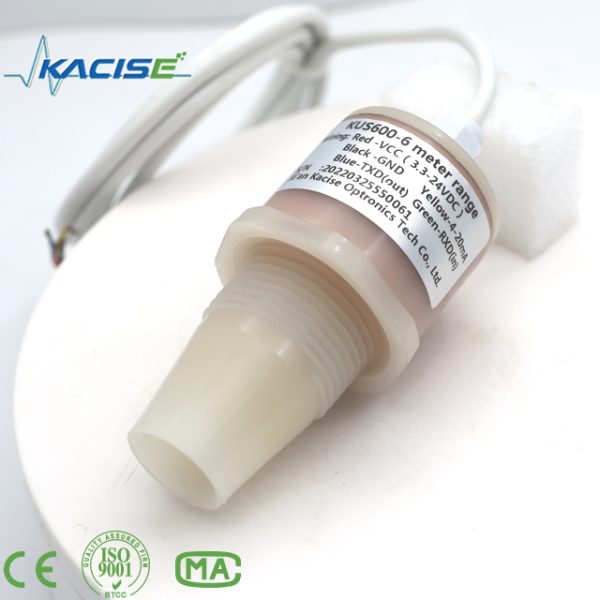

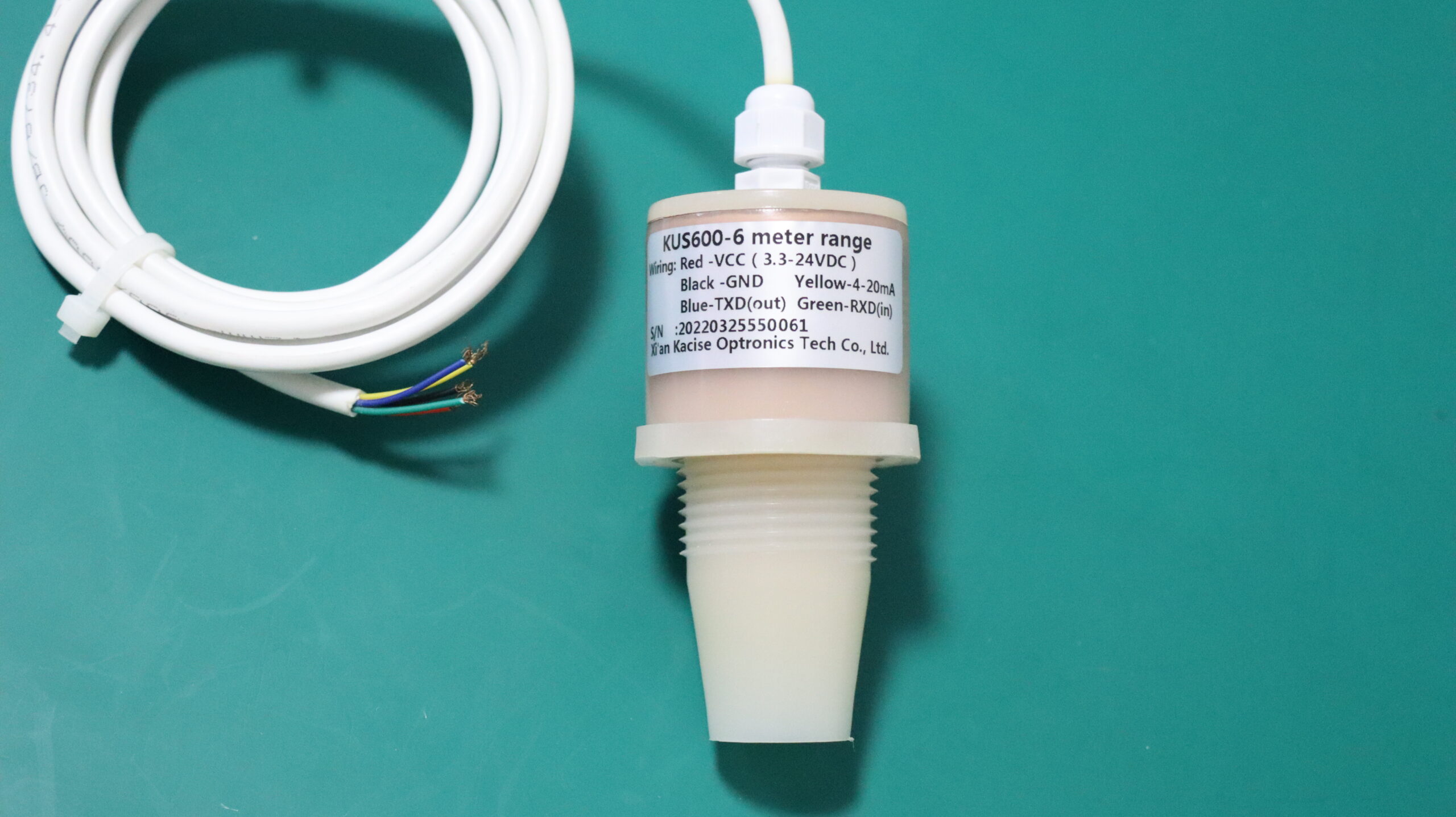

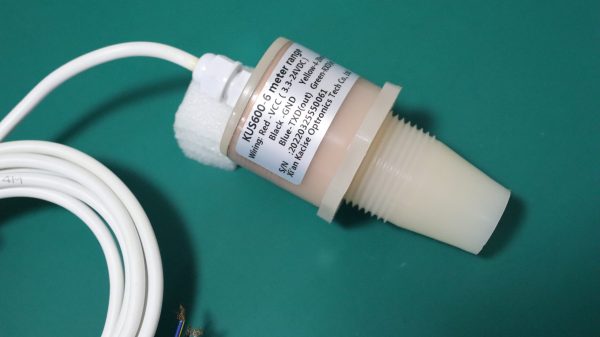

KUS600 Series Ultrasonic Level Distance Sensor

(0 reviews)

Get Price

(247) Views

(0) Contacts

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(706) Views

(10) Contacts

Electronic interface and signals definition

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Analog output	The 600B will work in mode 1 or 0 but cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analog output is used.
Blue	4	RS485A	TTL-TXD for ttl output signal
Green	5	RS485B-	TTL-RXD for ttl output signal

For switch output

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Switch output	Load current 1A@60V
White	4	Switch output	Load current 1A@60V
Brown	5	RS485A	TTL-TXD for ttl output signal
Green	6	RS485B-	TTL-RXD for ttl output signal

RS485B-

TTL-RXD

Ultrasonic level distance sensor Parameter

General specifications

600B
Sensing range	600… 5000 power supply. The measure distance can reach 6 meters if the power supply is 24V.
Adjustment range	300….5000mm
Unusable area	0 … 600 mm
Response delay	approx. 10 ms

Electrical specifications

Operating voltage UB	3.3 … 24 V DC, ripple 10 %SS
No-load supply current I0	≤ 20 mA active period and ≤0.3mA during sleep time

Description of ultrasonic level distance sensor Functions
The detail refers to the 600B software engineer application guide.
Installation conditions
If the sensor is installed in an environment temperature fall below 0℃, It should do well on the protective measures. In the case of direct mounting of the sensor in a through-the-hole using the steel nuts, it is to be fixed at the middle of the housing thread.
Ordering information

KUS	Body size	OUTPUT	Max range	Description
	600
	Customized	Customized
		SW	Switch Output （online configurable for NPN or PNP）
		mA	3-wire 4-20mA output
		10V	Output is Vout 0-10V
		5V	Output is Vout 0-5V The power supply range is 5.0 at least
		3.3V	Output is Vout 0-3.3V The power supply range is 3.3 at least
		RS485	Output is RS485
		TTL	UART TTL output
			XXX mm	Xxx mm is the maxim range that can be detected, the default length is 1 meter
KUS	600	RS485	5000mm
