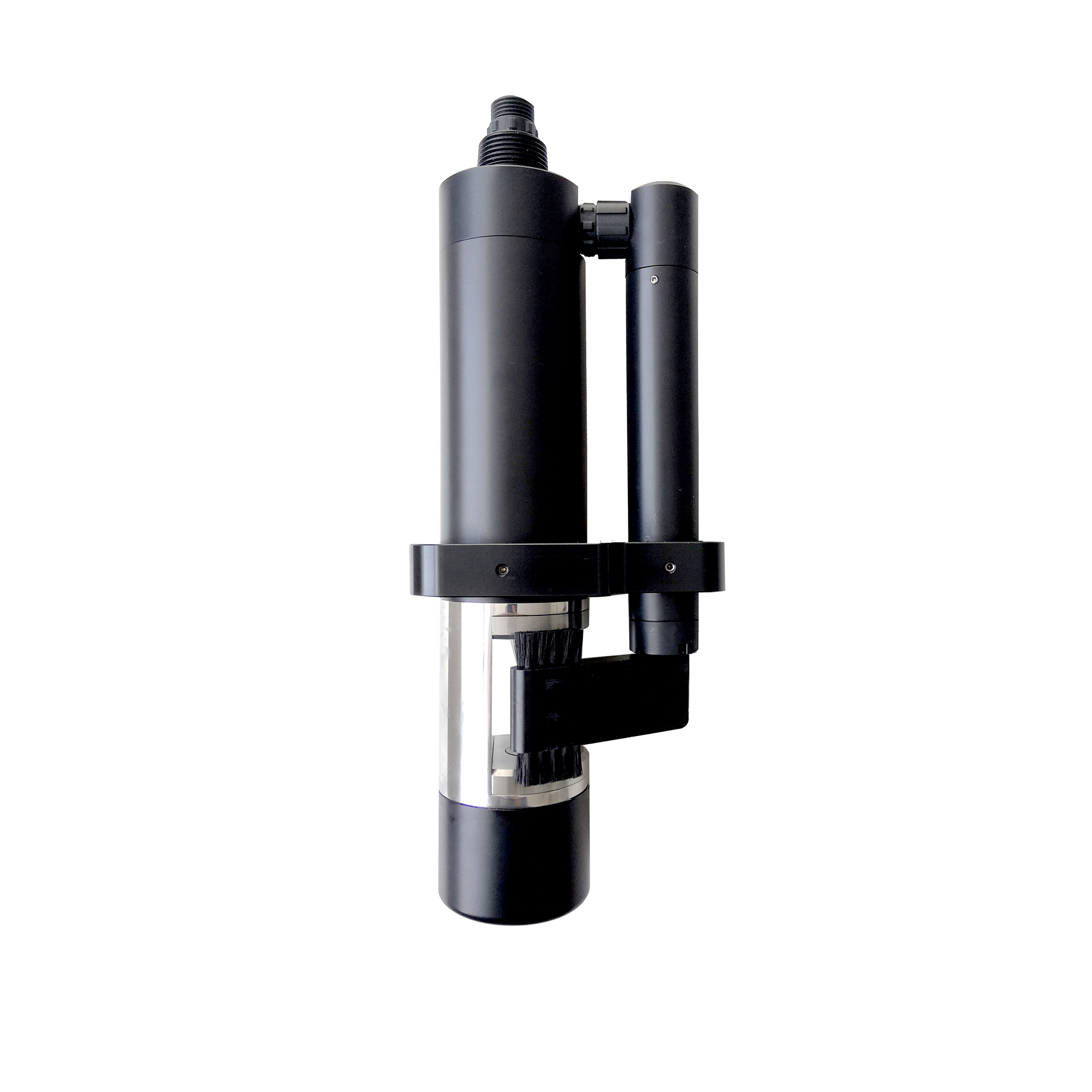

Many substances suspended in water can absorb or block visible light, which is manifested as a decrease in the transparency of water. Therefore, the transparency of water can be calculated by measuring the absorbance of a substance in water to light. The transparency sensor is designed according to this principle. When the transparency sensor is immersed in the liquid to be measured, it will read and measure the absorbance of the liquid to a specific wavelength beam, and then complete the measurement of the transparency data through specific curve fitting and calculation.

Pollution-free, economic, and environmental protection.
Small size, convenient installation, non-stop for online water quality monitoring.
Can measure the transparency and temperature parameters.

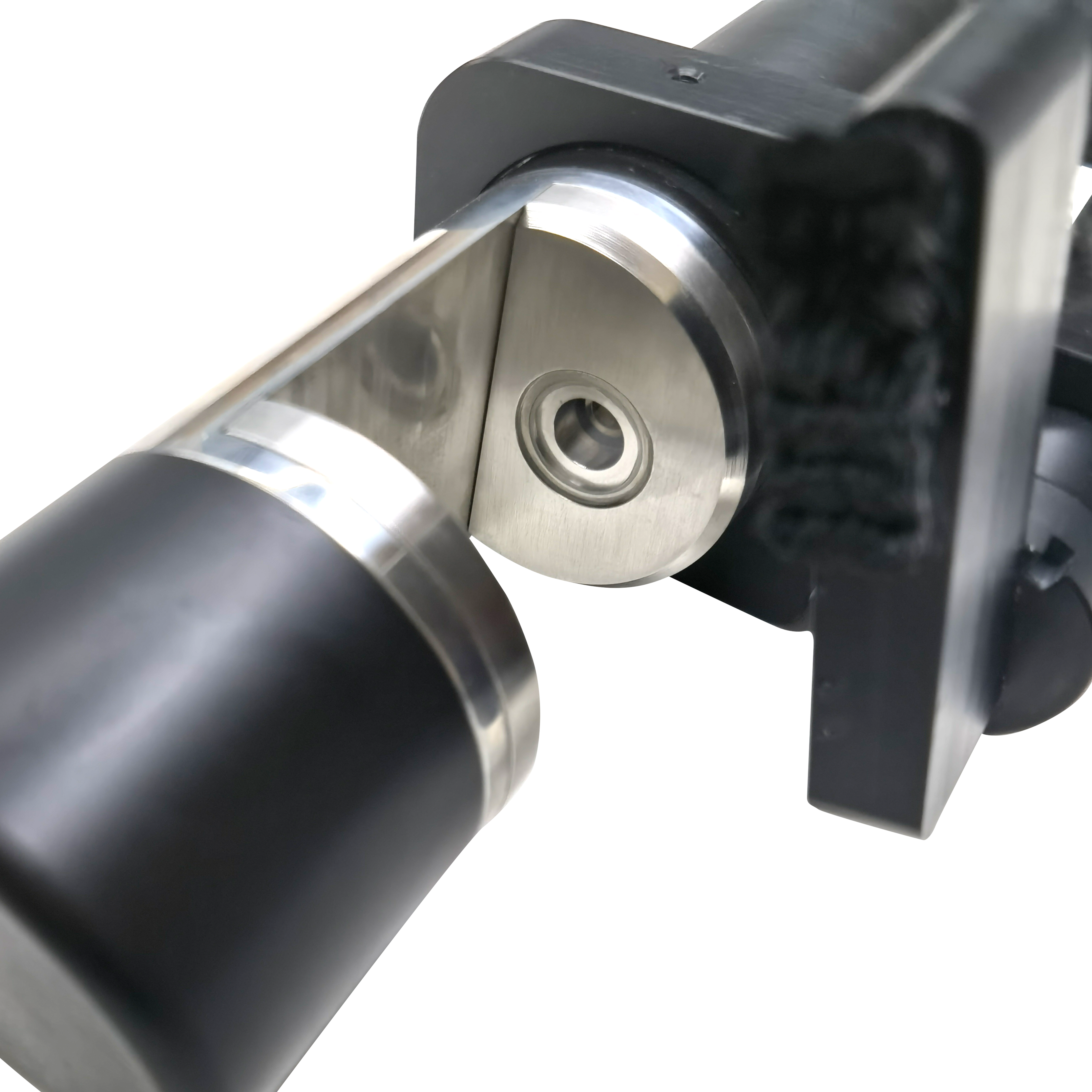

With cleaning, the brush can prevent impurities and microbial adhesion.
Drift is a small, fast reaction, a precise measurement.
Long-term monitoring data of drift small, stability is good.
Free maintenance, use cycle is long, use cost is low.
Digital signal output, the RS - 485 interfaces, Modbus/RTU protocol.
Low power design, anti-jamming design.

                                                            Model
                                                            TPS-206

                                                            Measuring principle
                                                            Visible absorption method

                                                            Sensor housing material
                                                            POM and 316L stainless steel

                                                            Cable length
                                                            5 meters, other lengths can be customized

                                                            Measuring range
                                                            50～2000mm

                                                            Precision
                                                            ±10% F.S./±0.5℃

                                                            Resolution
                                                            1mm/0.1℃

                                                            Installation method
                                                            Immersion installation

                                                            Calibration method
                                                            Two-point calibration

                                                            Output method
                                                            RS-485( Modbus/RTU protocol)

                                                            Protection level
                                                            IP68

                                                            Power supply
                                                            12～24VDC

                                                            Storage temperature
                                                            -5～65℃

                                                            Power consumption
                                                            0.3W@12VDC

                                                            Working conditions
                                                            0～45℃、<0.2MPa
