Description of the ultrasonic proximity sensor
The switch output type and analog output type of the ultrasonic proximity sensor can be programmed as the user want.
There are 8 types of output functions that can be programmed.
All the teaching routines are as follows, step 1 teaches one point with the related teaching in condition (High-level voltage or GND). step 2 chooses a different distance (not the same as step 1) point and a different teacher in condition (not same as step 1). The program routine must be finished during the blue led flashing; the default value will be efficient if it the not.

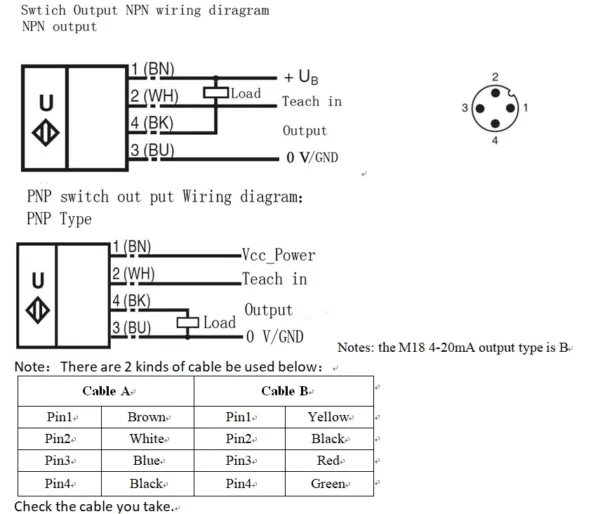

The ultrasonic proximity sensor features a switch output with two teachable switching points. These are set by applying the supply voltage – UB or + UB to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1 s. LEDs indicate whether the ultrasonic proximity sensor has recognized the target during the TEACH-IN procedure. Switching point A1 is taught with – UB, A2 with +UB. Five different output functions can be set.
1. Window mode normally opens and liner mode positive slope output function.
2. Window mode is normally closed and liner mode has a negative slope output function.
3. Single switching point, normally-open function.
4. Single switching point, normally-closed function.
5. Single switch point with hysteresis gap normally-open function.
6. Single switch point with hysteresis gap normally-closed function.
7. Detection of object presence-normal open function.
8. Detection of object presence-closed open function.
Switching point, Setting distance only after powering on. The internal clock can assure can’t be changed after 5 minutes after power on. If want to change the switching point, the user can only set the request distance after power restart.
