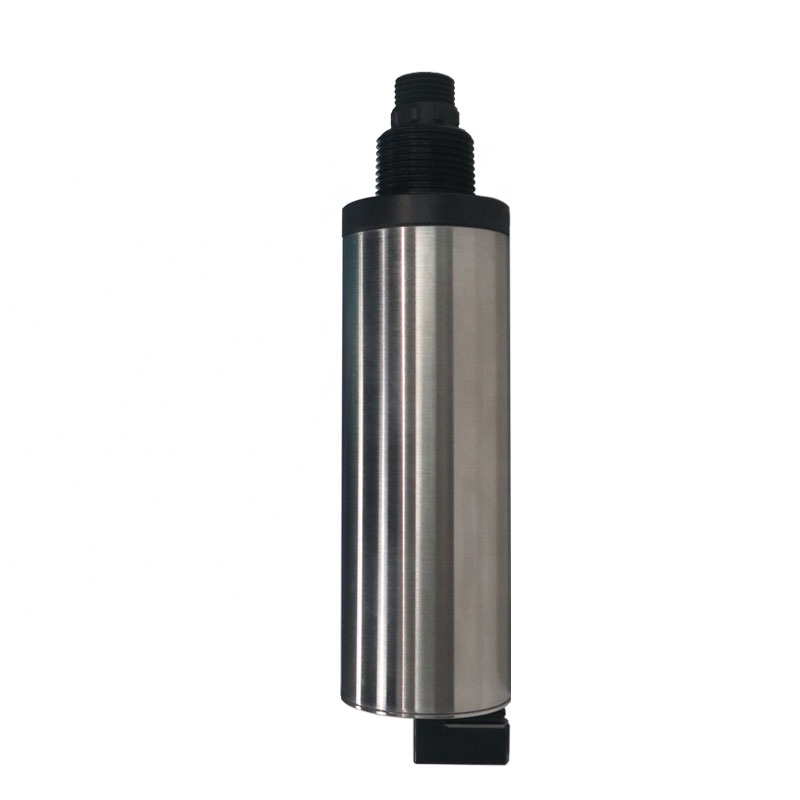

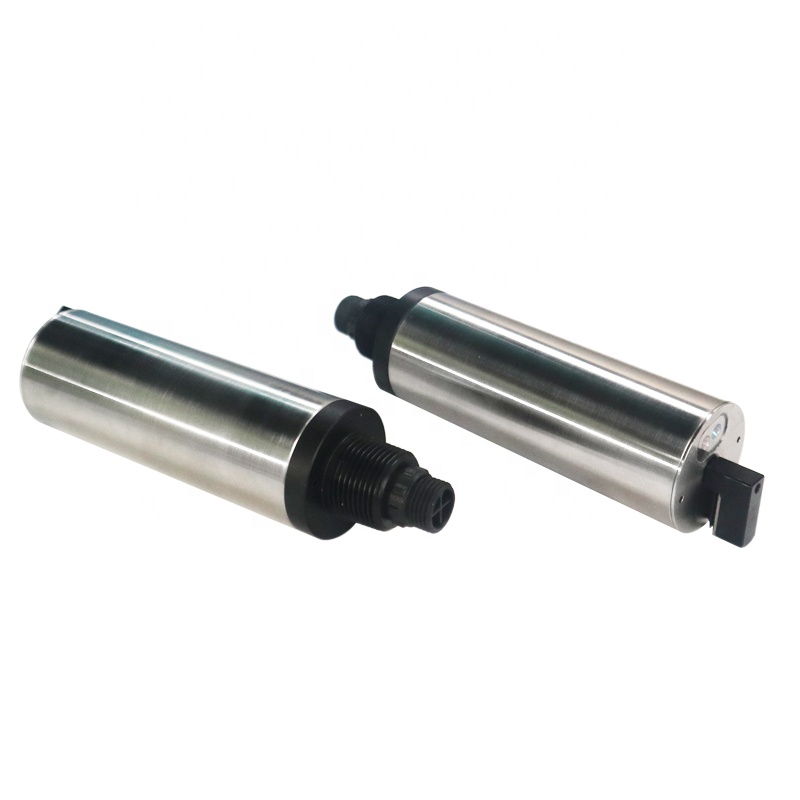

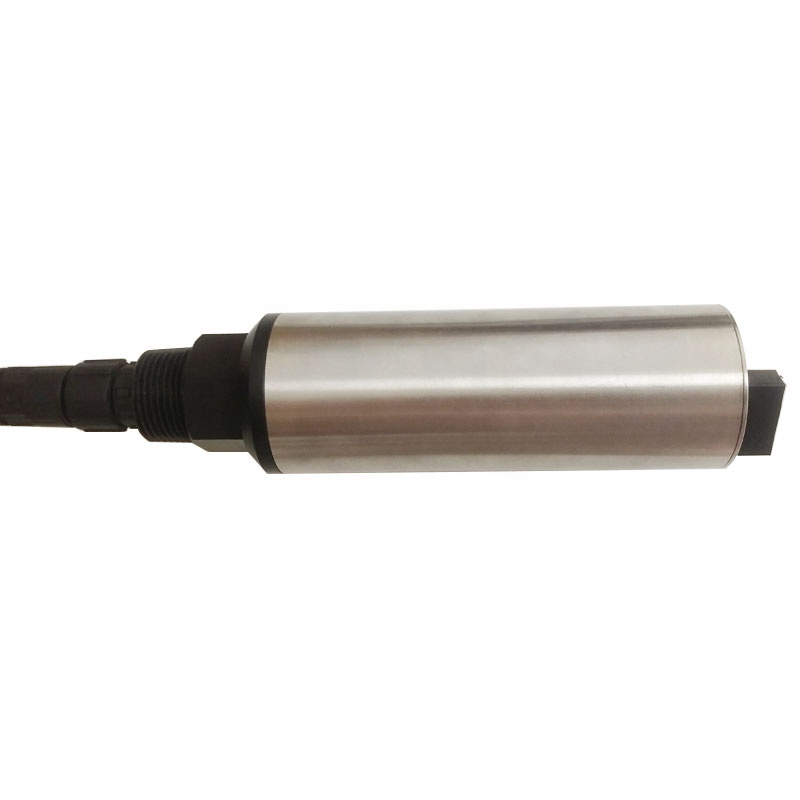

Online Oil In Water Sensor

(0 reviews)

828 USD

(789) Views

(0) Contacts

1 unit
$828.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(2776) Views

(9) Contacts

Commonly used oil-in-water detection methods include the suspension method (D/λ<=1), infrared spectrophotometry (not suitable for low range), and ultraviolet spectrophotometry (not suitable for high range). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored online in real time. The sensor has better repeatability and stability. The self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warning role in oil pollution in water.
Principle

The oil content in the water was monitored by the ultraviolet fluorescence method, and the concentration of oil in the water was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in petroleum can generate fluorescence under the excitation of ultraviolet light, and calculate the value of oil in water according to the intensity of fluorescence.

Technical parameter

Product	Oil in water sensor	Self-cleaning oil in water sensor
model	DS530-A	DS530-B
principle	Ultraviolet fluorescence method
Range	0-50ppm or 0-0.40FLU
Precision	3%
Resolution	0.1ppm
The detection limit	According to the actual oil sample
Linearity	R2>0.999
Protection level	Ip68
Sensor interface	Support RS-485, MODBUS protocol
assembly	Input type
Power information	DC 5~12V, current <50mA (when not cleaned)
size	Φ45*175.8 mm
Probe cable length	10 meters (default), can be customized
Housing material	316L (customizable titanium alloy)
Self-cleaning Brush	no		Have

                                                            Principle
                                                            Ultraviolet fluorescence method

                                                            Linearity
                                                            R2>0.999

                                                            Range
                                                            0~50ppm or 0~5000ppb

                                                            The detection limit
                                                            According to the actual oil sample

                                                            Precision
                                                            3%

                                                            Resolution
                                                            0.1ppm or 0.1ppb

                                                            Protection level
                                                            IP68

                                                            Sensor interface
                                                            RS-485, MODBUS protocol

Oil quality monitoring
Industrial circulating water
Condensate
Wastewater treatment
Surface water stations
Other water quality monitoring scenarios.

Digital sensor, RS-485 output, support MODBUS
With automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques
Unaffected by suspended solids in water
