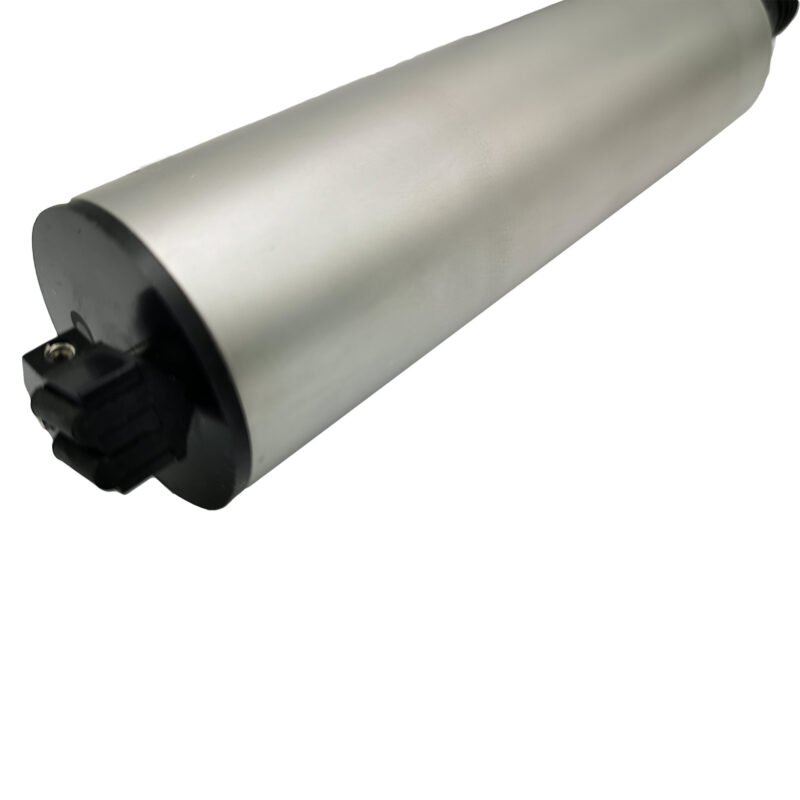

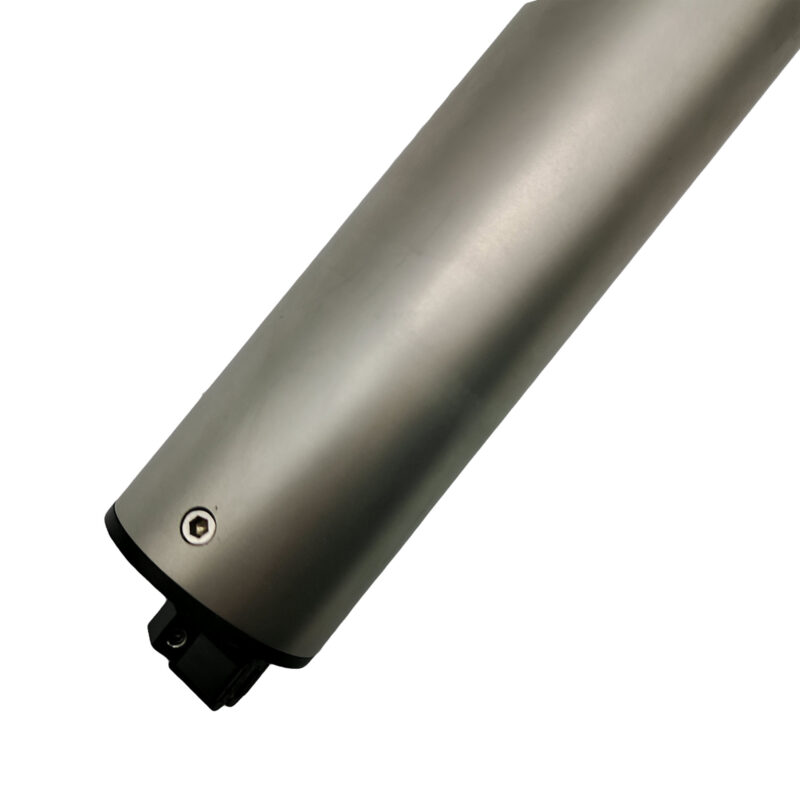

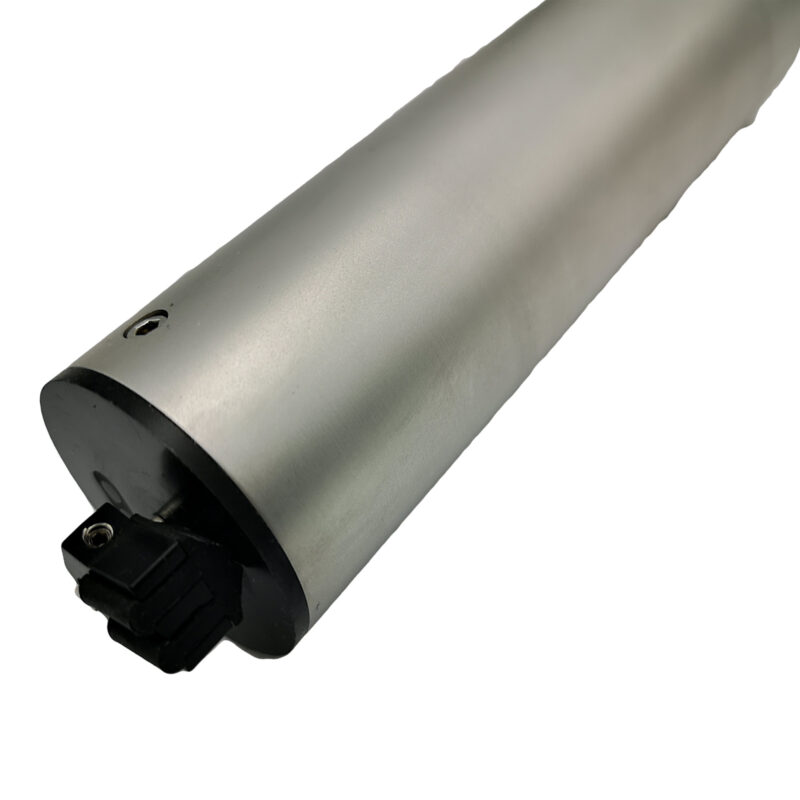

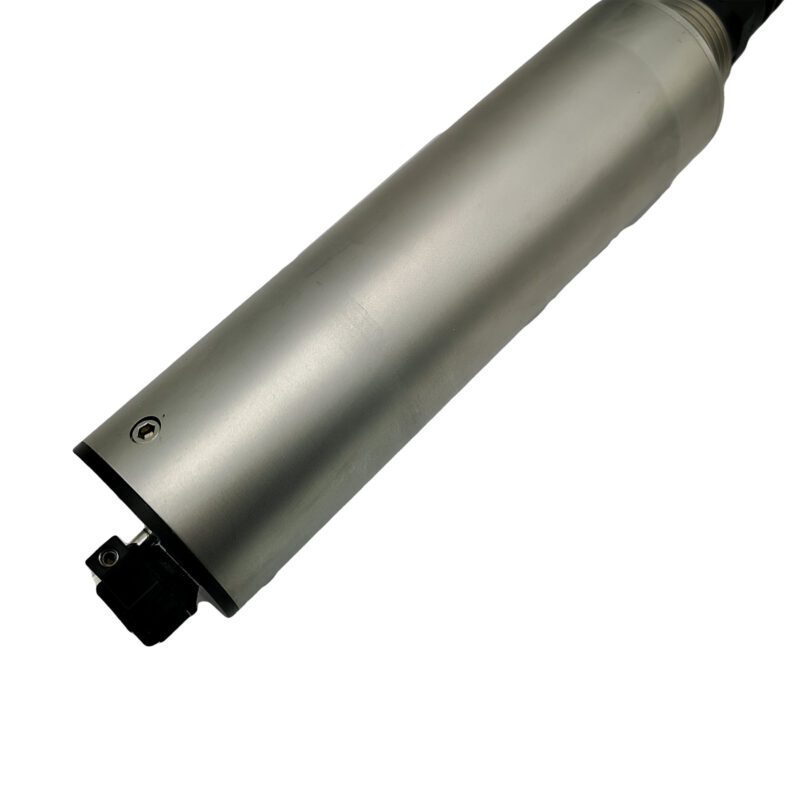

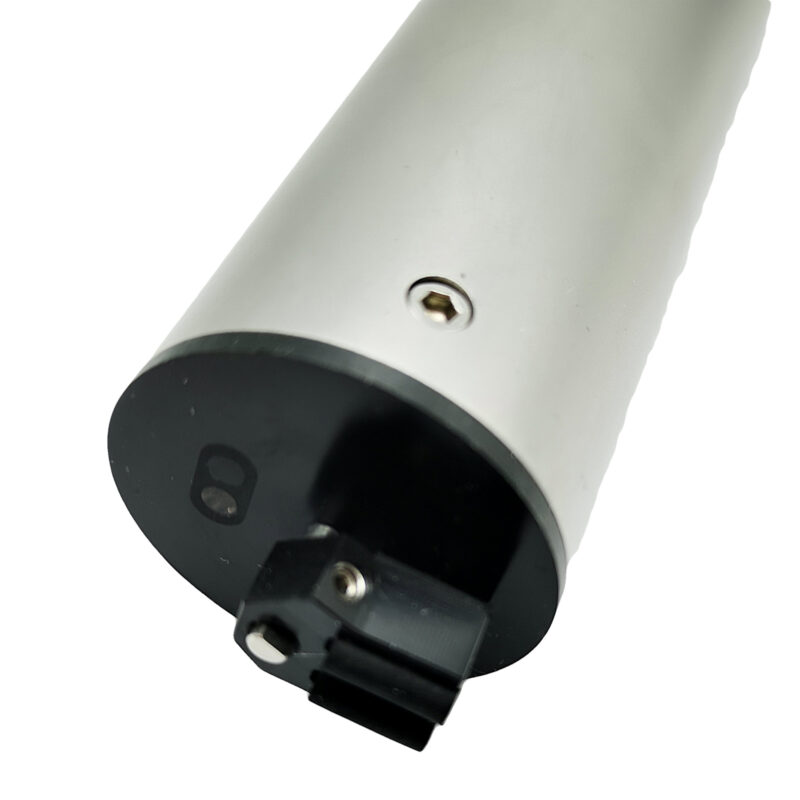

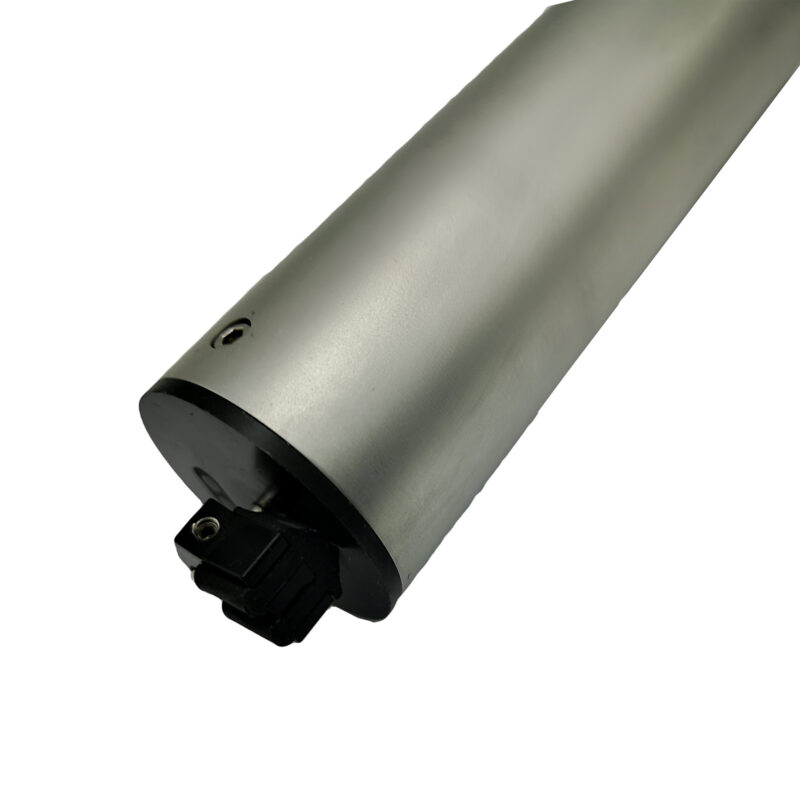

KTU300 Online Turbidity Analyzer

(0 reviews)

(143) Views

(0) Contacts

KTU300 online turbidity analyzer is an online water quality analyzer based on OSA optical water quality analysis platform.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(747) Views

(10) Contacts

KTU300 online turbidity analyzer is an online water quality analyzer based on OSA optical water quality analysis platform. Integrated design, using ISO7027 standard method, digital, intelligent analyzer design concept, can automatically compensate for voltage fluctuations, device aging, and temperature changes on the impact of measured values. RS485 signal output, easy networking, and system integration are widely used in surface water, pollution sources, and other industries.

                                                            Model number
                                                            KTU300

                                                            Measurement parameter
                                                            Turbidity, temperature

                                                            Method of measurement
                                                            Infrared scattering method

                                                            Contour dimension
                                                            160 mm × φ40 mm

                                                            Measurement mode
                                                            Immersion measurement

                                                            Material Quality
                                                            Stainless steel, POM

                                                            Weight
                                                            0.5 kg

                                                            Measuring range
                                                            Turbidity: (0 ~ 100/500/2000/4000) NTU Temperature: (0 ~ 60) °C

                                                            Accuracy
                                                            ≤ ± 2%

                                                            Repeatability
                                                            ≤1%

                                                            Resolution
                                                            0.01 NTU

                                                            Detection limit
                                                            0.05 NTU

                                                            Response time
                                                            ≤5s

                                                            Zero Drift (24h)
                                                            ≤ ± 3% F.S.

                                                            Range Drift (24h)
                                                            ≤ ± 3% F.S.

                                                            Calibration period
                                                            Six months

                                                            Temperature range
                                                            (0 ~ 60) °C

                                                            Power consumption
                                                            < 1W (in non-cleaning mode)

                                                            Protection level
                                                            IP68

                                                            Supply voltage
                                                            (12/24) V DC

                                                            Cleaning mode
                                                            Automatic cleaning of mechanical brush

                                                            MTBF
                                                            ≥1440h/Time

                                                            Means of communication
                                                            RS485(Modbus RTU), maximum baud rate 115200 bps

Surface water
Pollution sources
Other industries.

Characteristics of a turbidity analyzer

Integrated design, anti-electromagnetic interference
High-brightness infrared LED is used as a light source to eliminate the influence of sample color
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement
Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
