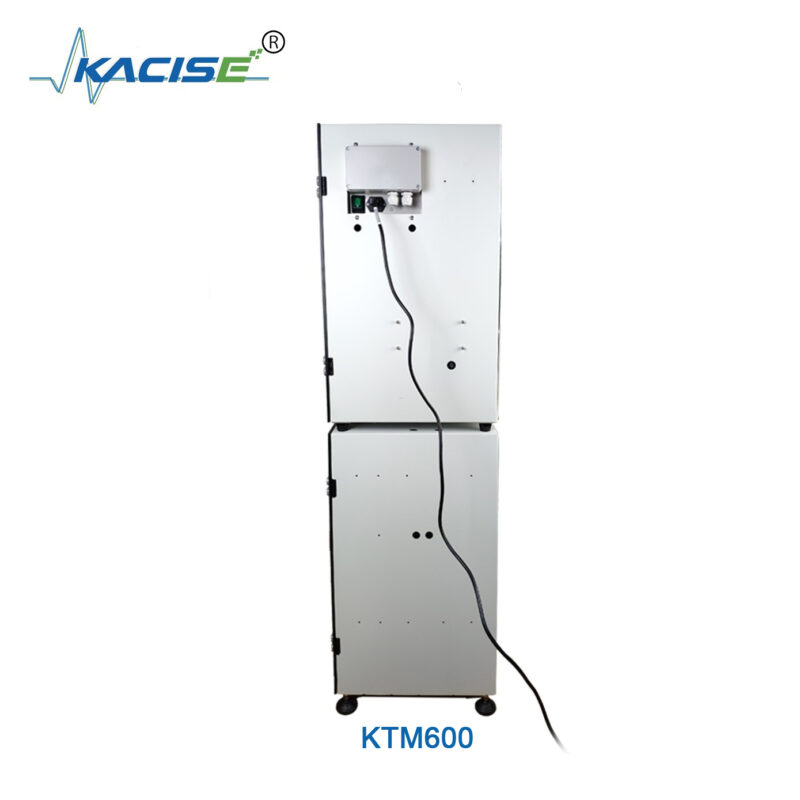

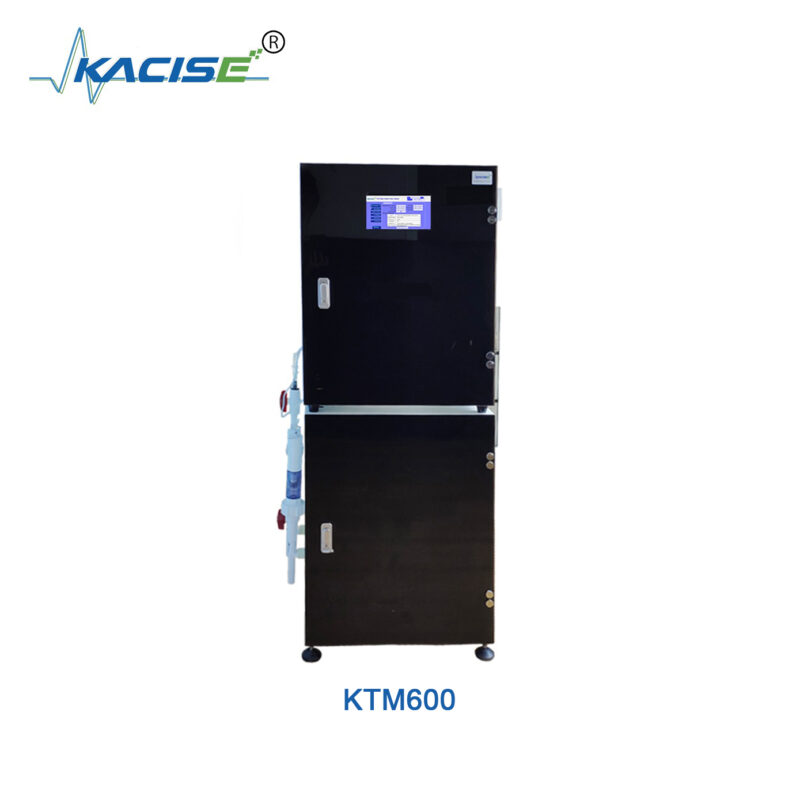

Online Total Manganese Analyzer KTM600

(0 reviews)

(344) Views

(0) Contacts

Online Total Manganese Analyzer KTM600 is water quality monitoring equipment. Which is used to monitor the total content of Manganese in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(3852) Views

(10) Contacts

Principle of Total Manganese Analyzer
Manganese exists in water, which is more harmful to drinking water than iron. Water with too much manganese can contaminate the wash and give it a foul smell. Manganese also contaminates the Ion-exchange resin and causes fouling on the heating surfaces of boilers. Manganese is not easy to be oxidized in water, so it is difficult to be removed in the purification process.
Principle: the water sample reacts with the reductive reagent, reducing all forms of manganese in the water sample to divalent manganese ions, then adjusting the PH value of the solution, finally adding the characteristic chromogenic reagent to react to form the brown complex, the absorbance of the complex is proportional to the total manganese concentration in the water sample, and the total manganese content in the water sample can be obtained by measuring the absorbance of the complex.
It is suitable for laboratory analyzers or industrial production process water, sewage, urban domestic sewage, river, lake, sea, and other surface water testing.

                                                            Model
                                                            KTM600

                                                            Monitoring Factor
                                                            Total manganese

                                                            Method
                                                            Formaldoxime Spectrophotometer

                                                            Stored data
                                                            Five years of data storage

                                                            Range
                                                            (0.02-80) mg/L expandable

                                                            Accuracy
                                                            ± 5%

                                                            MBTF
                                                            > 720 hours

                                                            Measurement mode
                                                            Manual  measurement,     continuous    measurement,       periodic measurement, fixed-point measurement, automatic calibration measurement, standard solution verification

                                                            Repeatability
                                                            ≤5%

                                                            Measurement period
                                                            30 minutes to 24 hours, with adjustable expansion

                                                            Range Drift
                                                            ± 5% F. S

                                                            Zero Drift
                                                            ± 5% F. S

                                                            Communication interface
                                                            4-20mA, RS232, RS485, dry contact

                                                            Contour Dimension
                                                            505 * 395 * 671(mm)
