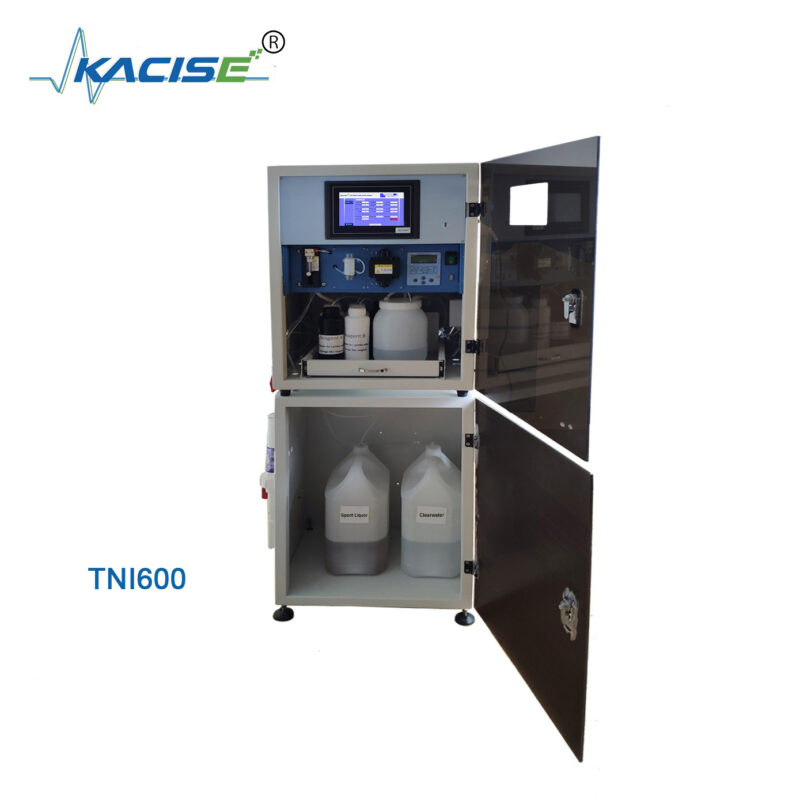

Online Total Nickel Analyzer TNI600

(0 reviews)

(134) Views

(0) Contacts

Online Total Nickel Analyzer TNI600 is water quality monitoring equipment. Which is used to monitor the total content of Nickel in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(747) Views

(10) Contacts

Principle and Application of Total Nickel Analyzer
Nickel is carcinogenic and toxic to aquatic organisms. The main industrial pollution source of nickel is waste water and residue from mining, smelting, and electroplating.
Principle: under the condition of high temperature, using nitric acid to digest, adding a masking agent to cover interfering ions, oxidize nickel ions to nickel tetravalent through oxidizer, react with a chromogenic agent in strong alkali medium to form wine red complex, and measure the absorbance of the complex, the content of total nickel in water sample was obtained.

                                                            Model
                                                            TNI600

                                                            Contour Dimension
                                                            505 * 395 * 671(length * width * height unit mm)

                                                            Monitoring Parameter
                                                            TNI

                                                            Power Requirements
                                                            Rated voltage (220 ± 22) VAC frequency (50 ± 1) % Hz

                                                            Method
                                                            Dimethylglyoxime Spectrophotometer

                                                            Range
                                                            (0.02-40) mg/L expandable

                                                            Ambient Humidity
                                                            (65 ± 20) % Rh

                                                            Display unit
                                                            12232 dot matrix display, 7-inch LCD touch screen dual display

                                                            Measurement mode
                                                            Manual  measurement,     continuous    measurement,            periodic measurement,      fixed-point     measurement       and automatic calibration measurement Sample check

                                                            Measurement period
                                                            Anywhere from 30 minutes to 24 hours

                                                            Ambient Temperature
                                                            (5-35)℃

                                                            Zero Drift
                                                            ≤ ± 5% F. S

                                                            Range Drift
                                                            ≤ ± 5% F. S

                                                            Communication interface
                                                            2 Route 4-20ma,1 Route RS232, 1 Route RS485

                                                            Repeatability
                                                            ≤5%

                                                            Indication error
                                                            ≤ ± 5%

                                                            MBTF
                                                            > 720 hours

                                                            Stored data
                                                            Five years of data storage

Monitoring of enterprise rainwater and sewage
Monitoring of the total copper content in the municipal pipe network, pumping stations, groundwater, river water, lake water, and seawater.
