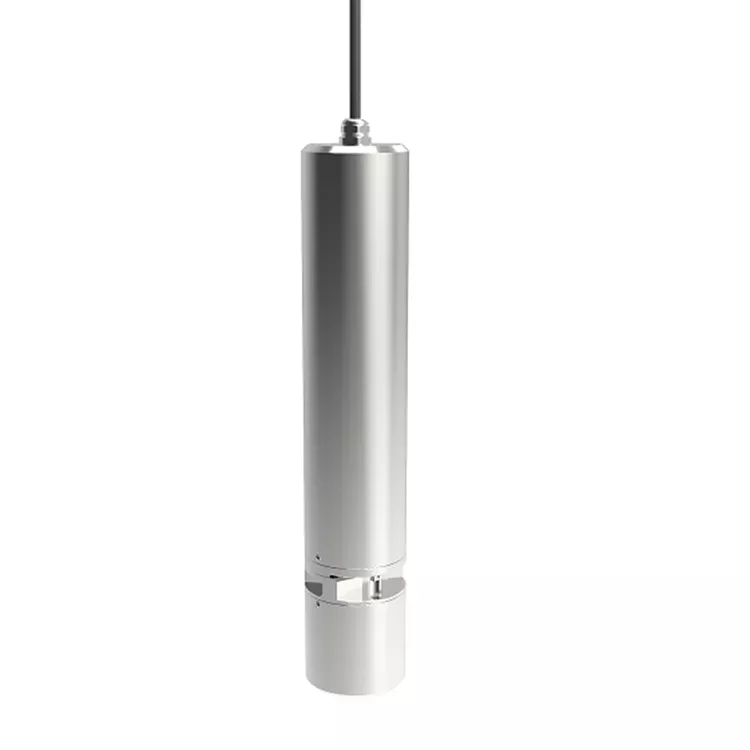

Online Analyzer Nitrate NO3 Water Testing Nitrate Sensor Electrode

(0 reviews)

Get Price

(165) Views

(0) Contacts

Online Analyzer Nitrate NO3 Water Testing Nitrate Sensor Electrode for water testing

$4,299.00 - $9,999.00/ 1 piece/pieces

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(640) Views

(3) Contacts

                                                            Model
                                                            PUVNO3-900

                                                            Brand
                                                            PROBEST

                                                            Measuring Range
                                                            0.1～40.0mg/L  ( 2mm )

                                                            Accuracy
                                                            ±5%

                                                            Repeatability
                                                            ± 2%

                                                            Resolution
                                                            0.01 mg/L

                                                            Pressure range
                                                            ≤0.4Mpa

                                                            Sensor material
                                                            Body：SUS316L（fresh water），Titanium alloy（Ocean marine）；Cable：PUR

                                                            Calibration
                                                            Standard calibration

                                                            Power Supply
                                                            AC：85-500VAC   (50/60HZ)  DC：9~36VDC

                                                            Output
                                                            3-way 4-20mA

                                                            Relay
                                                            Three-way relays, programmed response parameter and response   value.

                                                            Communication protocol
                                                            MODBUS  RS485

                                                            Storage temperature
                                                            -15-50℃

                                                            Measuring temperature
                                                            0-45℃（Non-freezing）

                                                            Dimensions
                                                            Sensor：Diam69mm*Length   380mm   Transmitter：145*125*162mm(L*W*H)

                                                            Weight
                                                            Sensor：3.2KG；Transmitter：1.35KG

                                                            Protective rate
                                                            Sensor：IP68/NEMA6P；Transmitter：IP65/ NEMA4X

                                                            Cable length
                                                            Standard:10M,the maximum may be extended to 100m

                                                            Suggested Backup spare parts
                                                            PGP-UVNO3 :  UVNO3 Sensor   Scraper

Drinking water/surface water / industrial production process water/sewage treatment, etc.,
Continuously monitor the concentration of nitrate dissolved in water, especially for monitoring sewage aeration tanks, controlling the denitrification process

Spectrometer NO3 Probe direct immersion measurement without sampling and pre-processing;
No chemical reagents, no secondary pollution;
Short response time enables continuous measurement;
The sensor has an automatic cleaning function that reduces maintenance.
Sensor power supply positive and negative reverse connection protection
Sensor RS485 A/B terminal is connected to the power supply protection
Wireless data transmission module for optional
