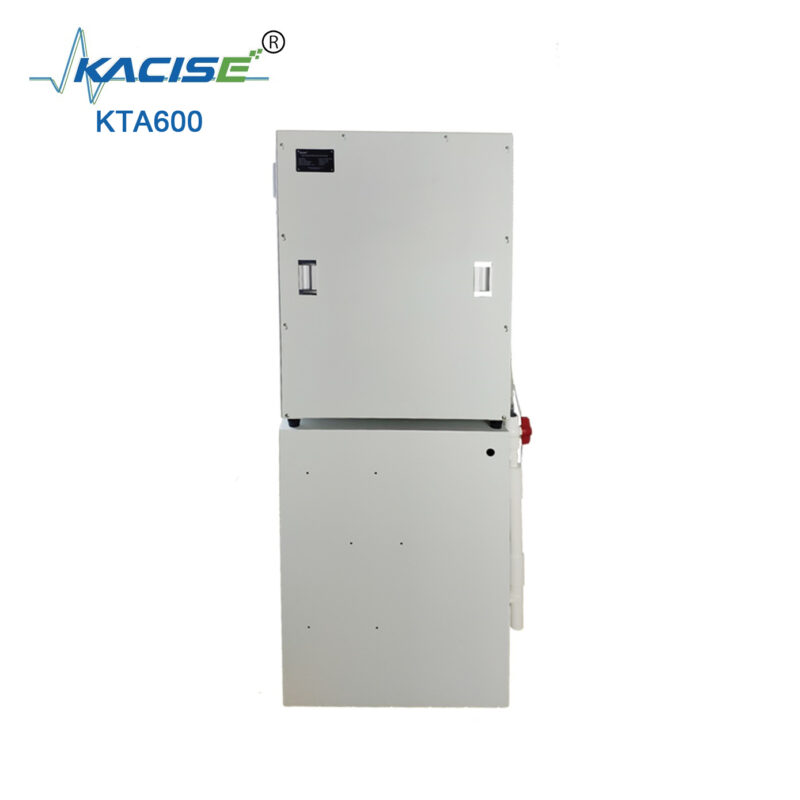

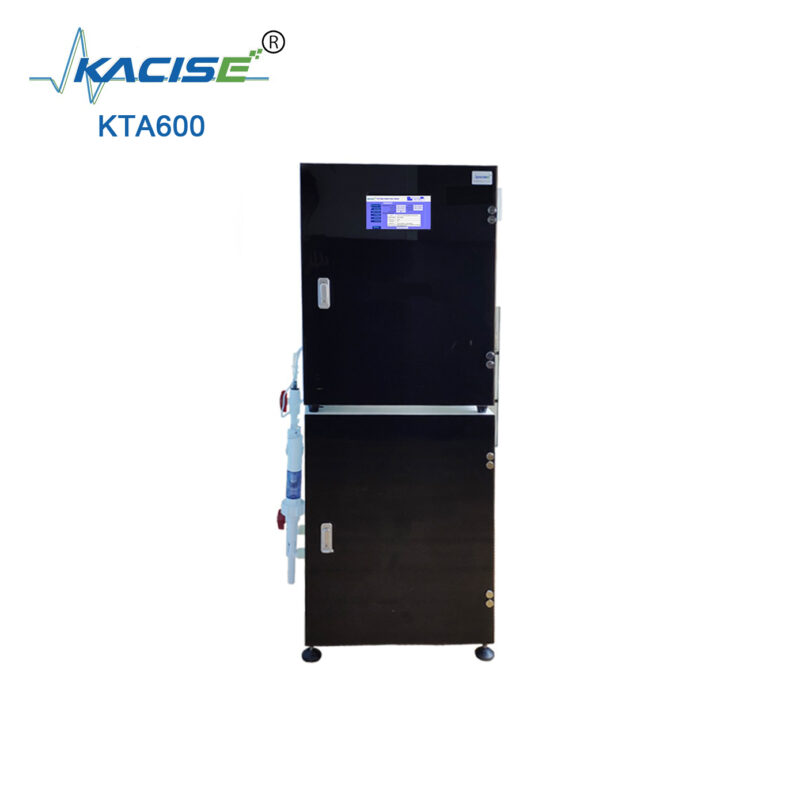

Online Total Aluminum Analyzer KTA600 is a water quality monitoring equipment. Which is used to monitor the total content of Aluminum in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(3821) Views

(10) Contacts

Principle of Total Aluminium Analyzer

Once in the body, aluminum salts are deposited first in the brain, which can lead to brain damage and severe memory loss, a characteristic symptom of Alzheimer’s disease. Aluminum is a serious poison to the human body and also has a toxic effect on living things. Soluble aluminum compounds are toxic to most plants. Soluble aluminum compounds in water in acidic soils make it difficult for ordinary crops to grow normally.

Principle: in buffer solution, in the presence of OP emulsifier and CPB, aluminum reacts with chrome azurol s to form blue-green micelles. The blue-green micelle is proportional to the concentration of aluminum, and the content of aluminum in the water sample can be calculated by measuring its absorbance.

                                                            Model
                                                            KTA600

                                                            Monitoring Parameter
                                                            AI

                                                            Contour Dimension
                                                            505 * 395 * 671(mm)

                                                            Method
                                                            Chrome Azurol Spectrophotometer

                                                            Communication interface
                                                            4-20mA, RS232, RS485, dry contact

                                                            Range
                                                            (0.05-80) mg/L expandable

                                                            Stored data
                                                            Five years of data storage

                                                            Display unit
                                                            12232 dot matrix display, 7-inch LCD touch screen dual display

                                                            Accuracy
                                                            ± 5%

                                                            MBTF
                                                            > 720 hours

                                                            Range Drift
                                                            ± 5% F. S

                                                            Measurement Mode
                                                            Manual  measurement,     continuous    measurement,       periodic measurement, fixed-point measurement, automatic calibration measurement, standard solution verification

                                                            Zero Drift
                                                            ± 5% F. S

                                                            Repeatability
                                                            ≤5%

                                                            Measurement period
                                                            30 minutes to 24 hours, with adjustable expansion

Monitoring of enterprise rainwater and sewage
Monitoring of total copper content in the municipal pipe network, pumping station, groundwater, river water, lake water, and seawater.
