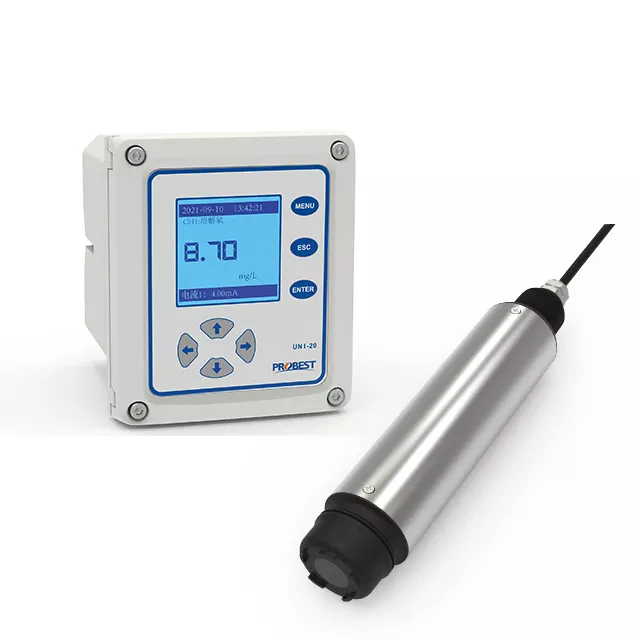

The probes are waterproof and can be submerged completely, which makes them ideally suited for e. g. environmental research applications, aquaculture, and measurement in sewage. DO-700 China in Line RS485 Industrial Dissolved Oxygen Water Sensor Manufacturer adopts fluorescence method to measure dissolved oxygen. The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.

                                                            Model
                                                            PFDO-700

                                                            Brand
                                                            PROBEST

                                                            Code
                                                            90268090

                                                            Measurement   range
                                                            DO：0-20   mg/L or 0-200% saturation；Temperature：0-45℃

                                                            Cable   length
                                                            Standard:10m,   the maximum may be extended to 100m

                                                            Measurement   Accuracy
                                                            DO:±3%   or ±0.3 mg/L, whichever is greater ； Temperature：±0.5℃

                                                            Protective   rate
                                                            Sensor：IP68/NEMA6P；Transmitter：IP65/   NEMA4X

                                                            Pressure   range
                                                            ≤0.3Mpa

                                                            Calibration  Air
                                                            automated calibration,sample calibration

                                                            Weight
                                                            Sensor：1.4KG；Transmitter：1.35KG

                                                            Main   material
                                                            Body：SUS316L（fresh   water），Titanium alloy（Ocean marine）；Cover：PPS+ glass fiber；Cable：PUR

                                                            Power   supply
                                                            AC：85-500VAC   (50/60HZ)  DC：9~36VDC

                                                            Output
                                                            3-way   4-20mA

                                                            Relay
                                                            Three-way   relays, programmed response parameter and response value.

                                                            Dimensions
                                                            Sensor：Dia49.5mm*L   251.5mm  Transmitter：145*125*162mm(L*W*H)

                                                            Communication   protocol
                                                            MODBUS  RS485

                                                            Measuring   temperature
                                                            0-45℃（Non-freezing）

                                                            Storage   temperature
                                                            -15-60℃

DO online monitoring of different technological processes such as regulating reservoir, biochemical pool, and effluent of the sewage treatment plant.
DO online monitoring of water plants, surface water, industrial process water and aquaculture and etc.

Won't produce oxygen consumption when measuring and no requirement for flow rate and stirring.
Factory calibration does not need calibration for a year and can carry out field calibration.
Digital sensor, high anti-jamming capacity, and far transmission distance.
