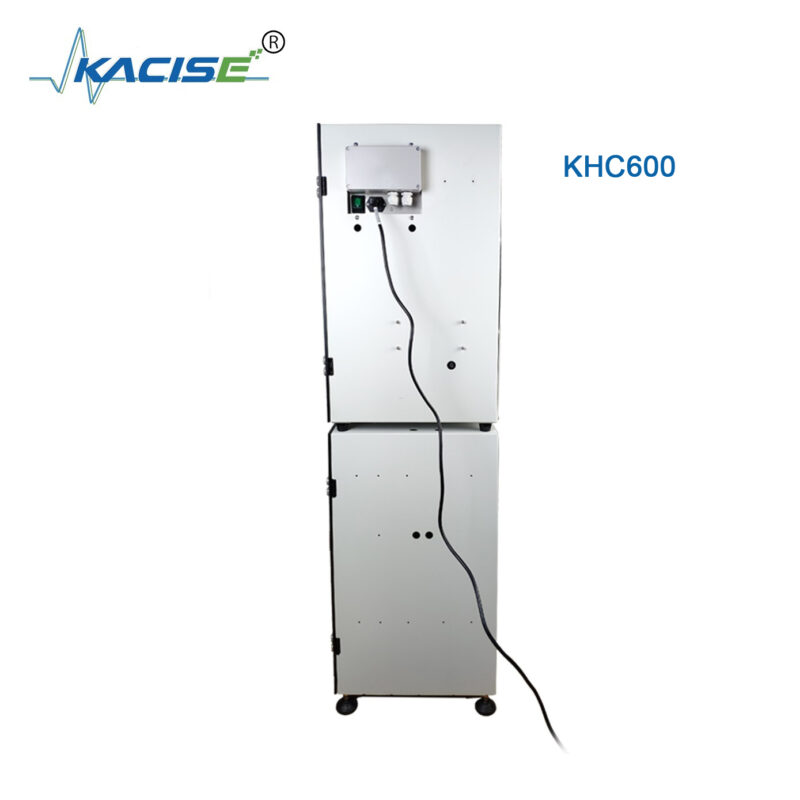

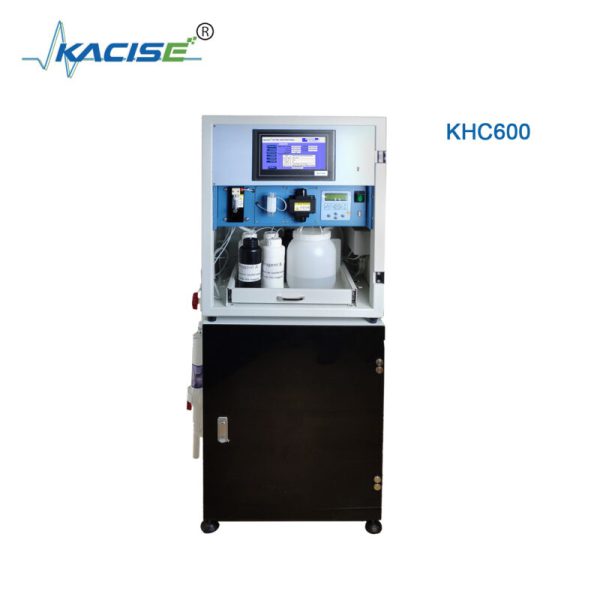

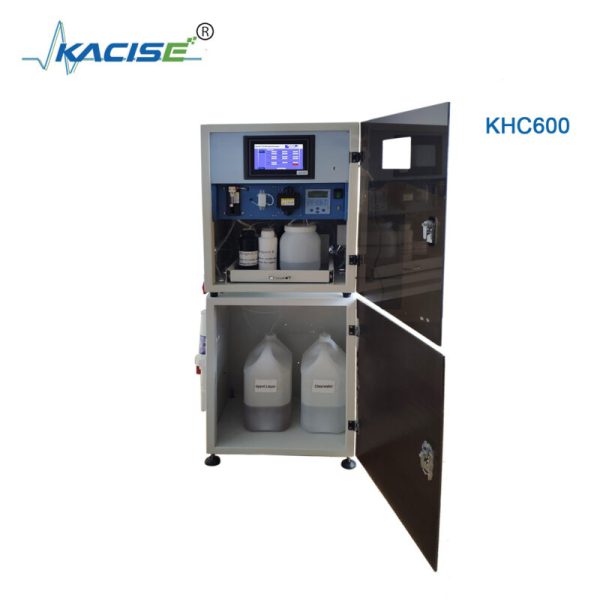

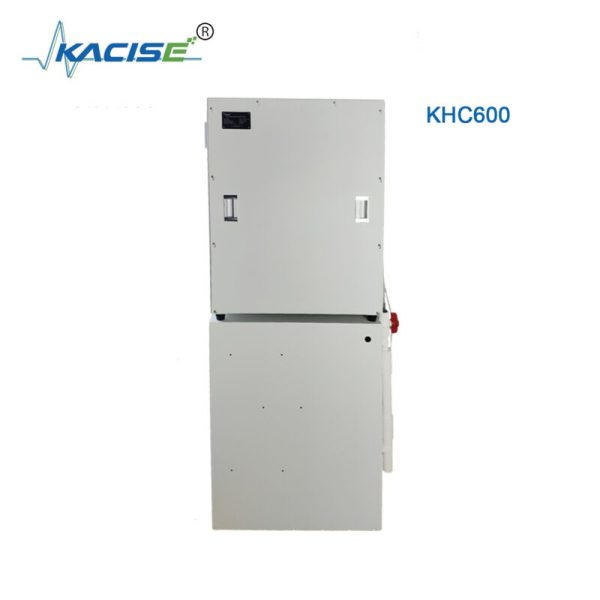

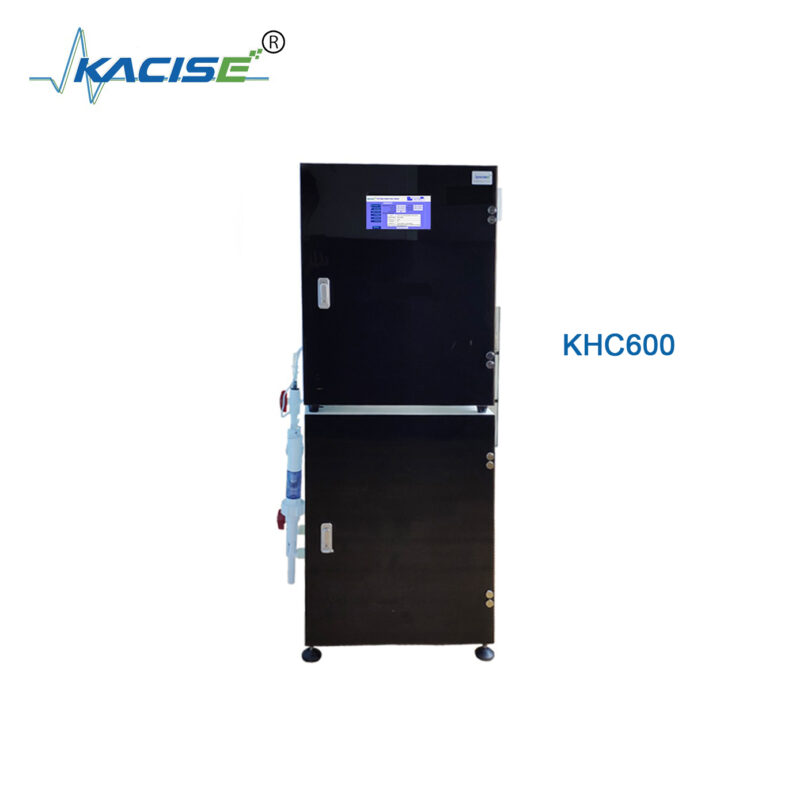

Online Hexavalent Chromium Analyzer KHC600

(0 reviews)

(62) Views

(0) Contacts

Online Hexavalent Chromium Analyzer KHC600 is water quality monitoring equipment. Which is used to monitor the content of Hexavalent Chromium in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(706) Views

(10) Contacts

Principle of hexavalent chromium Analyzer
Chromium is one of the essential micronutrients of living things. The toxicity of chromium is related to its valence state. It is generally believed that the toxicity of hexavalent chromium is 100 times higher than that of trivalent chromium. Therefore, hexavalent chromium has been defined as one of the indicators of total quantity control in China.
Principle: under the condition of high temperature, the oxidant oxidizes the chromium compound in the water sample to hexavalent chromium. In an acid medium, hexavalent chromium reacts with the chromogenic agents to form a purple-red complex. The absorbance of the complex is proportional to the chromium content in the water sample, the content of total chromium in the water sample was obtained.

                                                            Model
                                                            KHC600

                                                            Contour Dimension
                                                            505 * 395 * 671(length * width * height unit mm)

                                                            Monitoring Parameter
                                                            CR (VI)

                                                            Power Requirements
                                                            Rated voltage (220 ± 22) VAC frequency (50 ± 1) % Hz

                                                            Method
                                                            Diphenylcarbazide Spectrophotometer

                                                            Ambient Humidity
                                                            (65 ± 20) % Rh

                                                            Range
                                                            (0.005-1) mg/L and (0.005-10) mg/L were expandable

                                                            Ambient Temperature
                                                            (5-35) C

                                                            Display unit
                                                            12232 dot matrix display, 7-inch LCD touch screen dual display

                                                            Communication interface
                                                            Route 24-20ma, Route 1 RS232, Route 1 RS485

                                                            Measurement mode
                                                            Manual  measurement, continuous measurement periodic measurement, fixed-point measurement and automatic calibration measurement Sample check

                                                            Stored data
                                                            Five years of data storage

                                                            Measurement period
                                                            Anywhere from 30 minutes to 24 hours

                                                            Indication error
                                                            ≤ ± 5%

                                                            Zero Drift
                                                            ≤ ± 5% F. S

                                                            MBTF
                                                            > 720 hours

                                                            Range Drift
                                                            ≤ ± 5% F. S

                                                            Repeatability
                                                            ≤5%

Monitoring of enterprise rainwater and sewage
Monitoring of the total copper content in municipal pipe networks, pumping stations, groundwater, river water, lake water, and seawater.
