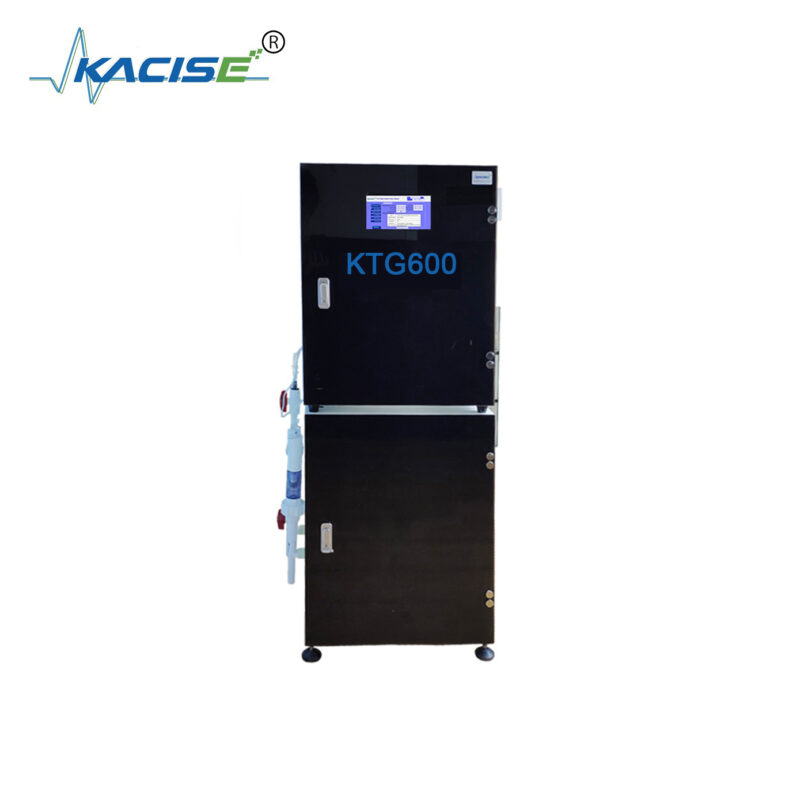

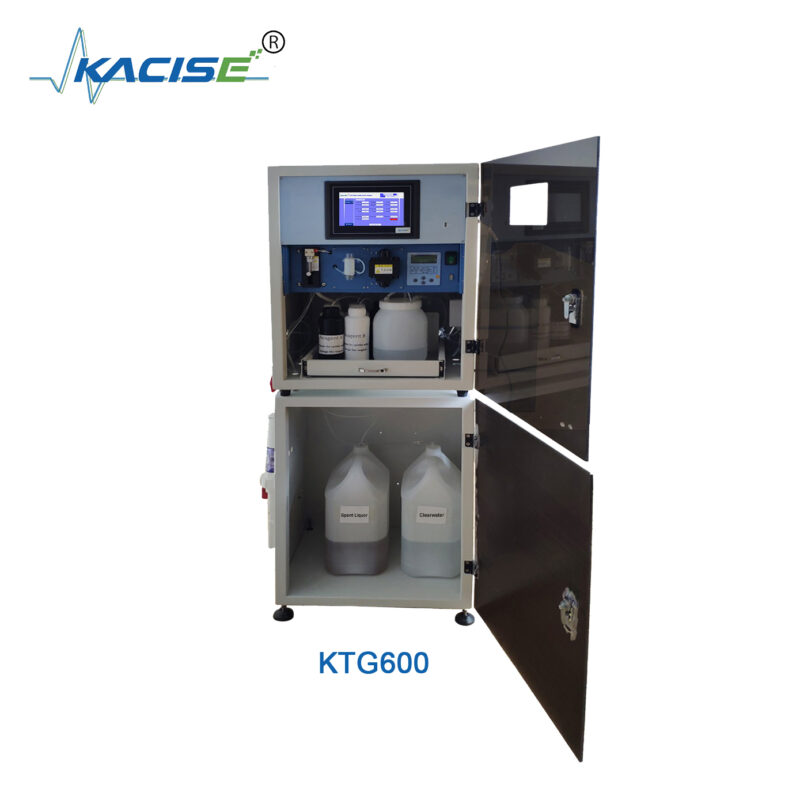

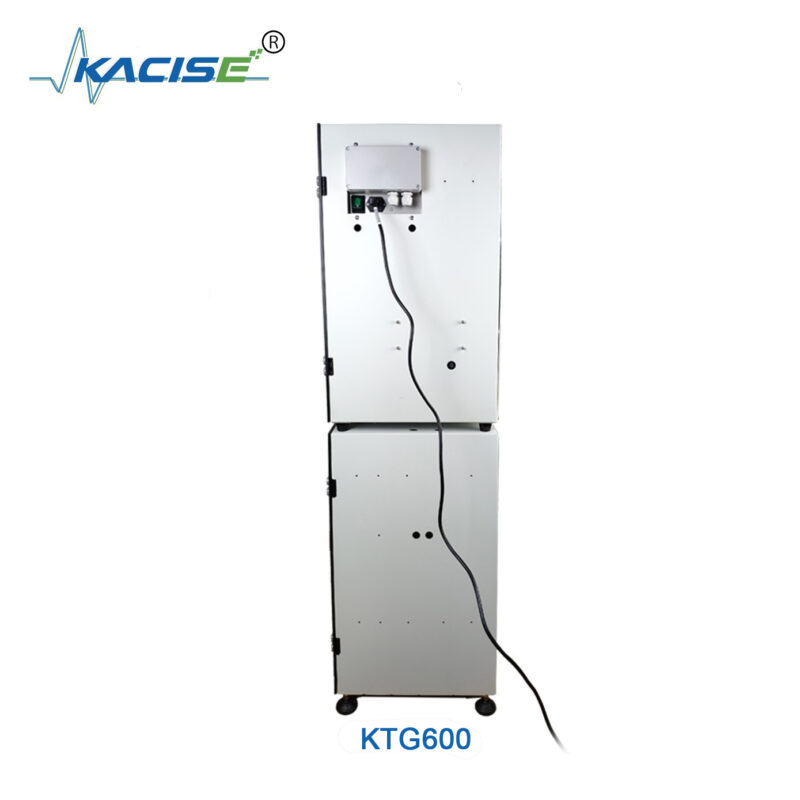

Online Total Cadmium Analyzer KTG600

(0 reviews)

(123) Views

(0) Contacts

Online Total Cadmium Analyzer KTG600 is a water quality monitoring equipment. Which is used to monitor the total content of Cadmium in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(685) Views

(10) Contacts

Principle of Total Cadmium Analyzer
Cadmium pollution in water mainly comes from surface runoff and industrial wastewater. Though Cadmium is a metal with low toxicity, its compounds are highly toxic. Normally Cadmium poisoning in the human body is mainly caused by the ingestion of cadmium-contaminated water, food, and air through the digestive tract and respiratory tract. The human body mainly accumulated in the liver, kidney, and bone, causing organ lesions, and affecting the normal activities of people.
Principle: in the borate buffer solution, add a masking agent to mask the interference of other ions, cadmium ions, and cadmium reagent to produce a stable orange complex, the complex absorbance is proportional to the cadmium content in the water sample, the content of cadmium in water was calculated by measuring the absorbance of the complex.

                                                            Model
                                                            KTG600

                                                            Monitoring Factor
                                                            Total cadmium

                                                            Contour Dimension
                                                            505 * 395 * 671(mm)

                                                            Method
                                                            Cadmium reagent Spectrophotometer

                                                            Range
                                                            (0.004-10) mg/L expandable

                                                            Display unit
                                                            12232 dot matrix display, 7-inch LCD touch screen dual display

                                                            Measurement mode
                                                            Manual  measurement,     continuous    measurement,       periodic measurement, fixed-point measurement, automatic calibration measurement, standard solution verification

                                                            Measurement period
                                                            30 minutes to 24 hours, with adjustable expansion

                                                            Communication interface
                                                            4-20mA, RS232, RS485, dry contact

                                                            Zero Drift
                                                            ± 8% F. S

                                                            Stored data
                                                            Five years of data storage

                                                            Range Drift
                                                            ± 8% F. S

                                                            Accuracy
                                                            ± 10%

                                                            Repeatability
                                                            ≤8%

                                                            MBTF
                                                            >720 hours

It is suitable for laboratory analyzers or industrial production process water, sewage, urban domestic sewage, river, lake, sea, and other surface water testing.
