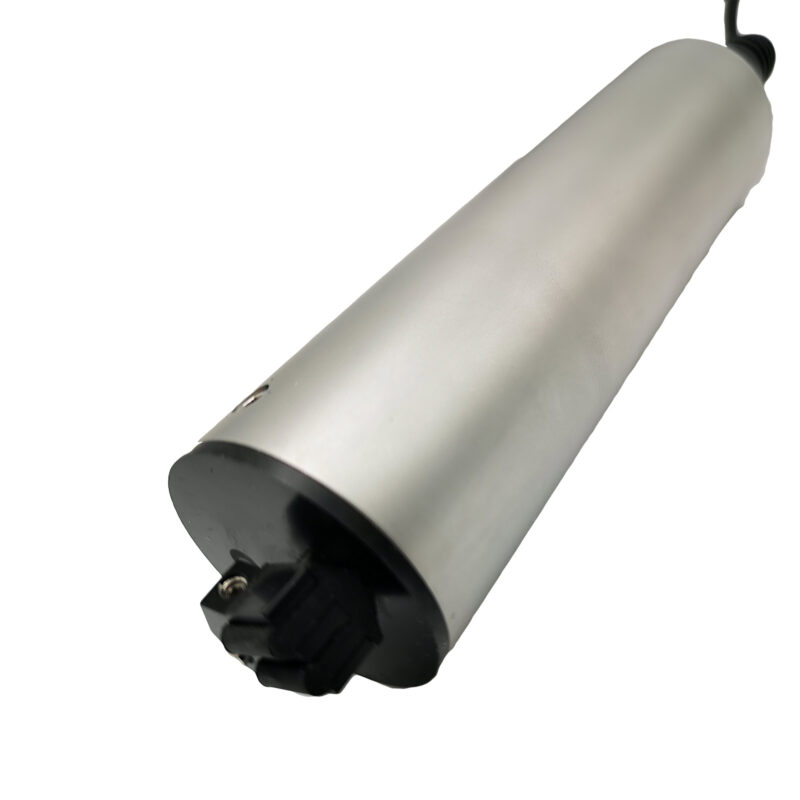

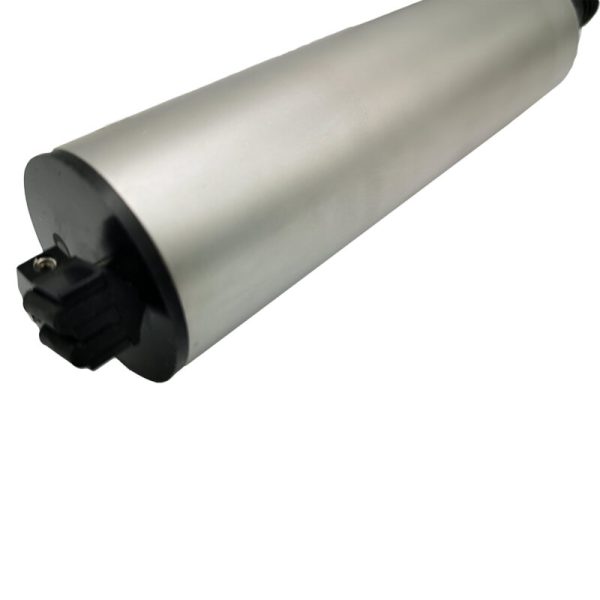

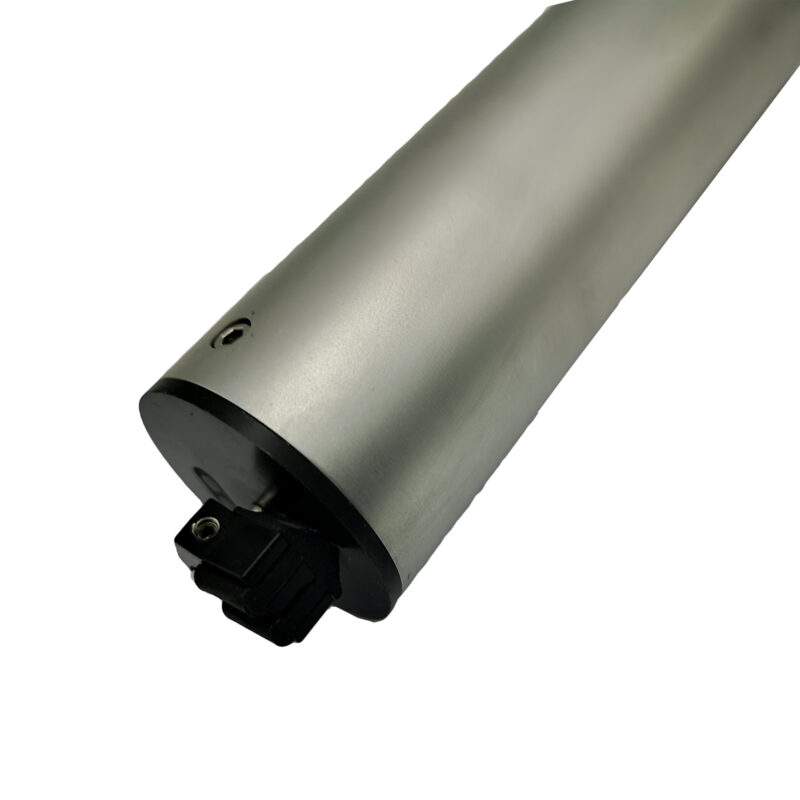

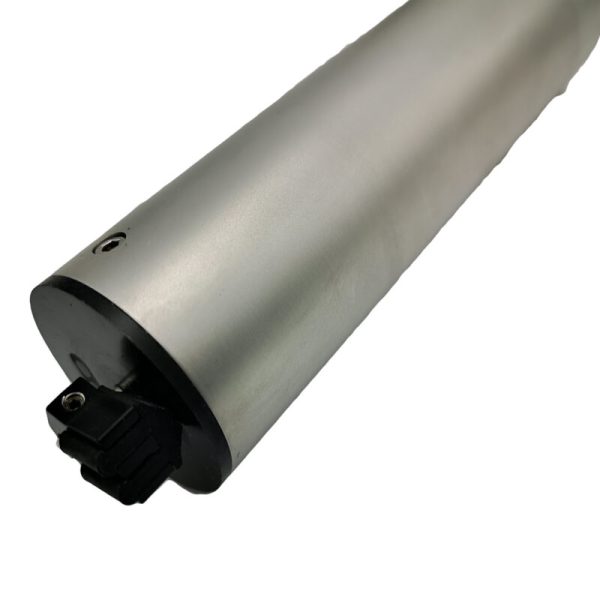

KCH300 online chlorophyll analyzer is an Online water quality analyzer based on OSA optical water quality analysis platform. Integrated design, a specific wavelength of high-brightness LED excited chlorophyll a to make its fluorescence, the high-sensitivity photoelectric analyzer will capture the weak fluorescence signal to convert chlorophyll a. Digital, intelligent analyzer design concept, can automatically compensate for voltage fluctuations, device aging, temperature changes on the impact of measured values. RS485 signal output, easy networking, and system integration are widely used in surface water and other industries.

                                                            Model number
                                                            KCH300

                                                            Contour dimension
                                                            160 mm × φ40 mm

                                                            Measurement parameter
                                                            Chlorophyll a, temperature

                                                            Weight
                                                            0.5 kg

                                                            Material Quality
                                                            Stainless steel, POM

                                                            Measuring range
                                                            Chlorophyll a: (0 ~ 50/500) g/L Temperature: (0 ~ 60) °C

                                                            Power consumption
                                                            < 1W (in non-cleaning mode)

                                                            Method of measurement
                                                            Fluorimetry

                                                            Supply voltage
                                                            (12/24) V DC

                                                            Measurement mode
                                                            Immersion measurement

                                                            Accuracy
                                                            ≤ ± 3%

                                                            Repeatability
                                                            ≤2%

                                                            Resolution
                                                            0.01 gl

                                                            Detection limit
                                                            0.05 gl

                                                            Response time
                                                            ≤10s

                                                            Zero Drift (24h)
                                                            ≤ ± 1% F.S.

                                                            Calibration period
                                                            Six months

                                                            Range Drift (24h)
                                                            ≤ ± 1% F.S.

                                                            Temperature range
                                                            (0 ~ 60) °C

                                                            Protection level
                                                            IP68

                                                            Cleaning mode
                                                            Automatic cleaning of mechanical brush

                                                            MTBF
                                                            ≥1440h/Time

                                                            Means of communication
                                                            RS485(Modbus RTU), maximum baud rate 115200 bps

Surface water
other industries.

Characteristics of chlorophyll analyzer

Integrated design, anti-electromagnetic interference
Using high-brightness LED as a light source, it can work stably for a long time
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement
Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
