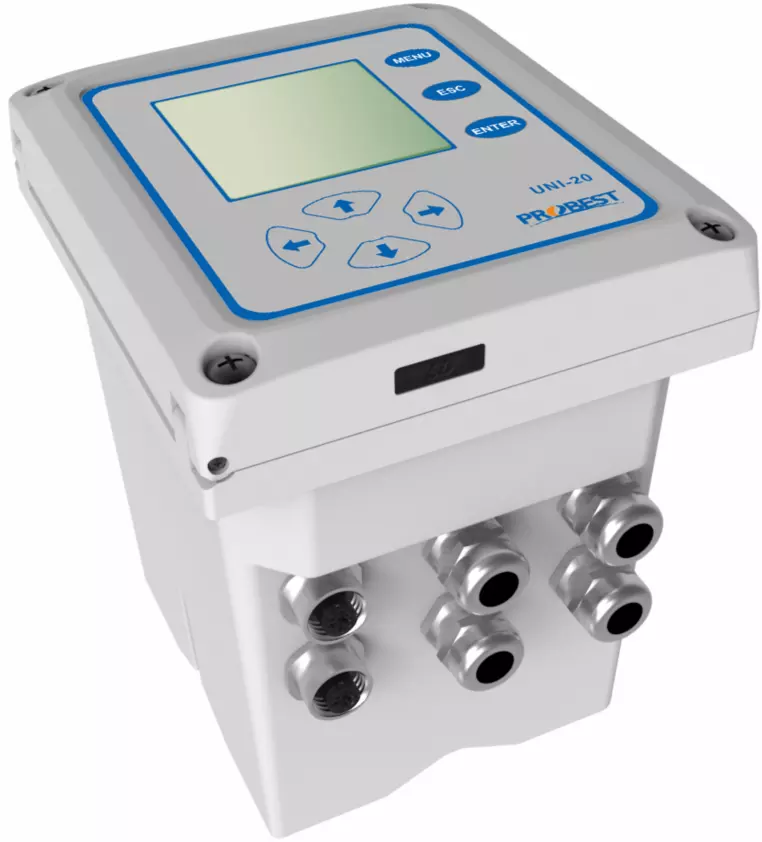

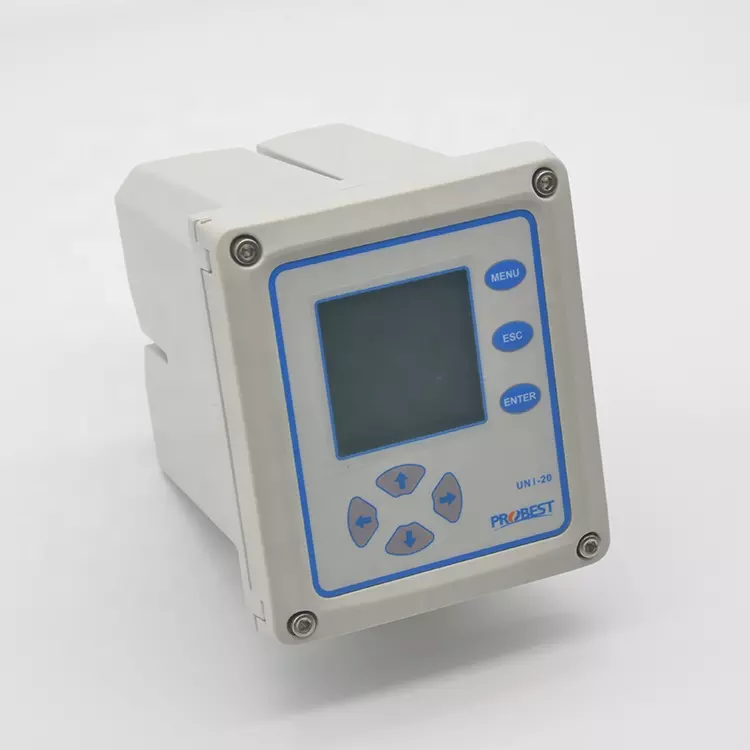

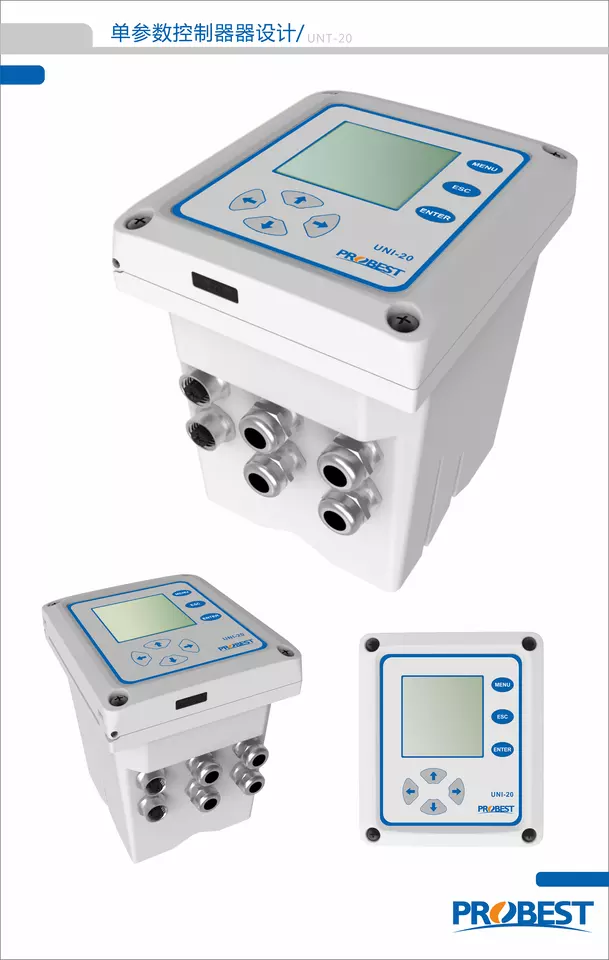

UNI-20 Universal Transmitter for water analysis instruments

$299.00 - $999.00/ 1 piece/piece

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(587) Views

(3) Contacts

The UNI-20 transmitter is highly versatile, and the existing digital and analog sensors from the company can be freely connected. Measurable parameters include pH, DO, ORP, Conductivity, Turbidity, SS, Chlorophyll, Blue-green algae, Residual chlorine, UVCOD, Ionic ammonia nitrogen, Nitrate nitrogen, Transparency, and other parameters. UNI-20 can also choose a single-channel or dual-channel configuration according to requirements. One transmitter can connect up to two sensors, reducing transmitter cost and installation space.

                                                            Model
                                                            PFDO-700

                                                            Brand
                                                            PROBEST

                                                            Code
                                                            90268090

                                                            Display
                                                            160*160 LCD

                                                            Power supply
                                                            AC：85-500VAC   (50/60HZ)  DC：9~36VDC

                                                            Weight
                                                            1.35KG

                                                            Output
                                                            3-way 4-20mA

                                                            Relay
                                                            Three-way relays, programmed response parameter and response   value.

                                                            Communication protocol
                                                            MODBUS  RS485

                                                            Dimension
                                                            145*125*162mm(L*W*H)

                                                            Main material
                                                            PA66+GF25+FR(Cover)；Aluminum alloy powder（Lower casing）

                                                            Storage temperature
                                                            -20- 70℃

                                                            Operation temperature
                                                            -15 - 60℃

                                                            Protective rate
                                                            IP65/ NEMA4X

High versatility, all digital sensor interfaces are common and analog sensors can be configured with different modules according to different sensor types;
Optional dual channel: select single channel or dual channel configuration according to requirements;
Realize sensor plug and play, quick and convenient electrode installation and replacement;
Easy use, reliable results, and interface operation instructions can reduce operational errors;
LCD screen visualization operation, rich and comprehensive interface;
With 4~20mA, MODBUS RS485 multiple data output modes;
Automatically remind error and alarm information, and realize alarm signal uploading;
The transmitter supports wall mounting/panel mounting/pinch installation;
With time display, data storage, and historical data viewing function;
Optional data wireless transmission module.
