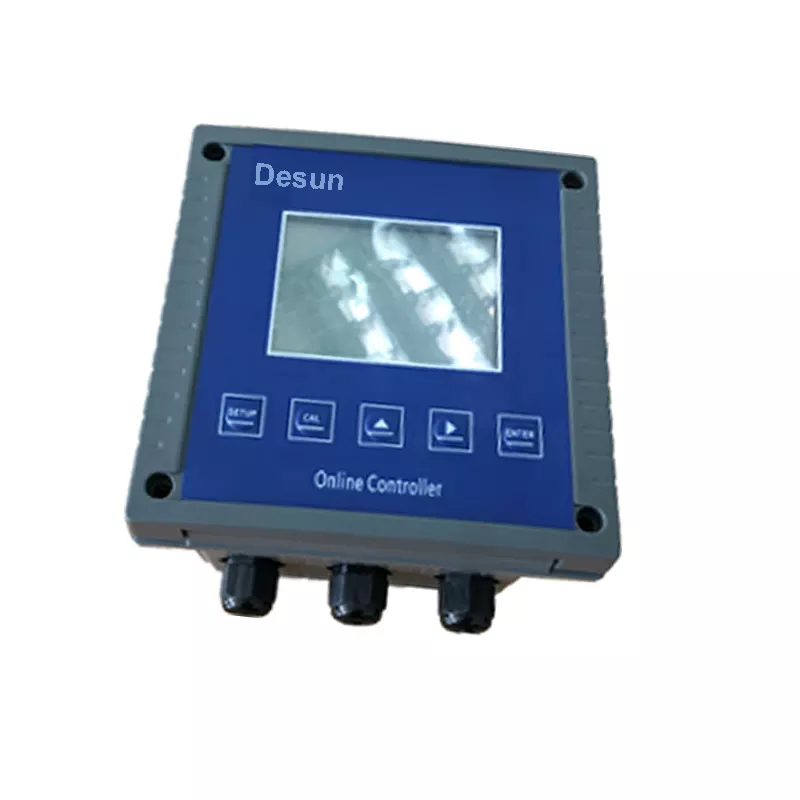

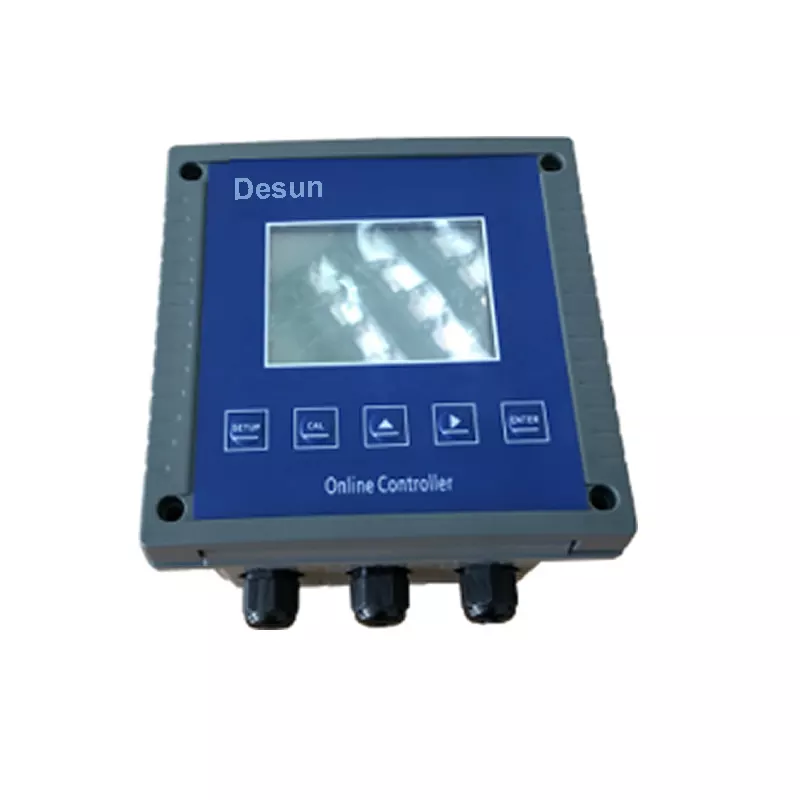

Online Transmitter

(0 reviews)

200 USD

(62) Views

(0) Contacts

>= 1 pieces
$200.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(1090) Views

(3) Contacts

The online general-purpose transmitter is independently developed by our company. It is an industrial-grade standard design, stable and reliable, easy to operate, and can support all digital sensors. One channel of 4 ~ 20mA output, photoelectric isolation, strong anti-interference ability, one channel of RS485 output, convenient for users to network, one channel of relay output with isolation, users can set the upper and lower limits, so as to control the on and off state of the equipment. users can set the upper and lower limits, so as to control the on and off state of the equipment.

                                                            Controller size
                                                            144*144*115mm

                                                            Weight
                                                            0.8kg

                                                            Operating temperature
                                                            0~ 55 °C, avoid direct sunlight

                                                            Precision
                                                            4 AAA alkaline batteries

                                                            Installation method
                                                            Wall or panel mounting (opening size 138*138*)

                                                            Storage temperature
                                                            -40 ~ 85 °C

                                                            Temperature range
                                                            0~ 50°C

                                                            Sensor type
                                                            Supports digital sensors such as optical dissolved oxygen, Four electrode conductivity, Fiber turbidity, chlorophyll, blue-green algae, oil in watesensor and sludge concentration sensor, pH and ORP.

                                                            Display
                                                            192*64 LCD

                                                            Air pressure compensation
                                                            Built-in instrument, automatic compensation 50~115KPa

                                                            Protection level
                                                            ABS housing, IP65

                                                            Transmitting output
                                                            1 channel isolated 4~20mA output, 1 channel digital output, 1 channel low point relay output Temperature /pres sure compensation automatic

                                                            Environment humidity
                                                            ≤ 80%

                                                            Power supply
                                                            110~220V
