Industrial Phosphate Analyzer

(0 reviews)

Get Price

(289) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(2255) Views

(11) Contacts

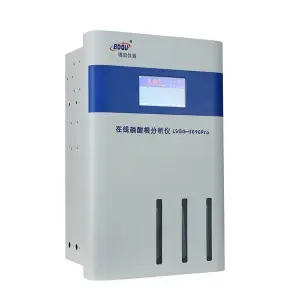

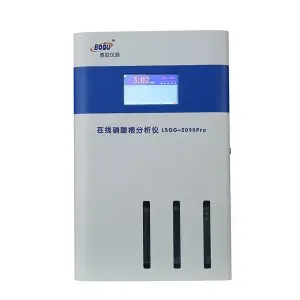

LSGG-5090Pro type industrial online phosphate analyzer adopts special air rabbling and optoelectronics examination technique, makes chemicals react quickly and measure accuracy outstanding, optoelectronics examination and chart text display. Adopt a color liquid crystal display, with prolific color, character, chart, curve, etc. Can be widely used in thermal power plants, the chemical industry, and other departments, timely and accurate phosphate content of the water is monitored to ensure crew working safely, and economically, especially for the scene environment.

                                                            Model No
                                                            LSGG-5090Pro

                                                            Channel
                                                            1 ~ 6 channels to for optional, cost savings.

                                                            Features
                                                            High accuracy, fast response, long life, good stability

                                                            Power Supply
                                                            AC220V±10%

                                                            Output
                                                            4-20mA

                                                            Protocol
                                                            Modbus RTU RS485, LAN、WIFI or 4G(Optional)

                                                            Measuring principle
                                                            phosphorus molybdenum alum yellow photoelectric colorimetry

                                                            Hole size
                                                            665mm × 405mm

                                                            Measuring range
                                                            0~2000μg/L, 0~10mg/L (optional)

                                                            Dimensions
                                                            720mm (height) × 460mm (width) × 300mm (depth)

                                                            Accuracy
                                                            ± 1% F.S

                                                            Reproducibility
                                                            ± 1% F.S

                                                            Stability
                                                            drift ≤ ± 1% F.S/24 hour

                                                            Response time
                                                            initial response, four minutes, six minutes to reach at least 98%

                                                            Power
                                                            ≈50VA

                                                            Sampling period
                                                            3 minutes/Channel

                                                            Watery conditions
                                                            Flow> 2 ml / sec, Temperature: 10 ~ 45 ℃, Pressure: 10kPa ~ 100kPa

                                                            Power supply
                                                            AC220V±10%  50HZ

                                                            Ambient temperature
                                                            5 ~ 45 ℃ (higher than 40 ℃, reduced accuracy)

                                                            Communication
                                                            RS-485、LAN、WIFI or 4G etc

                                                            Environment humidity
                                                            <85% RH

                                                            Output signal
                                                            4-20mA

                                                            Reagent consumption
                                                            about 3 liters/month

                                                            Reagent types
                                                            one kind

                                                            Alarm
                                                            buzzer, relay normally open contacts

Thermal power plants, chemical industry, etc

1. 1 ~ 6 channels for optional, cost savings.
2. High accuracy, and fast response.
3. Regular automatic calibration and maintenance workload is small.
4. Color LCD real-time curve, convenient for analysis of the working condition.
5. Save a month of historical data, easy recall.
6. Monochromatic cold light source, long life, good stability.
7. Multiple-precision programmable current output, suitable for subsequent automatic dosing or data acquisition system.
