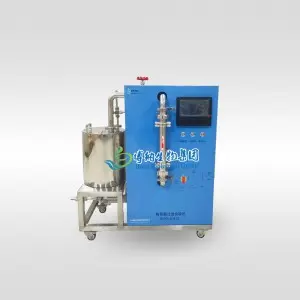

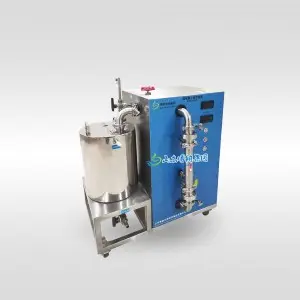

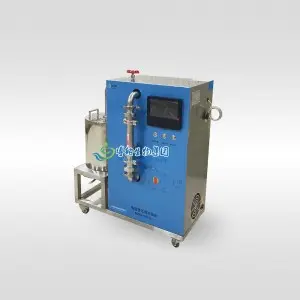

Lab Use Ceramic Membrane Filtration Machine BONA-GM-22G

(0 reviews)

Get Price

(94) Views

(0) Contacts

Contact Company

Shandong Bona Biological Technology Group Co., Ltd.

Shandong, China

(339) Views

(0) Contacts

It can be changed out for ceramic membrane elements (UF, MF) with various pore diameters. It is extensively utilized in a variety of industries, including those that deal with biology, medicine, food and drink, biopharma, plant extraction, chemistry, blood products, and environmental protection. It can be applied to feed liquid sterilization, purification, clarifying, and separation investigations. can be used in place of conventional techniques including plate and frame filtering, centrifugal separation, solvent extraction, natural sedimentation, automated earth filtration, etc. It can decrease the amount of activated carbon used for decolorization, increase the effectiveness of resin adsorption, and lengthen the time it takes for ion exchange resin to regenerate. The advantages of the ceramic membrane filtration and separation technology include quick filtering, a high yield, good quality, a low cost of operation, and a long service life.

                                                            Product Name
                                                            Lab Use Ceramic Membrane Filtration Machine

                                                            Model No.
                                                            BONA-GM-22G

                                                            Filtration Precision
                                                            MF/UF

                                                            Filtration Rate
                                                            1-10L/h

                                                            Minimum Circulating Volume
                                                            2L

                                                            Feed Tank
                                                            10L

                                                            PH Range
                                                            0-14

                                                            Working Pressure
                                                            ≤ 1.0MPa

                                                            Working Temperature
                                                            0 - 120℃

                                                            Total Power
                                                            750W

                                                            Machine Material
                                                            SUS304/316L/Customized

Ceramic membrane filters have a benefits

Acid, alkali, and oxidation resistance, as well as stable chemical characteristics.
resilience to high temperatures and organic solvents.
High wear resistance and mechanical strength.
long lifespan and ample computing power.
High separation precision and narrow pore size dispersion up to the nanoscale.
The ability to take back flush, be sterilized electronically or at a high temperature.

System Specifications

1. The controller, housing count, and other features are customizable.
2. The experimental machine has an integrated structure, is easy to use, has casters for mobility, and does not have any hygienic dead corners on its surface, meeting GMP criteria.
3. The equipment pipes' interior and exterior surfaces are of high quality, flat and smooth, clean and sanitary, secure and dependable, which can guarantee the equipment's resistance to pressure and corrosion.
4. The fillet weld, external butt weld, and pipe end are polished and smooth, and the equipment bracket has been brushed and polished.
5. The pump has an automatic over-temperature prevention feature that shuts down the device automatically and ensures the complete safety of filtration equipment and experimental liquid.
6. Ceramic membrane components with different pore sizes (20nm–1400nm) can be substituted.
7. The membrane shell uses single-sided welding, double-sided molding, automatic argon filling protection, safety, and cleanliness.
