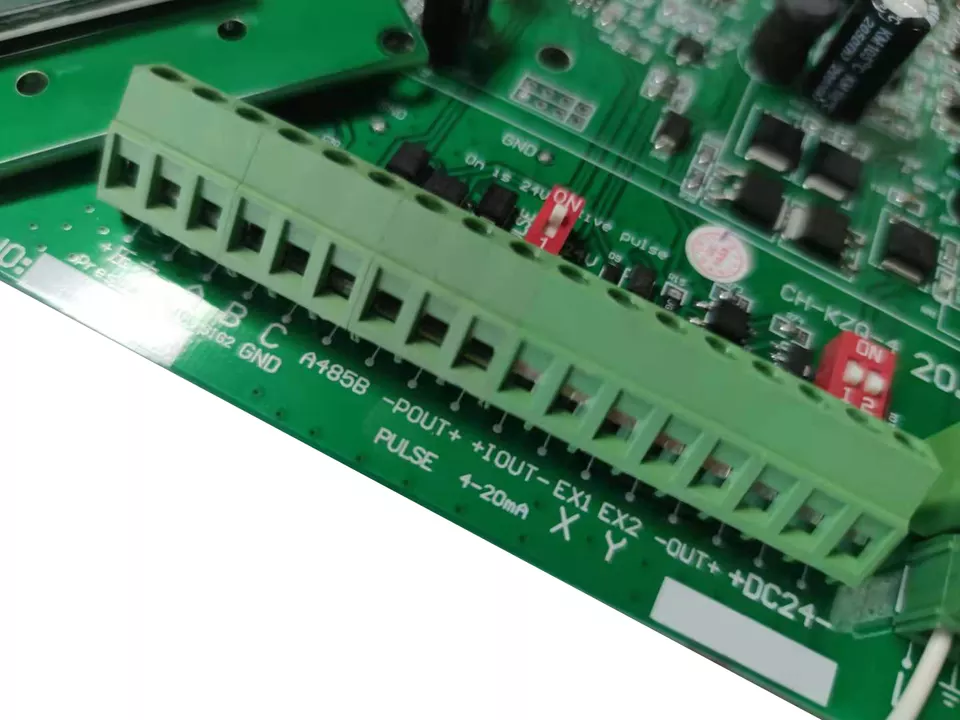

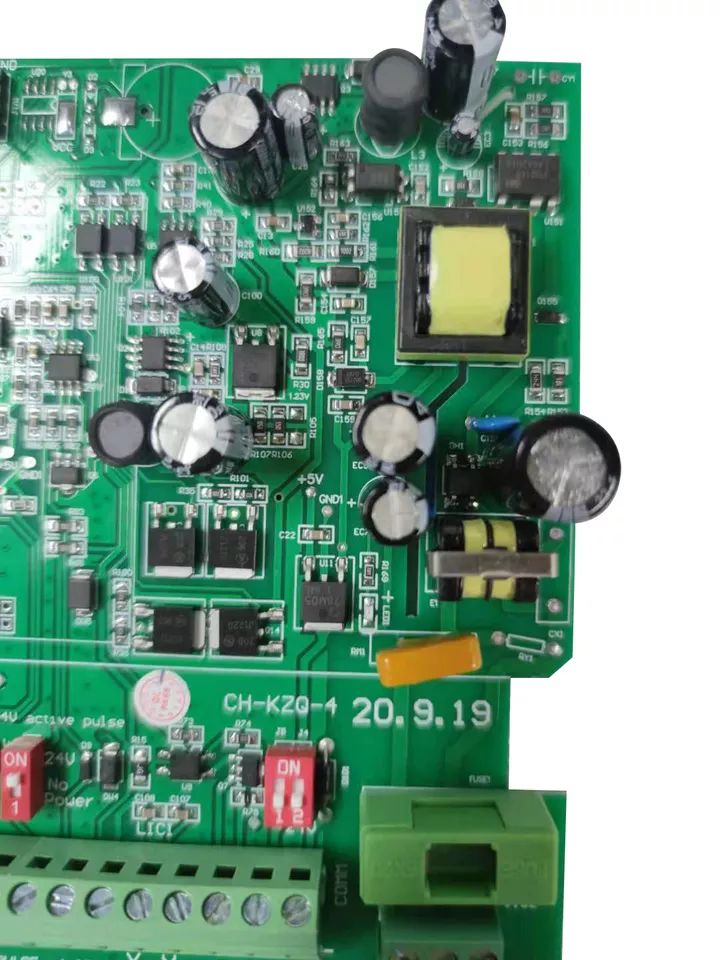

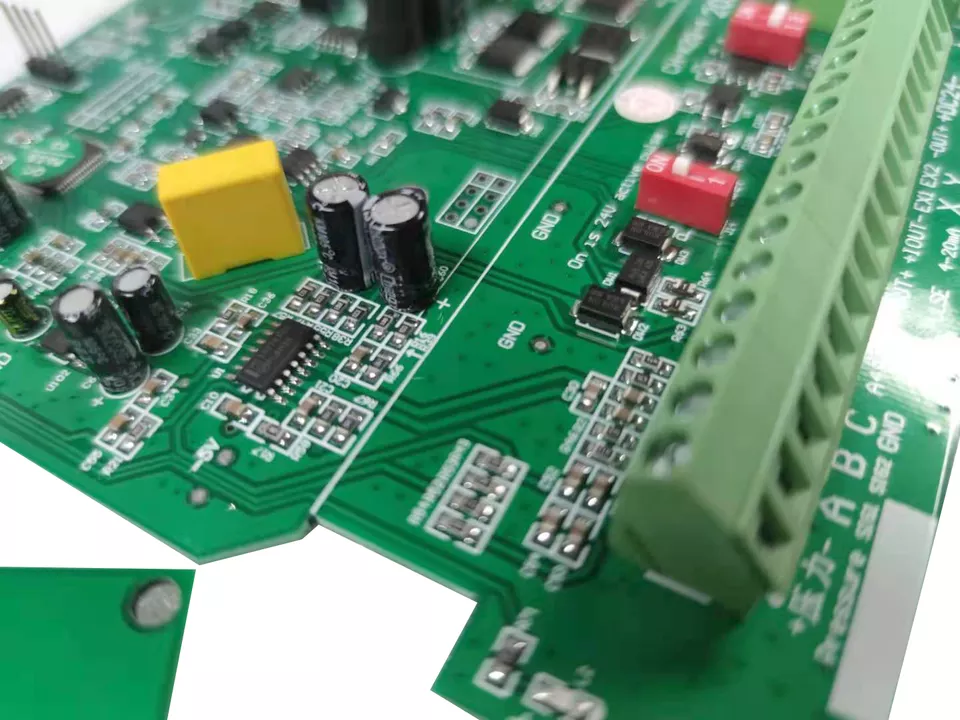

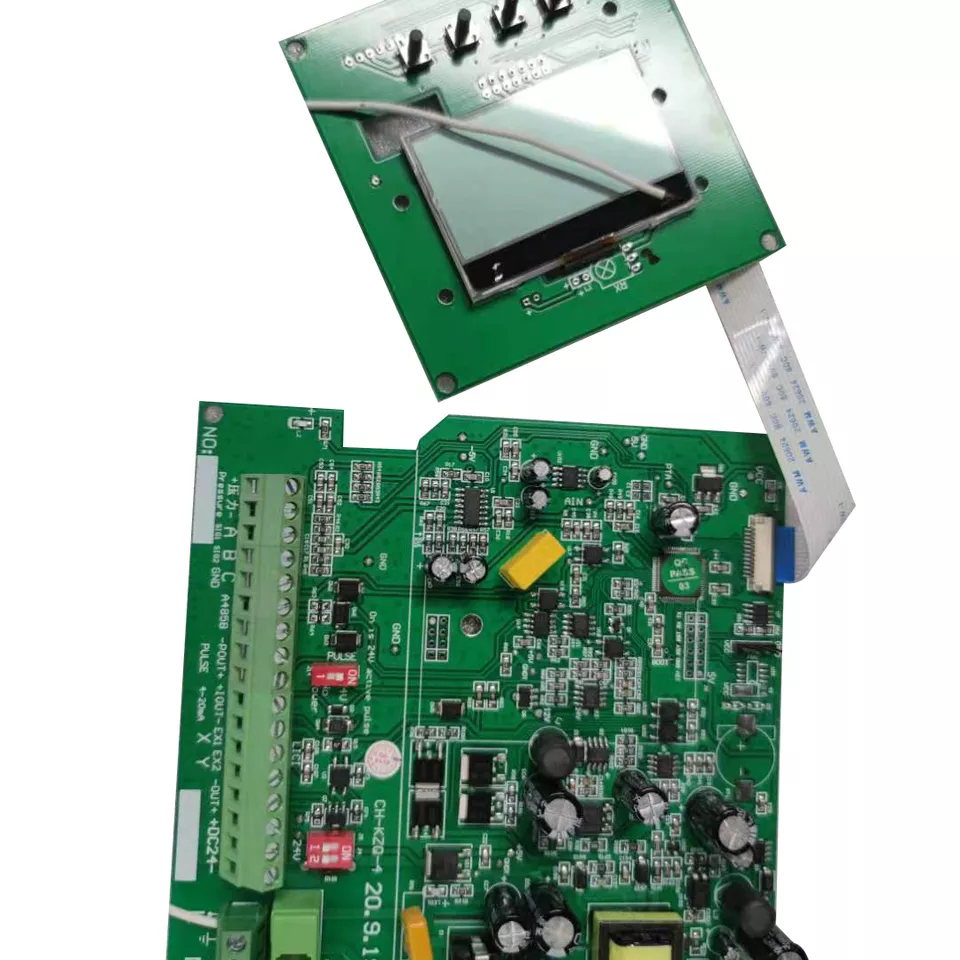

Electromagnetic Flow Meter PCB

(0 reviews)

45 USD

(189) Views

(0) Contacts

1 - 49 pieces 50 - 99 pieces
$45.00 $44.00

>= 100 pieces

$43.00

Contact Company

Luoyang Chuanzhi Environmental Technology Co., Ltd

Henan, China

(1868) Views

(15) Contacts

                                                            Output
                                                            4-20mA/RS485

                                                            Warranty
                                                            1 years

                                                            Customized support
                                                            OEM, ODM, OBM

                                                            Type
                                                            Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Variable Area Water Flowmeters

                                                            Accuracy
                                                            0.2%

                                                            Display
                                                            Digital Display

                                                            PCB Power supply
                                                            24VDC/220VAC/Battery

Electromagnetic Flow Meter Characteristics

① Programmable frequency low-frequency rectangular wave excitation improves the stability of flow measurement and low power loss.
② It adopts a 32-bit embedded microprocessor, which is fast in operation. High precision.
③ Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement ranges from 1 to 1000.

④ Ultra-low EMI switching power supply is suitable for a wide range of power supply voltage changes. Good EMC resistance;
⑤ All Chinese menu operations, easy to use, simple to operate, and easy to learn and understand.
⑥ High-definition backlit LCD.
⑦ It has two-way flow measurement, a two-way total amount accumulation function, current and frequency output function.
⑧ There are three integrators in the interior, which can respectively display the forward accumulated quantity, the reverse accumulated quantity, and the difference accumulated quantity.
⑨ RS485 digital communication signal interface.
⑩ with the conductivity measurement function, it can judge whether the sensor is empty or not.
⑪ Constant current excitation current has a wide range, which can be used with different companies and different types of electromagnetic flow sensors.
⑫ Self-check and self-diagnosis function.
⑬ With SMD device and SMT technology, the circuit has high reliability.
⑭ The instrument has a multi-language display, and Chinese and English can be changed to each other.
