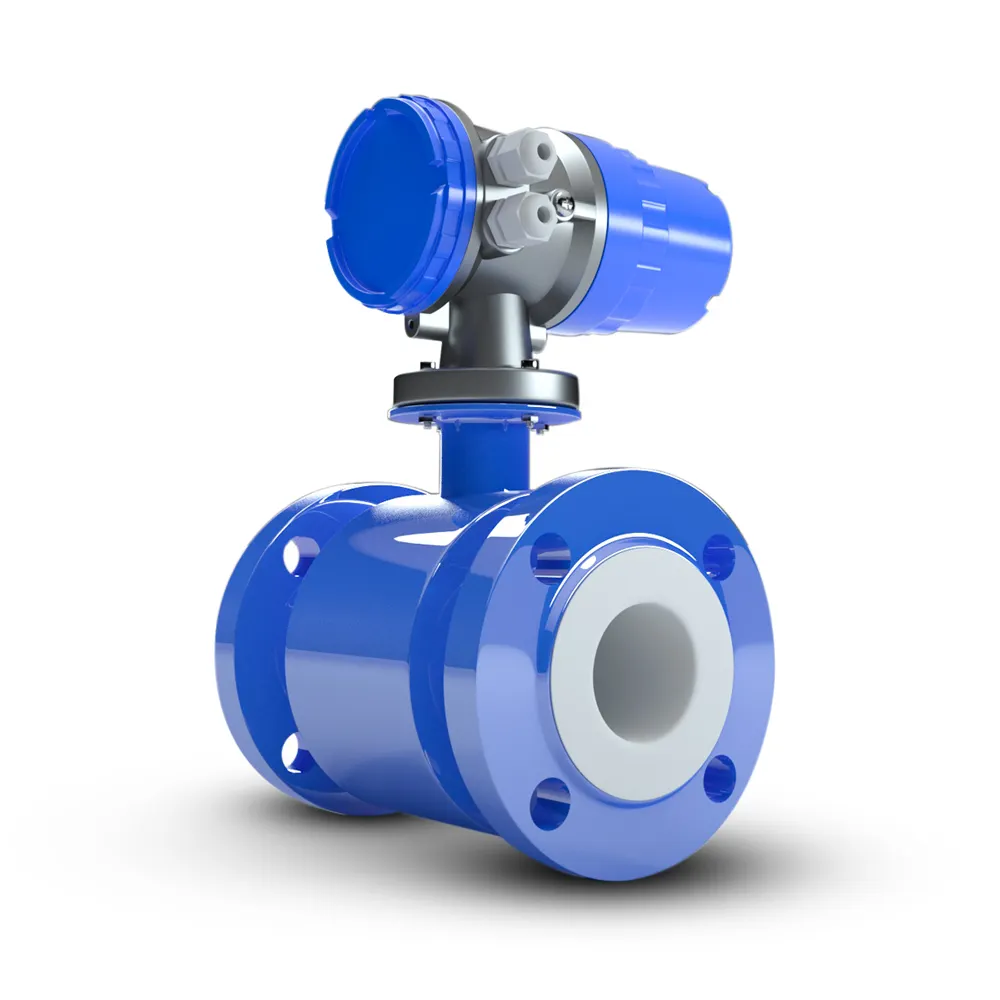

4-20ma Output 6 Inch Pipe Water Electromagnetic Flow Meter

(0 reviews)

Get Price

(315) Views

(0) Contacts

1 - 9 sets >= 10 sets
$378.00 $365.00

Contact Company

Henan Dafang Dingsheng Flow Instrument Co., Ltd.

Henan, China

(1667) Views

(3) Contacts

Product Details
Product Reviews

                                                            Nominal Diameter
                                                            DN10~DN3000mm

                                                            Nominal Pressure
                                                            0.6~4.0MPa (Higher Pressure can be customized)

                                                            Main Power
                                                            AC220V 50Hz / DC24V / 3.6V

                                                            Language
                                                            English, Others can be customized.

                                                            Protection Class
                                                            IP65, IP67, IP68 (Optional)

                                                            Measuring Range
                                                            1500:1, flow rate<15m/s

                                                            Display
                                                            Instantaneous flow, flow unit, cumulative flow Unit	Liter, m³, Gallon (Optional).

                                                            Medium Electrical  Conductivity
                                                            ≥5us/cm

                                                            Accuracy
                                                            ±0.5%, ±0.3%

                                                            Ambient Temp.
                                                            -25°C ~ +60°C

                                                            Output Signal
                                                            RS485 / 4-20mA / Pulse / Analog

                                                            Medium Temp.
                                                            -20°C ~ +180°C

                                                            Communication
                                                            RS232, RS485 (MODBUS), HART is optional

                                                            Lining Material
                                                            Neoprene, Polyurethane Rubber, PTFE, F46, PFA Electrode Material	SUS316, HB, HC, Titanium, Tantalum, Platinum-iridium alloy, Wolfram

                                                            Electrode Material
                                                            SUS316, HB, HC, Titanium, Tantalum, Platinum-iridium alloy, Wolfram
