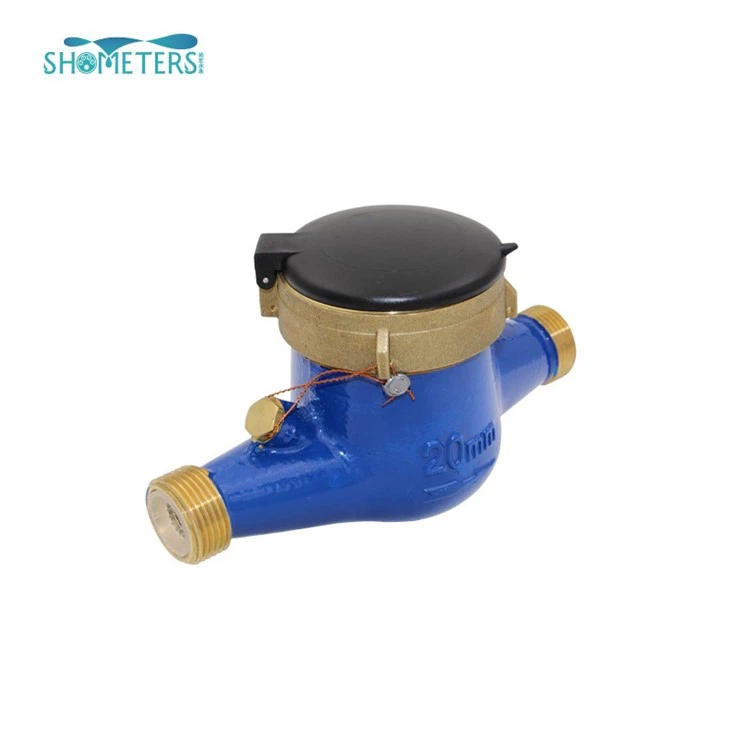

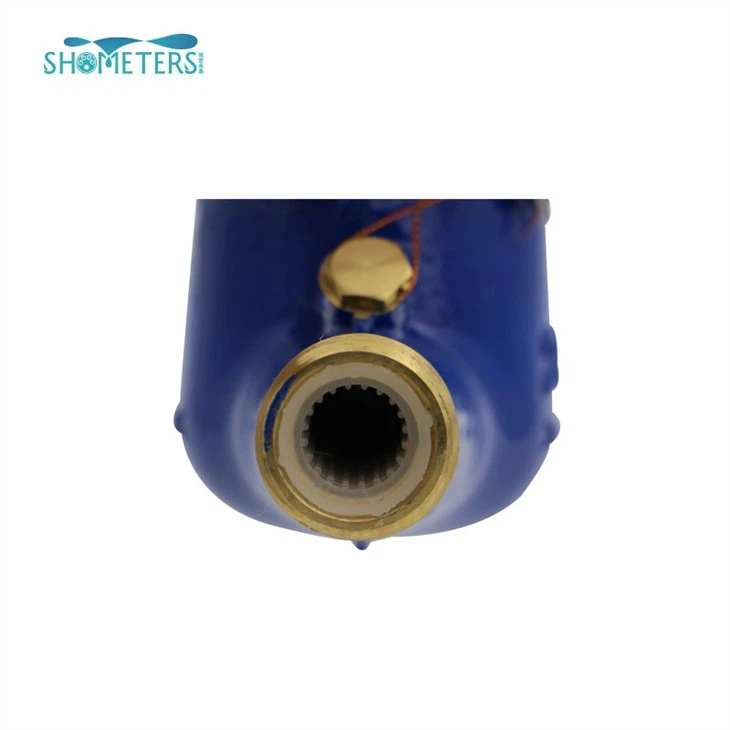

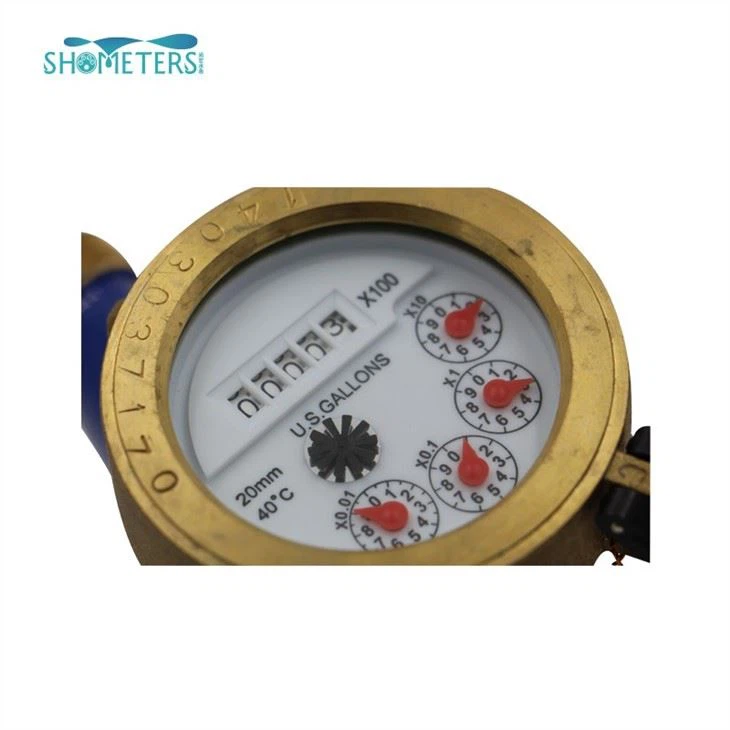

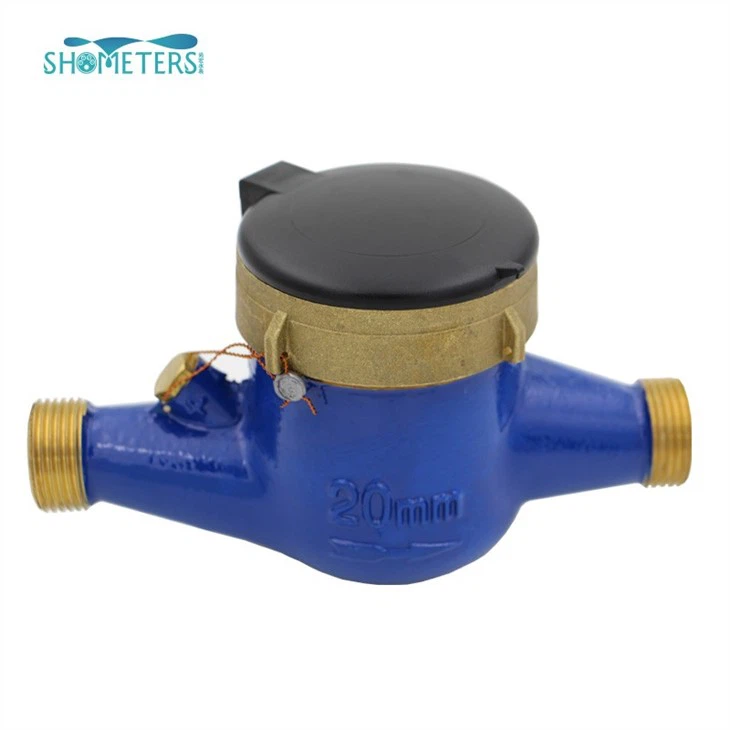

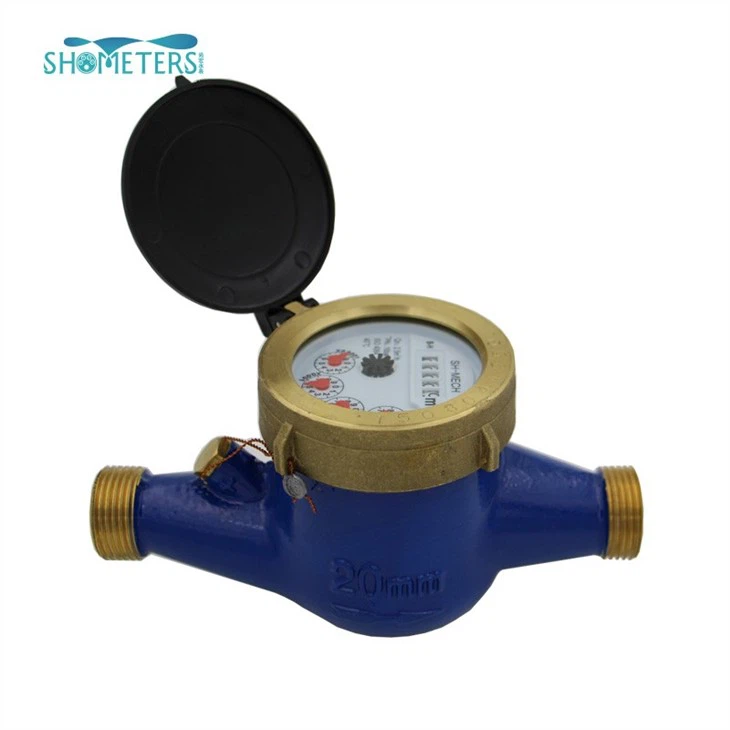

Hot Sale 3/4 Inch Multijet Water Meter Pulse

(0 reviews)

Get Price

(206) Views

(0) Contacts

10 - 99 pieces
$69.00
>= 100 pieces
$62.00

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(2826) Views

(4) Contacts

Maximum Permissible Error

In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for the hot water meter.

Standards Compliance
Technical data conforms to international standard ISO 4064.

Overall Dimension and Weight

DN (mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25

Technical Data

DN (mm)		15	20	25	32	40	50
Size(inch)		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Q4(l/h)		3125	5000	7875	12500	20000	31250
Q3(l/h)		2500	4000	6300	10000	16000	25000
R=80	Q2(l/h)	50	80	126	200	320	400
R=80	Q1(l/h)	31.25	50	78.75	125	200	250
R=100	Q2(l/h)	40	64	100.8	160	256	400
R=100	Q1(l/h)	25	40	63	100	160	250
R=125	Q2(l/h)	32	51.2	80.64	128	204.8	200
R=125	Q1(l/h)	20	32	50.5	80	128
R=160	Q2(l/h)	22.5	40	63	100	160	400
R=160	Q1(l/h)	15.62	25	39.37	62.5	100	250
Max.Reading(m³)		99,999	99,999	99,999	99,999	99,999	99,999
Min.Reading(Liter)		0.05	0.05	0.05	0.05	0.05	0.05
Max.Pressure(Bar)		16	16	16	16	16	16
Pressure Loss		63
Max.Temperature		T=50/90
Pulse Output Option		Vmax=24V
		Imax=100mA
		Pmax=2W

                                                            Thread end type
                                                            BSP / NPT.

                                                            ·Register sealed type
                                                            Dry type; Semi-dry type; Super-dry type

                                                            Accessories
                                                            2 pcs coupling, 2 pcs coupling nuts, and 2 pcs washers.

                                                            Materials
                                                            Brass, Brass interface, Brass material

                                                            Brass working pressure
                                                            PN16(16bar)

                                                            Accuracy
                                                            R=80 ; 100; 125; 160;class b;class c

                                                            Size
                                                            15~50mm.

                                                            Water temperature
                                                            0.1℃~50℃ for cold water meter.

                                                            Water pressure
                                                            ≤1.6Mpa (16 bar).

Multijet Water Meter Pulse applications

Measuring the volume of cold (hot) water passing through the pipeline.
A water meter is used for homes, commercial, municipalities, and pipelines

Multijet Water Meter Pulse features:

Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
A sealed dry register ensures long-term clear reading.
External regulating device.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, and connector fitting

Optional Features of

Cold water.
Non-return valve.
Reed switch option.
Several lengths and connections are available on request.
Provide pulse output/rs485 Modbus/wired remote/pulse splitter/pulse read display
