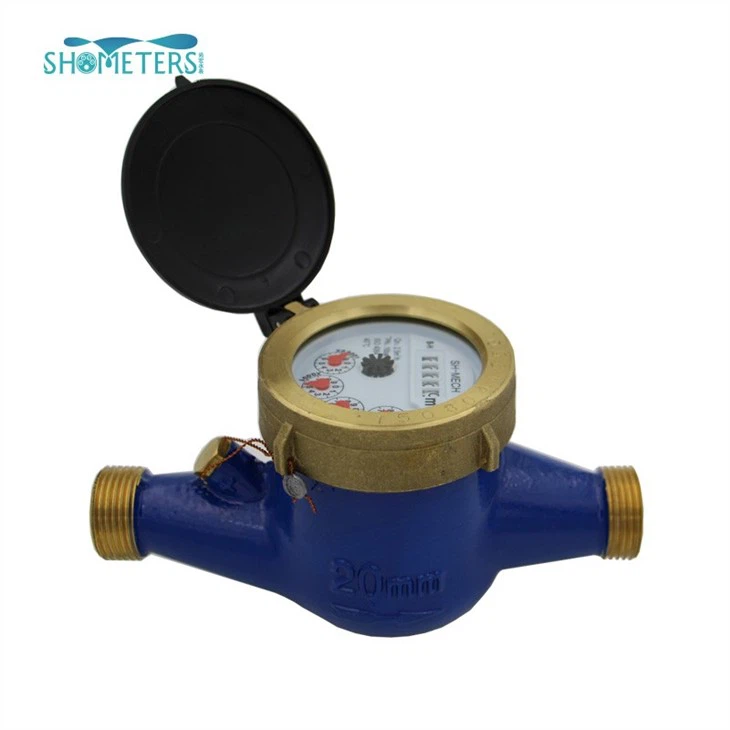

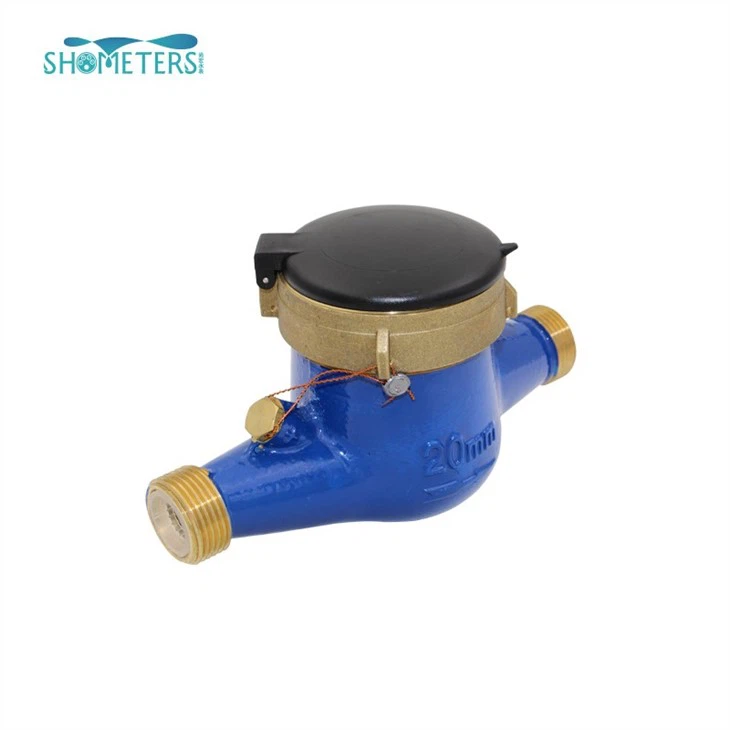

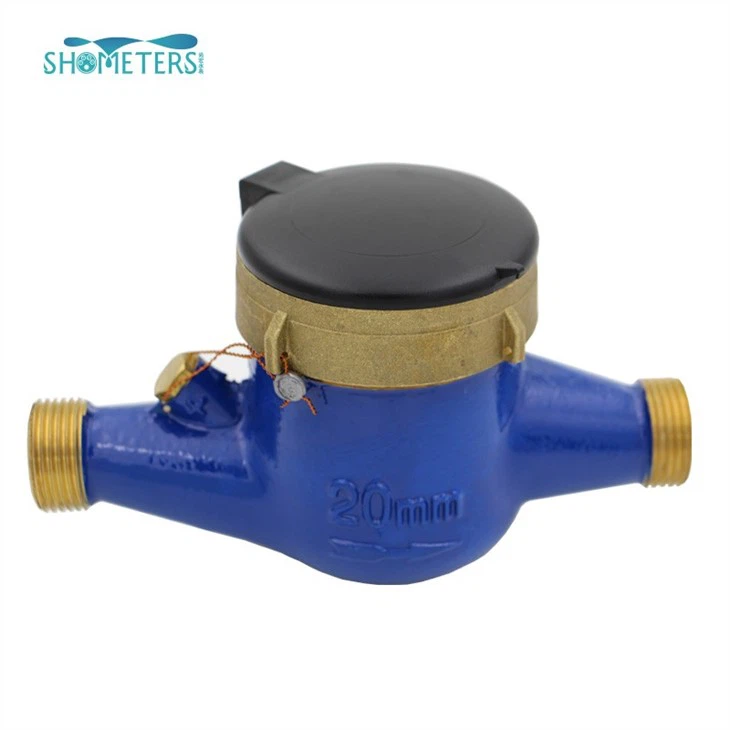

Multijet Water Meter Pulse 3/4 Inch

(0 reviews)

Get Price

(73) Views

(0) Contacts

10 - 99 pieces
$69.00
>= 100 pieces
$62.00

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(2277) Views

(4) Contacts

Maximum Permissible Error

In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for the hot water meter.

Standards Compliance
Technical data conforms to the international standard ISO 4064.
Overall Dimension and Weight

DN(mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25

                                                            Accressories
                                                            2pcs coupling, 2pcs coupling nuts and 2pcs washers.

                                                            ·Register sealed type
                                                            Dry type; Semi-dry type; Super-dry type

                                                            Accuracy
                                                            R=80 ; 100; 125; 160;class b;class c

                                                            Size
                                                            15~50mm.

                                                            Thread end type
                                                            BSP / NPT

                                                            Brass working pressure
                                                            PN16(16bar)

                                                            Materials
                                                            Brass, Brass interface, Brass material

                                                            Water temperature
                                                            0.1℃~50℃ for cold water meter.

                                                            Water pressure
                                                            ≤1.6Mpa (16 bar).

Multijet Water Meter applications

Measuring the volume of cold (hot) water passing through the pipeline.
A water meter is used for homes, commercial, municipalities, and pipelines.

Multijet Water Meter features:

Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.

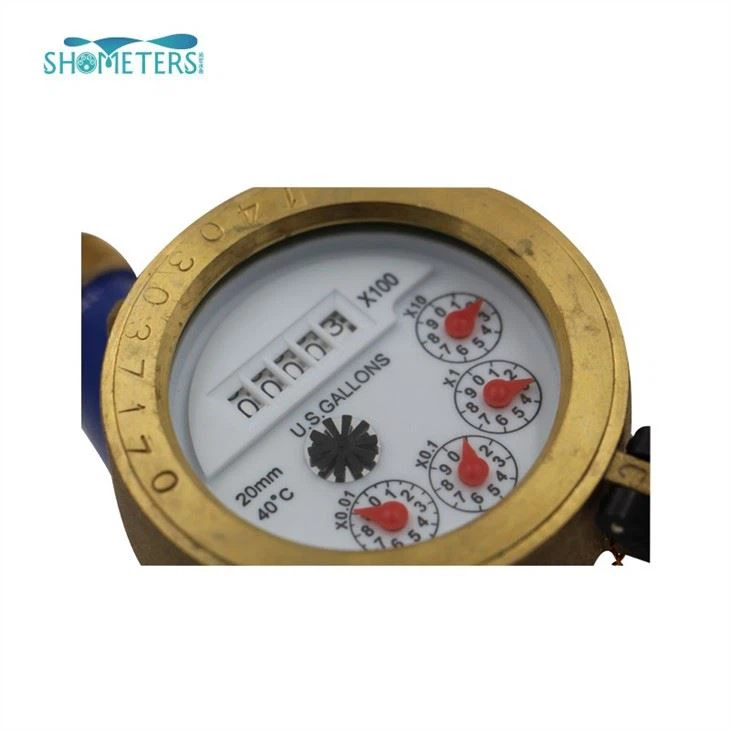

A sealed dry register ensures long-term clear reading.
External regulating device.
With high accuracy
For horizontal use

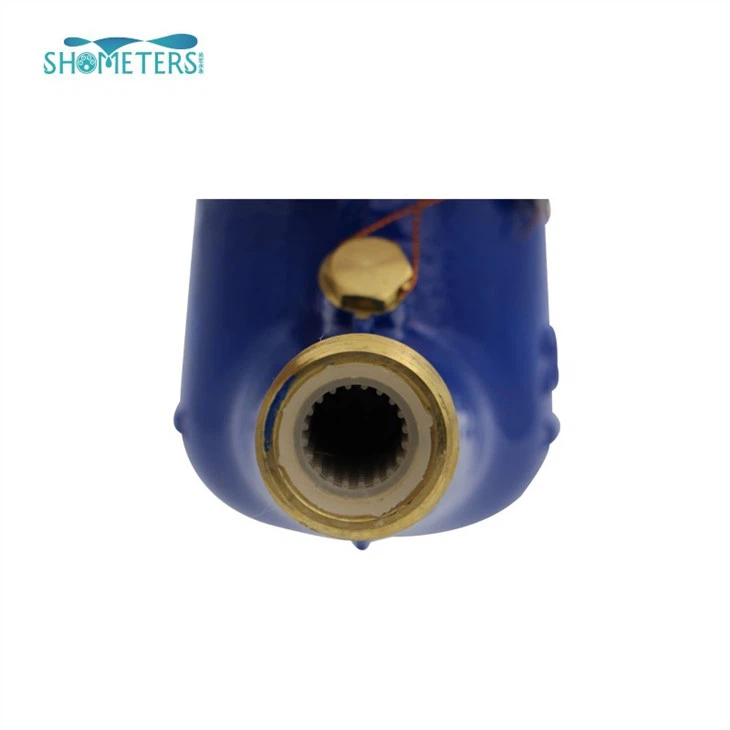

Accessories include Strainer, Rotary piston, Connection Widget, and connector fitting

Optional Features of Multijet Water Meter

Cold water.
Nonreturn valve.
Reed switch option.
Several lengths and connections are available on request.
Provide pulse output/RS-485 Modbus/wired remote/pulse splitter/pulse read display
