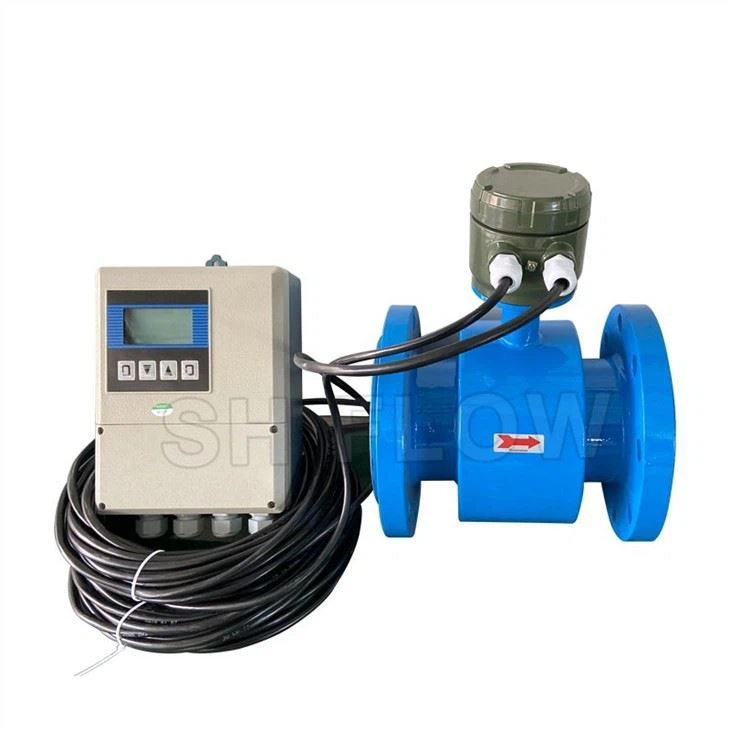

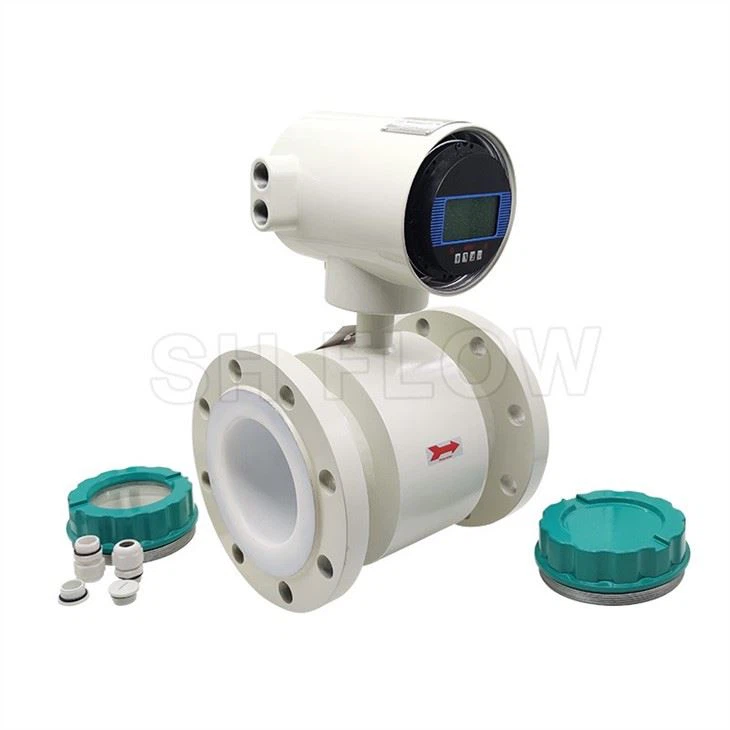

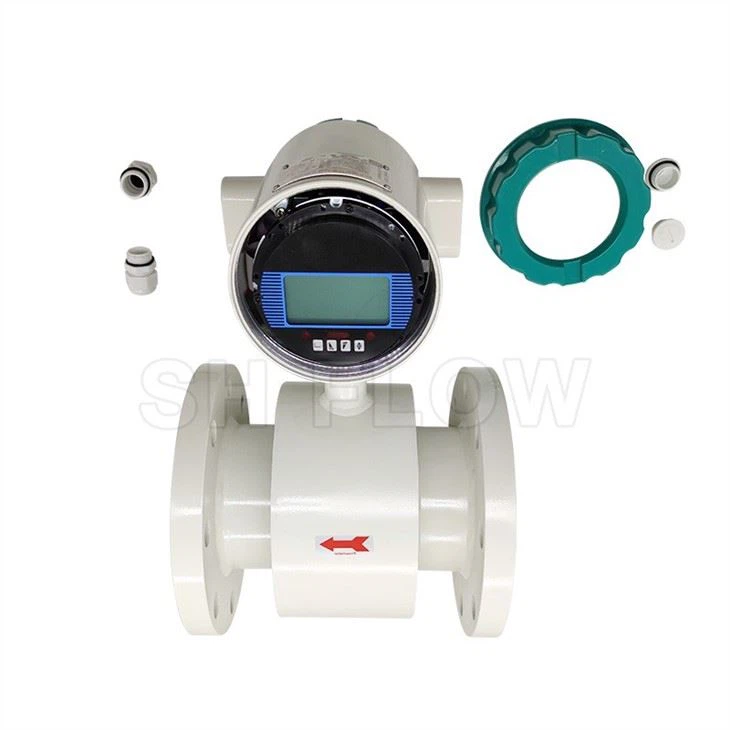

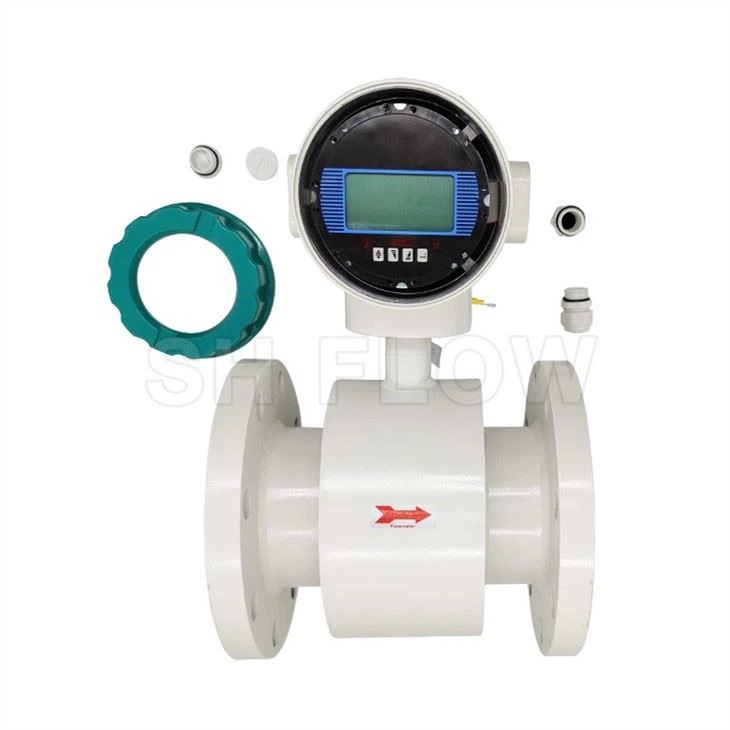

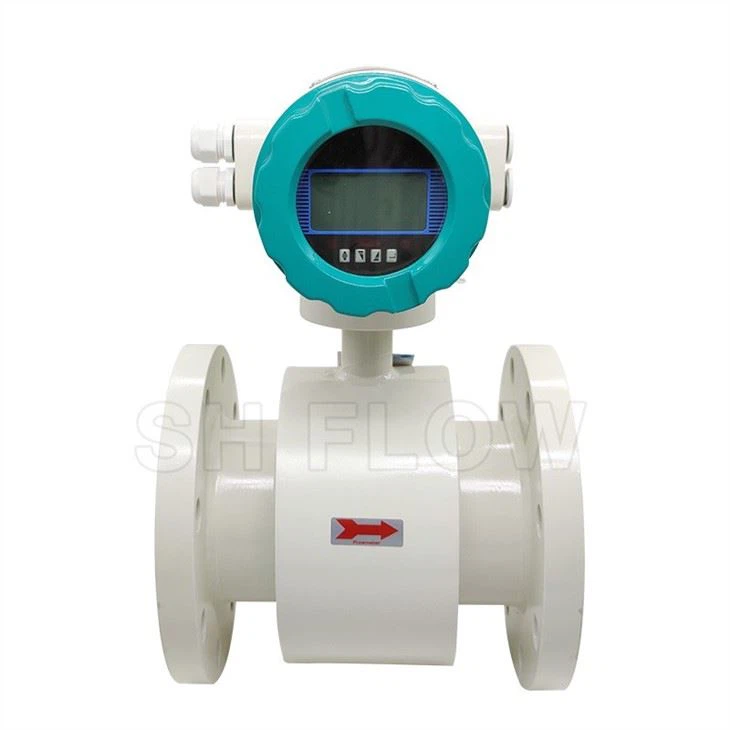

DN50 Electromagnetic Flow Meter Mini Seawater Tap Water Liquid Control Intelligent Magnetic Electromagnetic Flowmeter

(0 reviews)

Get Price

(515) Views

(0) Contacts

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(2993) Views

(4) Contacts

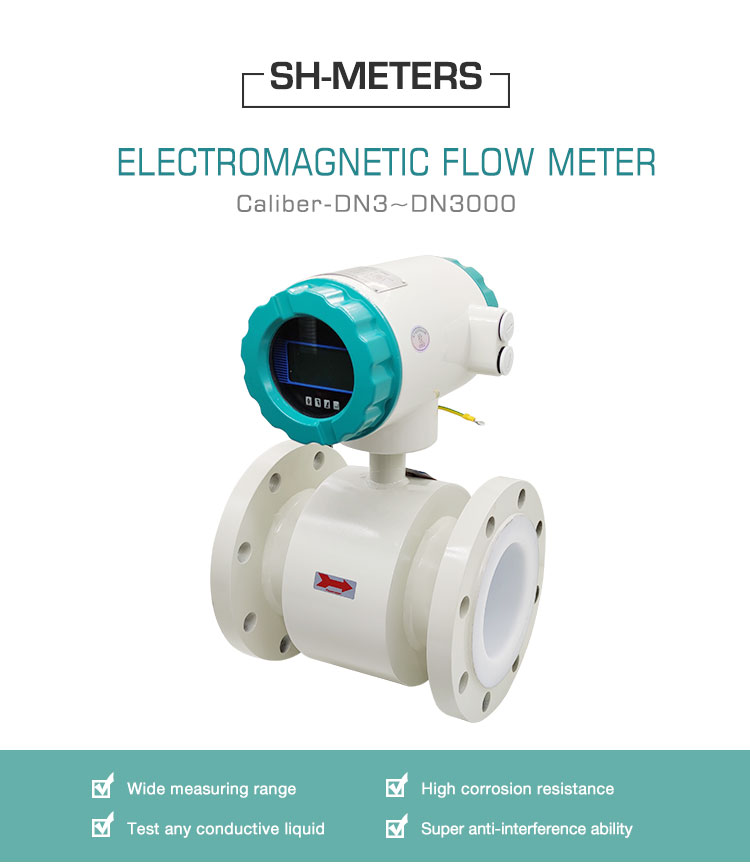

The intelligent electromagnetic flow meter is a high-performance, high-reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits.
Technical performance parameters:

output signal	Analog output	Two-way, fully isolated 0~10mA/4~20mA
	Analog output	Load resistance: 0 ~ 1.5kΩ when 0 ~ 10mA; 0 ~ 750Ω when 4 ~ 20mA
	Frequency output	Forward and reverse flow output, the upper limit of output frequency can be set within 1 ~ 5000Hz. Open collector bidirectional output of a transistor with photoelectric isolation. The external power supply is not greater than 35V, and the maximum current of the collector when conducting is 50mA.
	Alarm Output	Two open-collector alarm outputs with photoelectric isolation transistors. The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 250mA. Alarm status: fluid empty pipe, excitation disconnection, flow overrun.
	Pulse output	Forward and reverse flow output, the upper limit of the output pulse can reach 5000CP / S. The pulse equivalent is 0.0001 ~ 1.0m³ / P. The pulse width is automatically set to 20ms or a square wave. Open collector output of a transistor with photoelectric isolation. The external power supply is not greater than 35V, and the maximum current of the collector when conducting is 50mA

Lining material:

material	Main performance
Polyurethane rubber	1. Very good wear resistance coal slurry, mud, ore slurry, etc. 2. Not resistant to acid, alkaline, and other corrosive or high-temperature media 3. There must be no negative pressure in the pipeline
Neoprene	1. Very good elasticity and wear resistance 2. Capable of measuring domestic sewage, non-corrosive industrial sewage PH value: in the range of 6/7/8, temperature below 80 ℃ liquid 3. There must be no negative pressure in the pipeline
Teflon F-4 PTFE	1. Boiling-resistant hydrochloric acid, sulfuric acid, nitric acid, aqua regia, concentrated alkali, and various organic solutions 2. Strong abrasion resistance and poor bonding performance 3. There must be no negative pressure in the pipeline
Perchloroethylene propylene F-46(PTFE)	1. Based on all functions of PTFE, the temperature of the non-corrosive liquid can be increased to 140 degrees 2. Not resistant to fuming nitric acid, butyl lithium 3. There must be no negative pressure in the pipeline
Silicone fluoride lining	Temperature resistance: 70 degrees, mainly high temperature. It can be used to measure hot water in heating systems and is not resistant to corrosion.

Electromagnetic flowmeter electrode material:

material	material Corrosion performance
316L electrode	Application: domestic/industrial water, sewage. PH value: within 6/7/8. Not applicable: corrosive media such as hydrofluoric acid / hydrochloric acid/chlorine/iodine
HB	Application: certain concentrations of hydrofluoric acid and other oxidizing acids, and non-oxidizing hydrochloric acid, alkali solution with a concentration of not less than 70% sodium hydroxide. PH value: within 5/6/7/8. Not applicable: Oxidizing acids such as nitric acid
HC	Application: corrosion resistance to oxidizing salts or environments containing other oxidants, especially to seawater. PH value is within 6/7/8/9. Not applicable: hydrochloric acid, dilute sulfuric acid, phosphoric acid, and other reducing acids and chlorides
Ti	Application: chloride, hypochlorite, seawater, oxidizing acid. PH value: within the range of 6/7/8/9/10. Not applicable: hydrochloric acid, sulfuric acid, and other acidic media
Ta	Application: concentrated hydrochloric acid, nitric acid, sulfuric acid, and other acid liquids, including boiling hydrochloric acid and nitric acid. PH value: within 3/4/5/6. Not applicable: alkali, hydrofluoric acid, fuming sulfuric acid
Pt	Various acids, bases, and salts. Not included: Royal Water

                                                            Matching accuracy
                                                            ± 0.5% of market value, optional ± 0.2% or 1% of indicated value

                                                            Explosion-proof mark
                                                            Exs[ia]ia||cT5

                                                            Damping time constant
                                                            Continuous variable from 0 ~ 100s (90%) time grading optional

                                                            Communication
                                                            Optional RS232C or RS485 serial communication interface, HART communication protocol, with anti-lightning protection

                                                            Loss of power
                                                            The internal design of the instrument has a power-off clock, which can store 16 drop-out records (10 years)

                                                            Protection level
                                                            IP65

                                                            Main power
                                                            AC220V 50Hz /DC24V/3.6V

                                                            Power consumption
                                                            <15W (Supporting power consumption with sensors)

                                                            Counter
                                                            Forward total, reverse total

                                                            Display and buttons
                                                            Display in Chinese and English can display instantaneous flow, cumulative flow, and alarm display (excitation open circuit alarm, empty pipe alarm, flow limit alarm). 4 membrane touch switches for data sets

Electromagnetic Flow Meter Applications

Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine, and other industries
