TD93 750MM Fine Tube Diffuser Made in China

(0 reviews)

Get Price

(461) Views

(0) Contacts

1 - 99 sets
$10.00
100 - 999 sets
$9.80
>= 1000 sets
$9.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(2274) Views

(84) Contacts

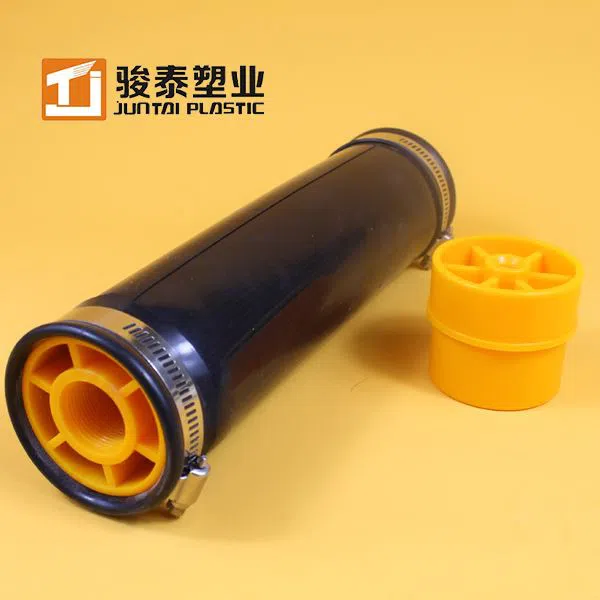

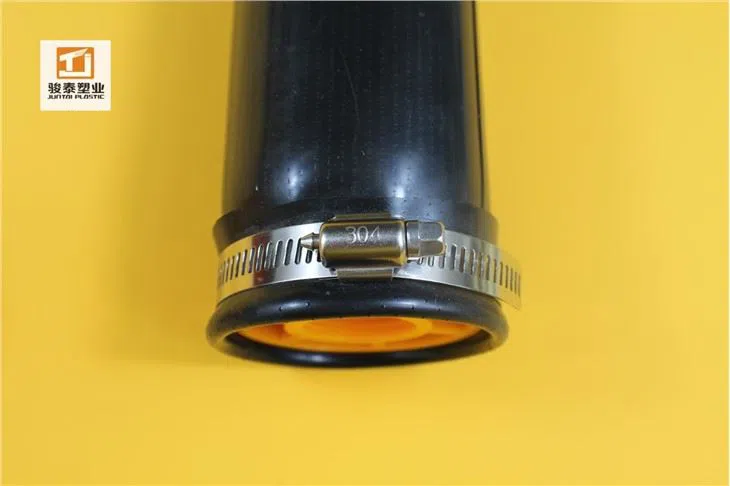

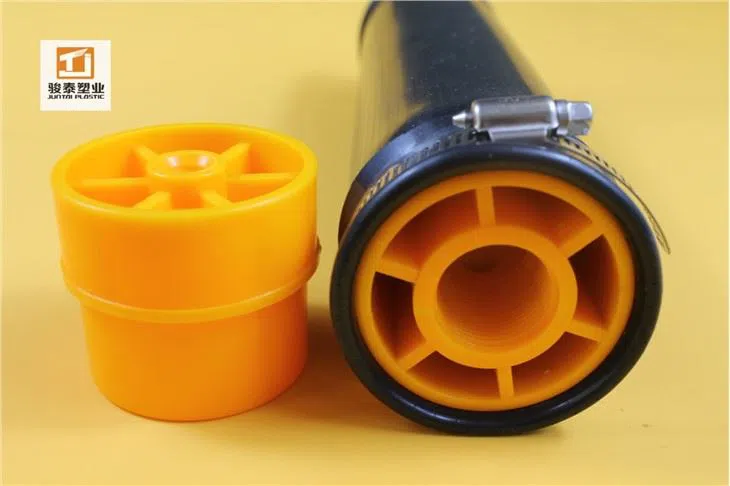

Tube Diffusers can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.

                                                            ltem number
                                                            TD93

                                                            Bubble type
                                                            Fine Bubble

                                                            Service Area(m2)
                                                            1.0-3.0

                                                            Tube diameter(mm)
                                                            93

                                                            Bubble Size(mm)
                                                            1-2

                                                            Material
                                                            Special Formula EPDM with UV Protector import from Germany  Tube material :Acrylonitrile-butadiene styrene with UV Protector (ABS)

                                                            Flow range(m3/h)
                                                            5-20

                                                            Length
                                                            500/750/1000mm

                                                            Connector
                                                            3/4NPT
