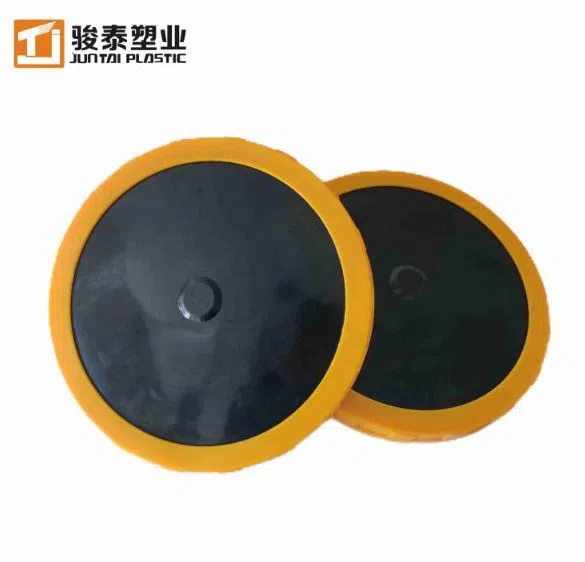

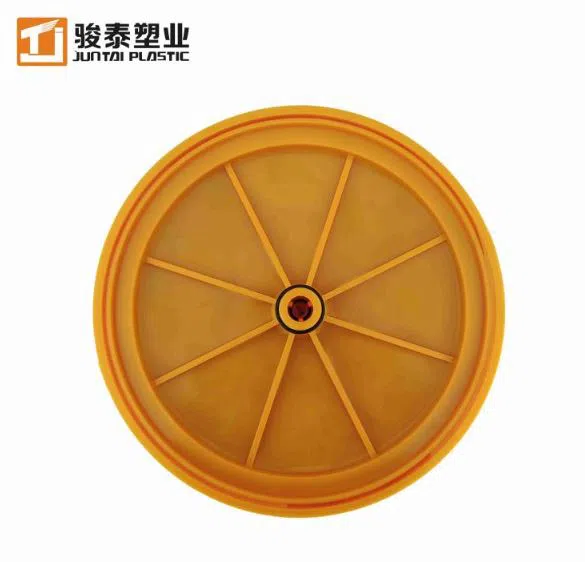

Juntai Disc Diffuser
Diffuser Disc Replacement aerates a pond or water feature to keep the water clean, and odor-free and to reduce ice. They have a hollow base enabling you to fill them with sand or gravel to make them sink to the bottom, which eliminates the need for bricks and straps. air diffusers come with either single, dual, or quad membranes that give airflow up to 12 CFM. The kit comes with all necessary outlets and adapters to set up the air diffusers and provide efficient, easy-to-install aeration all year round. Air Diffuser Manifolds: Air diffuser manifolds enable you to attach several air diffusers to one airline, to increase the aeration in a pond. The manifolds have an underlay made from polyethylene to prevent erosion from sediment in the mud. Air diffuser manifolds can even be custom-built for a variety of needs and requirements. The membranes will last for many years and provide even bubble distribution across all air diffusers. Standard airline connection is ½” poly tubing and air diffusers are 6” long. Tubular Diffuser: Tubular air diffusers are an alternative to membrane air diffusers; they are 24 inches long and have over 8000 bubble slots to ensure maximum aeration. The tubular air diffusers are also weighted to allow them to sink without needing to add weights. They have a built-in check valve and will provide years of service with very little maintenance. The tubular pond air diffuser will provide even air distribution throughout, keeping the lake clean and free from algae, and also helping to reduce the amount of ice that develops over winter.

                                                            Name
                                                            DD260

                                                            Design Flow(m3/h)
                                                            3.0-4.0

                                                            Bubble Type
                                                            Fine Bubble Membrane

                                                            Bubble size(mm)
                                                            1.0-2.0

                                                            Material
                                                            Formula EPDM From Laxess Germany

                                                            Connector
                                                            3/4" NPT Male thread

                                                            Carrier Plate
                                                            Formula Strengthen ABS

                                                            Item number
                                                            DD260

                                                            Use of Temperature("C)
                                                            0-80

                                                            Thickness of membrane(mm)
                                                            2士0.1

                                                            Flow Range(m3/h)
                                                            1.5-8.0

                                                            Standard Oxygen Transfer Efficiency(6m submerged)
                                                            ≥38%

                                                            Service Life(years)
                                                            5 to 10

                                                            Number of perforations(Pcs)
                                                            6600

Advantage
Diffuser Disc Replacement has different perforation types according to operating conditions and requirements
Precise slits for high oxygen input and low pressure drop
Active diameters from 184 mm, over 218 mm to 295 mm
Selection of standard and special materials: EPDM, silicone and FKM
Softener-free membrane made of silicone
