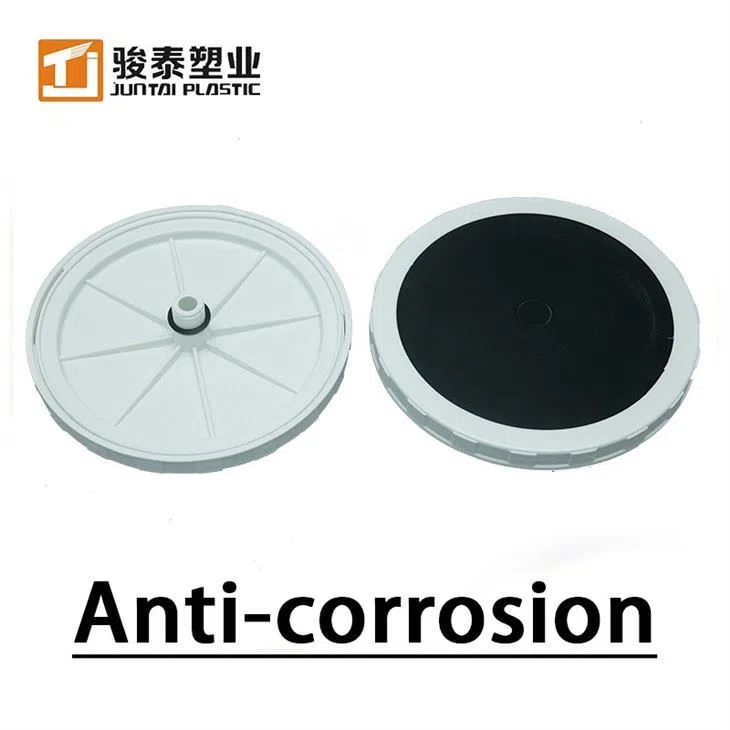

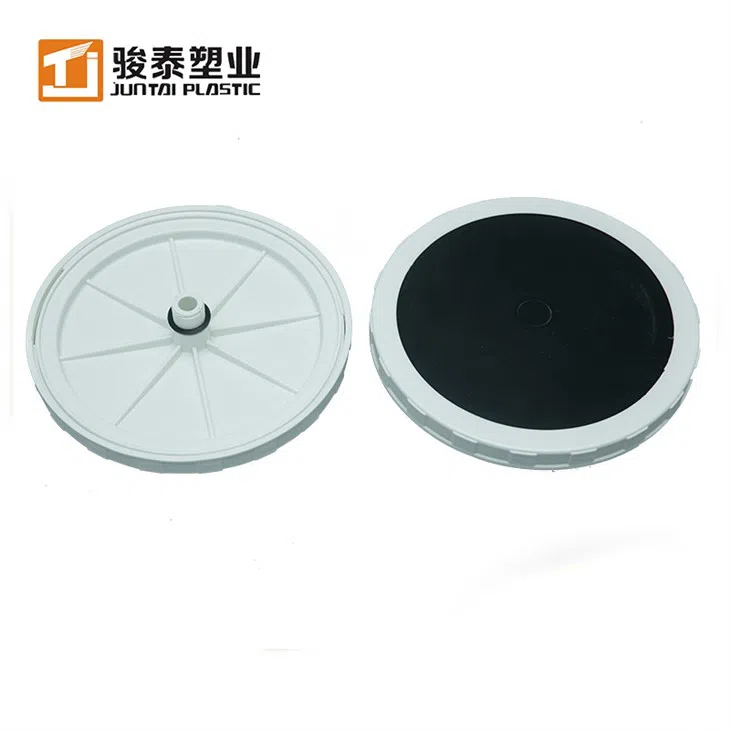

Micro Bubble Diffuser
An important element in biological treatment plants is the aeration system. The JetFlex® HD disc diffuser series is a fine-bubble aeration system operated by compressed air. It is used worldwide in municipal and industrial wastewater treatment plants.
Our disc aerators combine low design, installation, and maintenance costs with reliability, durability, and efficiency – for intermittent and continuous aeration. The disc aerators can be equipped with an optional check valve that prevents the backflow of sludge water into the pipeline even if the diaphragm is defective. To increase the efficiency of existing aeration systems, we also offer retrofit kits and exchange membranes. For thousands of years, communities have relied on the natural rolling action of rivers to transport and treat wastes. As the top water cascaded to the bottom and the bottom water rose to the top, oxygen was added by photosynthesis and surface absorption to the entire water column. High levels of bottom dissolved oxygen allowed for settled-out solids to be converted by naturally occurring organisms. Treatment was accomplished so efficiently by nature that clean water was readily available for the next community downstream. The distinguishing feature of fine bubble diffusers is the use of evenly spaced air releases instead of closely spaced holes or pores like those of other aeration manufacturers. fine bubble diffusers offer the highest, independently certified, oxygen transfer rate on the market and are guaranteed to last decades.

                                                            Bubble type
                                                            Fine Bubble Membrane

                                                            Use of Temperature(℃)
                                                            0-80

                                                            Material
                                                            Formula EPDM From Laxess Germany

                                                            Carrier Plate
                                                            Formula Strengthen ABS

                                                            Connector
                                                            3/4" NPT Male thread

                                                            Bubble size(mm)
                                                            1.0-2.0

                                                            Design Flow(m3/h)
                                                            1.5-2.5

                                                            Flow Range(m3/h)
                                                            1.0-5

                                                            Standard Oxygen Transfer Efficiency(6m submerged)
                                                            ≥38%

                                                            Service Area(m2)
                                                            0.2-0.64

                                                            Service Life(years)
                                                            3 to 7

                                                            Number of perforations(Pcs)
                                                            4400

                                                            Thickness of membrane(mm)
                                                            2±0.1

Municipal wastewater treatment.
Industrial wastewater treatment.
Clean water treatment.
Sludge stabilization.
Wastewater ozone diffusion.
Aeration of fish ponds.
Aeration of streams and lakes.

High oxygen transfer efficiency.
High resistance to clogging.
High resistance to corrosion.
Wide airflow range.
Low-pressure loss.
Low energy cost.
Easy installation.
Uniform fine bubble.
Backflow prevention.
Self-cleaning operation.
Intermittent operation capability.
Cost saving.
