Micro Bubble Diffuser For Aquarium

(0 reviews)

Get Price

(153) Views

(0) Contacts

1 - 120 pieces
$7.10
121 - 2000 pieces
$6.00
>= 2001 pieces
$4.10

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(2410) Views

(84) Contacts

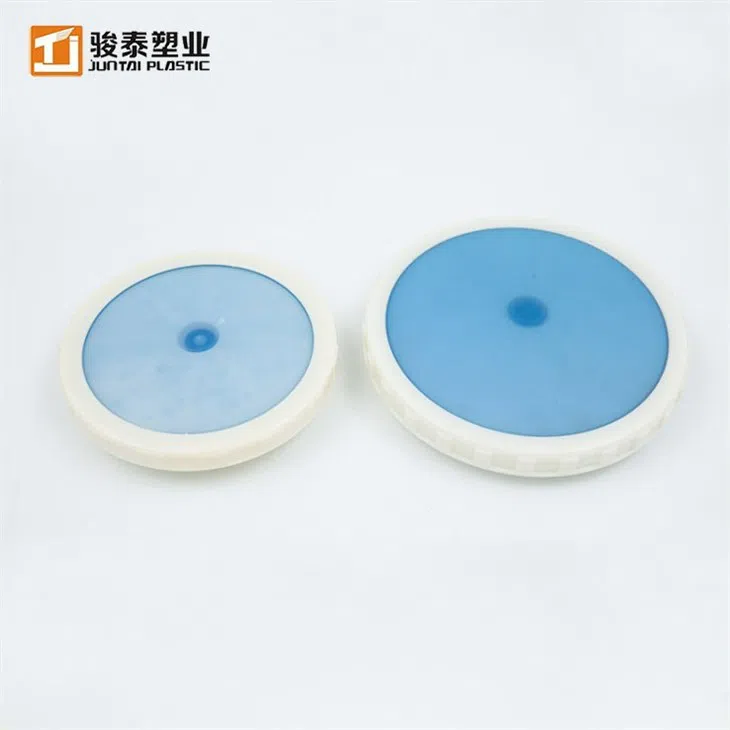

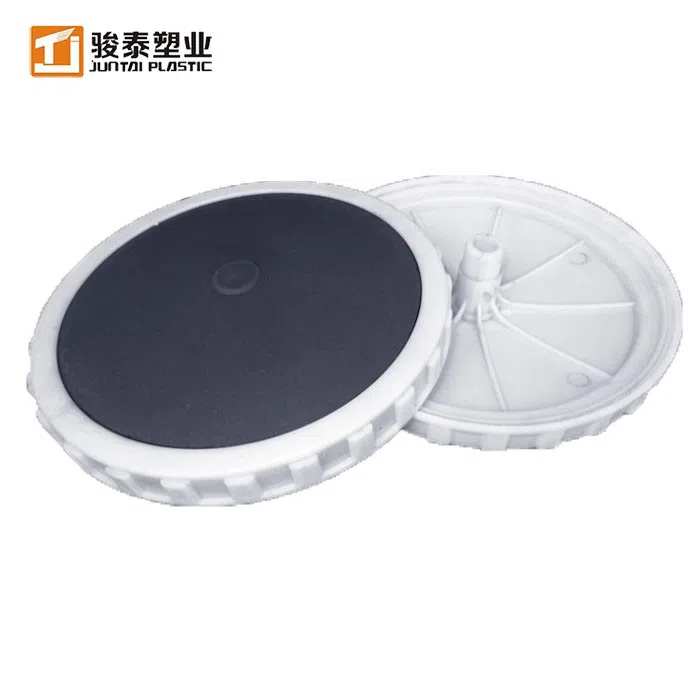

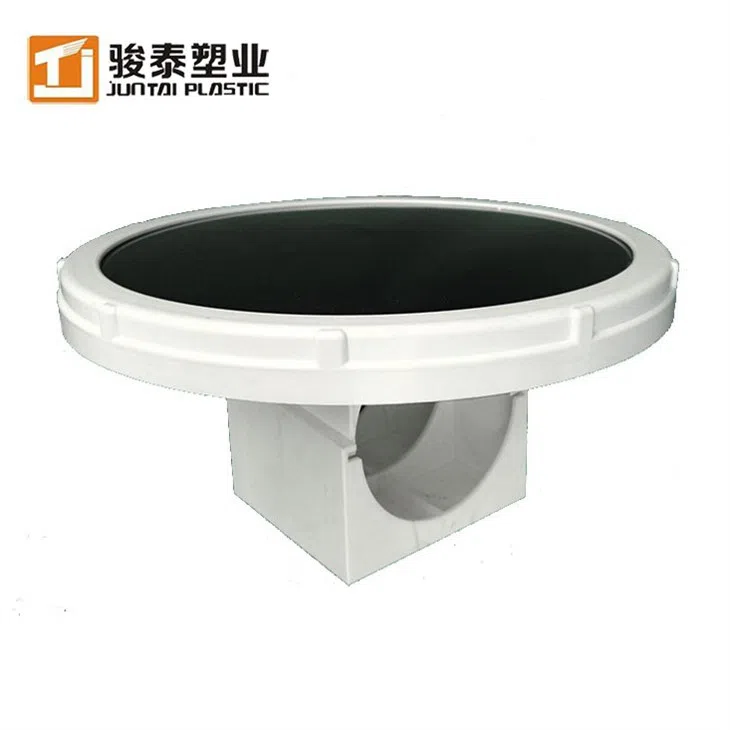

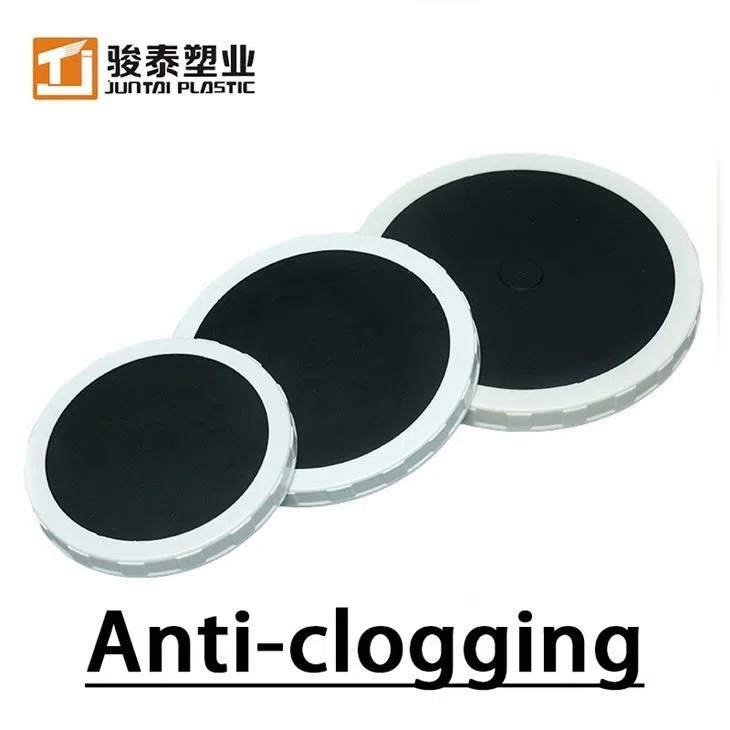

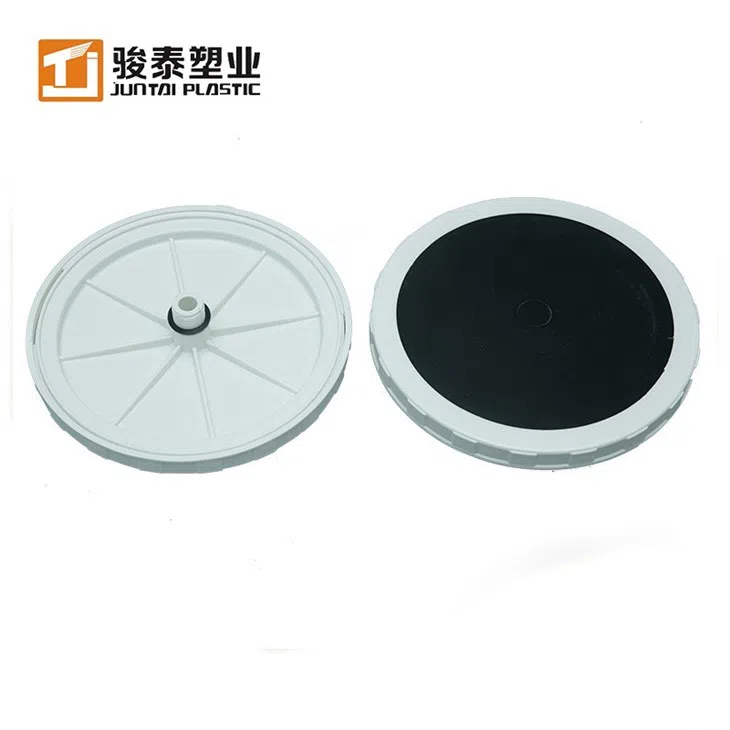

Micro Bubble Diffuser For Aquarium
Micro Bubble Diffuser For Aquarium offers a complete line of coarse and fine bubble diffused aeration systems. Our application and process engineers can provide complete technical support for system design and proper diffuser selection. A variety of diffuser materials are available to best suit the application. Heavy-duty piping and components for long-term, trouble-free operation. The unique dual pod concept saves installation time by eliminating 30-50% of the Micro Bubble Diffuser For the Aquarium. Allow for excellent process aeration efficiency. Installation is easy and provides superior process flexibility while reducing energy costs. Consist of an EPDM diaphragm that seals the piping system when air is turned off and can be used as PVC or stainless steel piping.Used in aerobic digesters or sludge holding tanks and offer the advantage of sealing the piping system when the air is turned off.Can be used in a variety of aeration and mixing applications. Diffusers and piping are available in 304L or 316L stainless steel. Choosing between fine bubble diffusers and coarse bubble diffusers has often been difficult because each holds distinct benefits over the other. Fine pores typically release bubbles with a diameter between 0 – 3 mm, while coarse bubble diffusers release bubbles with a diameter ranging from 3 – 50 mm.
There are several reasons why you should use diffusers instead of simply drilling holes in a length of pipe:
CLOGGING ISSUES
While drilling holes in pipes seems like a simple, pragmatic option, diffusers are designed to help keep the contents of your tank from entering your air supply lines and prevent clogging when the blower is not operating. The membranes on coarse and fine bubble diffusers contract and serve as a check valve when air pressure is not applied internally.
AIRFLOW CONTROL
Diffusers help balance air flow because the airflow from an engineered diffuser is both predictable and consistent from one to the next. Calculating actual airflow from a length of pipe with drilled holes would be a wild guess at best, and equalizing air discharge over the full length cannot be assured.
OXYGEN TRANSFER
Large numbers of small bubbles will transfer far more oxygen than a small number of large bubbles due to the increase in total bubble surface area. Diffusers generate smaller bubbles than those coming from holes drilled in pipes. Therefore, when using diffusers you can achieve the desired amount of oxygen transfer with less air (less energy demand). This means lower blower operating speeds and lower energy costs. This is especially true if you incorporate smaller bubble diffusers into your system.

                                                            Item number
                                                            DD260

                                                            Bubble type
                                                            Fine Bubble

                                                            Use of Temperature("C)
                                                            0-80

                                                            Membrane Material
                                                            Formula EPDM From Laxess Germany

                                                            Thickness of membrane(mm)
                                                            2士0.1

                                                            Carrier Plate
                                                            Formula Strengthen ABS

                                                            Number of perforations(Pcs)
                                                            6600

                                                            Connector
                                                            3/4" NPT Male thread

                                                            Service Life(years)
                                                            5 to 10

                                                            Bubble size(mm)
                                                            1.0-2.0

                                                            Service Area(m2)
                                                            0.25-1.0

                                                            Standard Oxygen Transfer Efficiency(6m submerged)
                                                            ≥38%

                                                            Design Flow(m3/h)
                                                            3.0-4.0

                                                            Flow Range(m3/h)
                                                            1.5-8.0
