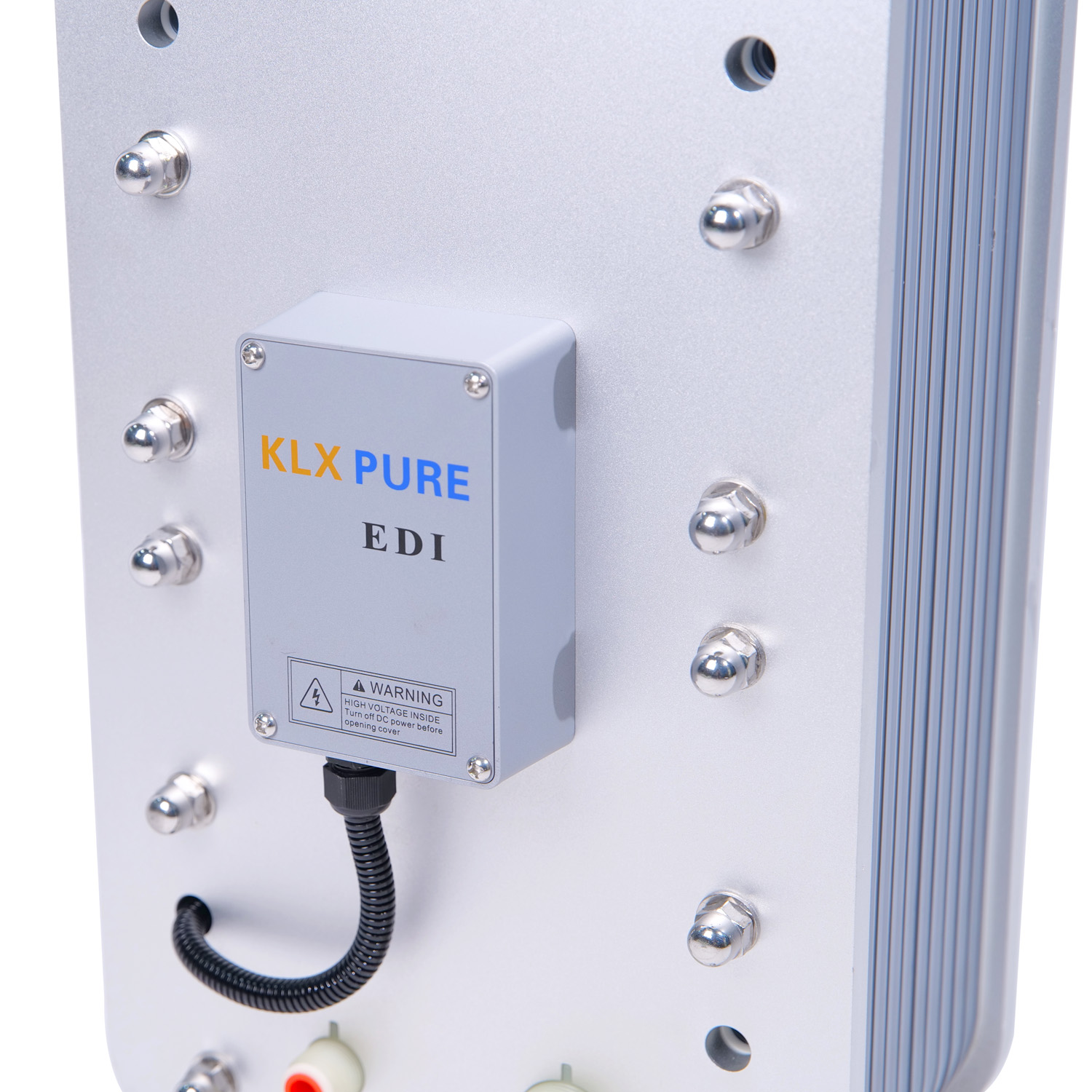

Electrodeionization - EDI Modules for Water Polishing

(0 reviews)

Get Price

(136) Views

(0) Contacts

1 - 9 sets 10 - 49 sets >= 50 sets
$1,350.00 $950.00 $660.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(1415) Views

(41) Contacts

Electro De-Ionization is currently the most advanced technology for ion exchange. With this technology (ultra)pure water can be produced continuously. This high-end technology can have an application in sectors such as Power plants, the process industry, and the pharmaceutical industry. An EDI unit is usually used as a post-treatment of Reverse Osmosis water. Electrodeionization (EDI) is an electrically-driven water treatment technology that uses electricity, ion exchange membranes, and resin to remove ionized species from water.

Item	HM-EDI-0.5	HM-EDI-1	HM-EDI-2	HM-EDI-3	HM-EDI-5
Product Flow (m³/h)	0.3-0.7	0.7-1.5	1.4-2.5	2.4-3.8	4.5-5.5
Recovery(%)	85-95	90-95	90-95	90-95	90-95
Resistivity(MΩ•Cm)	≥15	≥15	≥15	≥15	≥15
Voltage(DCV)	20-60	30-100	30-150	45-250	80-300
Voltage(DCA)	2-5	2-5	2-5	2-5	2-5
Inlet Pressure(Mpa)	0.10-0.3	0.10-0.3	0.15-0.4	0.15-0.4	0.15-0.4
Max Pressure(Mpa)	0.7	0.7	0.7	0.7	0.7
Fresh Water / Water Pipe Nozzle Size	DN25	DN25	DN25	DN25	DN25
Fresh Water Inlet / Outlet Nozzle Size	DN15	DN15	DN15	DN15	DN15

                                                            Resource water
                                                            RO water conductivity is less than 20 us.cm better than 10 us. cm

                                                            PH
                                                            6.0-9.0

                                                            Temperature
                                                            5-35’c

                                                            Hardness
                                                            Less than 0.5ppm

                                                            Organics
                                                            Max 0.5ppm, Recommend 0 ppm

                                                            Oxidizers
                                                            Max 0.05ppm

                                                            FE MN
                                                            Max 0.01ppm

                                                            Silica
                                                            Max 0.5ppm

                                                            Carbon Dioxide
                                                            max 5ppm

                                                            Oil
                                                            Not Detectable
