Water Purification System Treatment Plant for Ultra-pure Water

(0 reviews)

Get Price

(167) Views

(0) Contacts

1 - 9 Pieces
$2,304.00
>=10 Pieces
$2,079.00

Contact Company

Sichuan Jingtang Environmental Equipment Co., Ltd.

Sichuan, China

(782) Views

(2) Contacts

EDI(ELECTRODEIONIZATION) base one merging ED and ion exchanger , an economical way to produce high purity water continuously -no batch regeneration, no hazardous chemicals.
With the advanced technology ,easy operation, and environmental advantage, it is represent the directtion of this field.

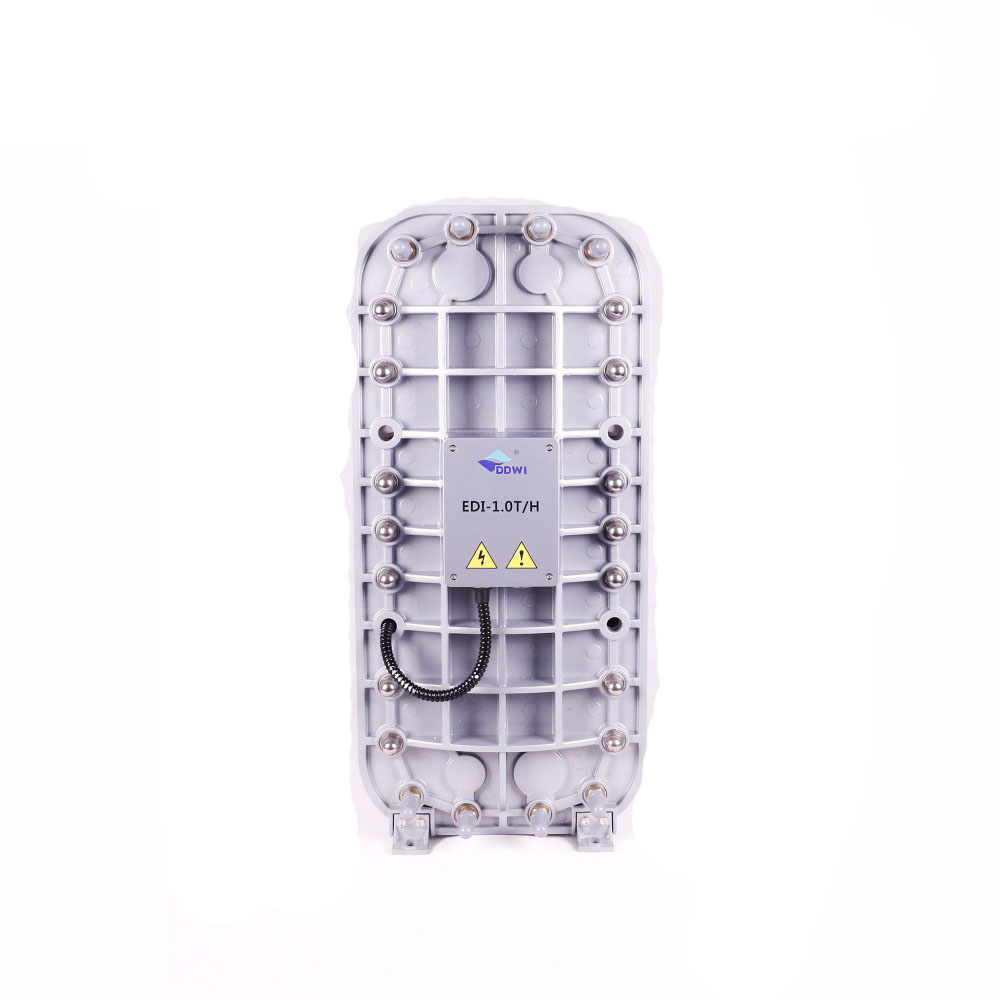

EDI equipment includes booster pump , edi module ,dc regulated power supply,flow meter and instrument, purify water is forced into EDI system by boost pumps, mixed ion exchange resin will continuously remove the impurities from the water by ion exchange.
Meanwhile , the electroly to stream flows past the anode and cathode in series, the applied current also drives a water splitting reaction which produces hydronnium ions and hydroxylions.
These ions continuously regenerate the ion exchange resin so that it will continue to remove impurities from the feed water.
Then re-displaced cation and anion from the feed water water will permeate into concentrate chamber by some times reverse osmosis.
As a result, a portion of concentrated is recycled back to keep the conductivity.

Requested of feed water
1 resource water , ro water conductivity less than 20 us.cm better than 10 us.cm
2 PH 6.0-9.0
3 temperature 5-35’c
4 hardness less than 0.5ppm
5 organics maxi 0.5ppm recommend 0 ppm
6 oxidizers max 0.05ppm
7 fe mn max 0.01ppm
8 silica max 0.5ppm
9 carbon dioxide max 5ppm
10 oil not detectable

                                                            Recovery rate
                                                            More than 90%

                                                            Brand Name
                                                            Frotec

                                                            High pressure pump
                                                            CNP

                                                            Material
                                                            Wood Package

                                                            Origin
                                                            Sichuan, China

                                                            Usage
                                                            Pharmaceutical water, Electronics and semiconductor w

                                                            Productivity
                                                            3000L/Hour

                                                            Function
                                                            Automatic Electrolysis Hypochlorite Disinfectant Water

                                                            Application
                                                            Pharmaceutical,Dialysis machine
