Automatic Booster System Coupled With Plastic Pump Head Jet Pump JGPXXX24C

(0 reviews)

Get Price

(33) Views

(0) Contacts

100 - 500 pieces 501 - 999 pieces
$88.00 $85.00

>= 1000 pieces

$82.00

Contact Company

Junhe Pumps Holding Co., Ltd.

Zhejiang, China

(609) Views

(1) Contacts

Automatic booster system coupled with plastic pump head jet pump with a built-in water filter on the head and 24L carbon steel pressure tank. This pump has equipped mechanical pressure control switch and pressure gauge. It works very silently and is reliable and particularly suitable to increase pressure from a water system.

Model No.	JGP65024C	JGP80024C
Rated Power	650W	800W
Max.Head	35m	38m
Max.flow rate	3000l/h	3300l/h
Work Pressure	1.3-2.6bar	1.5-3.0bar
Max.Noise(dB)	85	85
Dia of connecting pipe	G1"	G1"
Cable specification	HO7RN-F3G1.0mm²	HO7RN-F3G1.0mm²
Pressure tank volume	24L	24L
Qty of Impeller	1PC	1PC
Single gift box size	53x32x63cm	53x32x63cm
Single gross weight	13.2kg	14kg
Qty/20’GP	262pcs	262pcs

                                                            Warranty
                                                            1 years

                                                            Liquid Temperature
                                                            Up to 35 ℃

                                                            Customized support
                                                            OEM, ODM

                                                            Brand Name
                                                            OEM

                                                            Model Number
                                                            JGP130039C INOX

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            1.5-3.0bar

                                                            Structure
                                                            Single-stage centrifugal

                                                            Cable Length
                                                            1m

                                                            Outlet Size
                                                            G1"

                                                            Voltage
                                                            230V~50Hz

                                                            Power
                                                            1300W(900W/1100W/1300W)

                                                            Color
                                                            Green/Accept customization

                                                            Pressure Tank Volume
                                                            24L

                                                            Max.Head
                                                            50m(42m/45m/50m)

                                                            Max.Noise(dB)
                                                            85

                                                            Suction Height
                                                            8M

                                                            Cable Specification
                                                            HO5RN-F3G1.0mm²

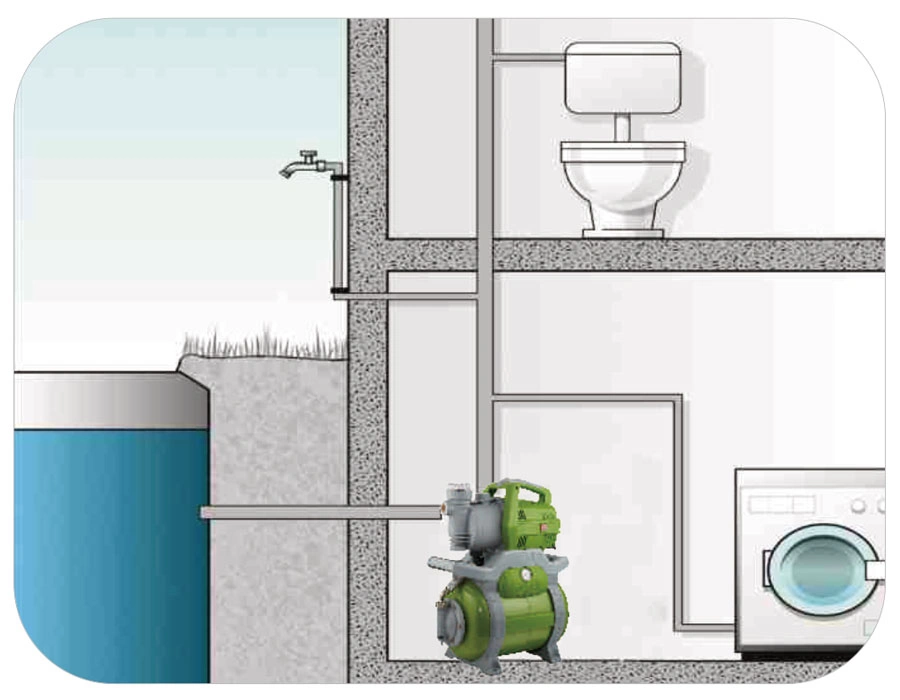

Applications of Automatic Head Jet Pump

Developing World Water Solutions
Family Homes
Washing and Cleaning
wastewater treatment
Water Distribution
Water Treatment Solutions
