Standard Features:

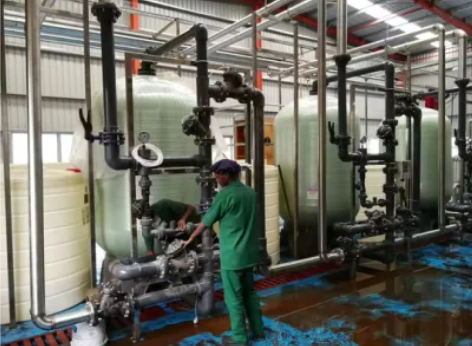

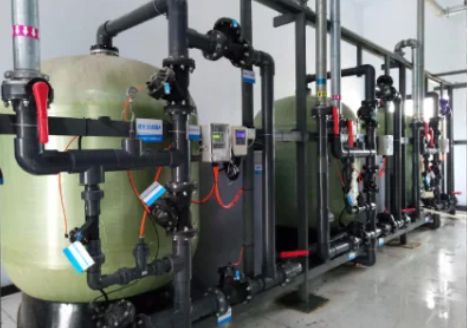

The JKmatic Multi-valve system Industrial Steel Tank Automatic Water Softener (JKNQ Series) are designed as fully automatic units either with timer or meter control. The timer control initiates softener regeneration at any predetermined time - on any or every day. The metered models start regeneration based on the total gallons used.
Jkmatic Multi-valve system could either use Silica Sand, Active Carbon, Multimedia to make a multimedia water filter system. Or anion and ion for a exchange water Softener. It can be managed to multiple tanks system based on different flow rate, maximum 9 tanks, flow rate from minimum 6 tons to maximum 720 tons. The system could be automatically controlled by our special designed controller, it could . The new designed full bed technology could save up regeneration use water 30% and salt 30%-50%.
The automatic regeneration controller features a choice of 7 or 12 day calendar wheels. Time of regeneration and length of time for each regeneration cycle are fully adjustable. Also adopt flow rate measuring method to precisely measure total water output, increase the utilization efficiency of media and resin.
The under drain utilizes either a hub & lateral or a header & lateral system to evenly distribute water and prevent resin loss, and to insure minimal pressure drop at peak flow rates.

                                                            Capacity
                                                            1m3-200m3/hour

                                                            Working pressure
                                                            0.2-0.6MPA

                                                            Control method
                                                            Manual, Autmatic,PLC

                                                            Softener tank
                                                            FRP or SS304
