Seawater Desalination Treatment System

(0 reviews)

Get Price

(150) Views

(0) Contacts

1 set/sets
$33,000.00 - $200,000.00

Contact Company

Shandong Zhaojin Motian Co., Ltd.

Shandong, China

(2208) Views

(4) Contacts

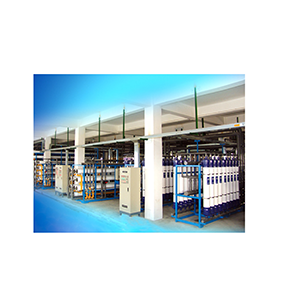

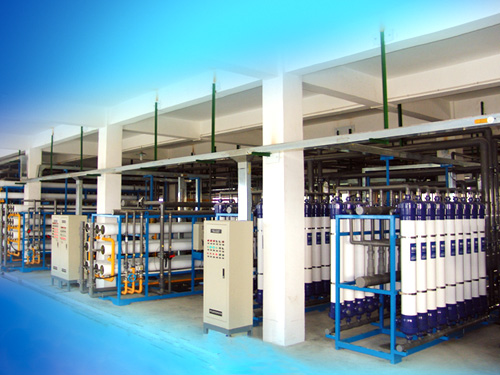

In the field of water desalination processing, zhaojin Motian adopted the unique technology combining ultrafiltration and reverse osmosis.
By way of coagulation and first UF pretreatment stage for seawater, to ensure that the pretreatment effluent SDI value; And then through the core of "ultrafiltration + reverse osmosis technology to remove salt dissolved in water, boron element, such as forming devoid of impurities of purified water

                                                            Warranty of core components
                                                            1 Year

                                                            Material
                                                            Stainless Teel

                                                            Core Components
                                                            membrane

                                                            Manganese (Mn2+)
                                                            < 0.1 mg/L

                                                            Place of Origin
                                                            Shandong, China

                                                            Ferrous (Fe2+)
                                                            < 0.1 mg/L

                                                            Brand Name
                                                            Motian

                                                            Turbidity
                                                            < 1 NTU

                                                            COD
                                                            < 10 mg/L

                                                            Size
                                                            10*3*2.5m

                                                            Temperature
                                                            5-40 ° C

                                                            Power
                                                            220-415v

                                                            Warranty
                                                            1 Year

                                                            Type
                                                            Seawater Desalination

                                                            Salinity (TDS)
                                                            20,000-45,000 mg/L

Seawater and brackish water desalination
Boiler water treatment in the power generation industry
Ultrapure water preparation in the electronics and semiconductor industry
Purified water used for the pharmaceutical industry
Pure water for the food and beverage industry
Commercial Reverse Osmosis Water Filter
Wastewater treatment for metallurgical industry, light industry, electroplating industry, and leather manufacturing industry.

Separated design for CPU, MU, and chemical cleaning unit simplify the use of the system, user don’t need to take care of reservations or maintenance of membrane.
Lightweight, the CPU could be lifted by 2 people, and MU could be carried by 1 person.
5-micron absolute filter ensures the safe operation of the high-pressure pump and RO membrane.
Super duplex high-pressure pump using axial piston principle from Danfoss, higher efficient, lighter, more compact than common plunger pump, and the service life is up to 3 years.
A high-pressure hose lowers the vibration and noise level, simplifying the pipe connection.
Non-welding duplex pipe and fittings, long life and highly corrosion resistant, no need to worry about the corrosion for long-term contact with seawater.
High salt rejection RO membrane from Dow.
The carbon filter is used to remove the possible hazardous organic compound in the product water.
Baking varnish housing makes the system more fashionable and better looking.
SS304 frame with baking varnish paint avoids the corrosion from salt fog and leaking.
