Irrigation RO And UF Water Filtration Systems

(0 reviews)

(677) Views

(0) Contacts

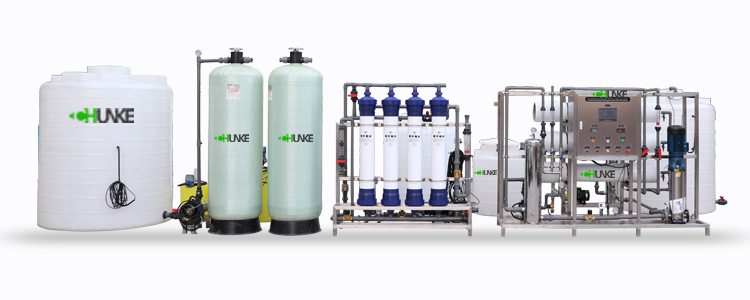

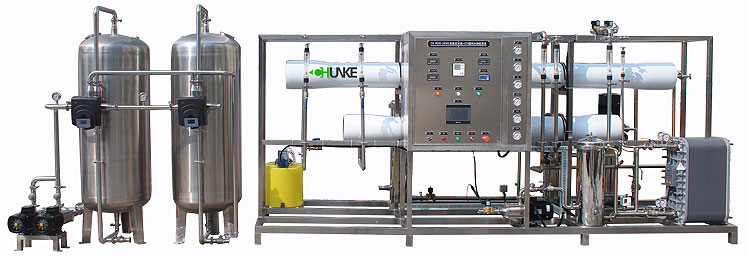

Irrigation RO & UF Water Filtration Systems are used to remove salt and purify water. This system consists of a booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), SS304 cartridge filter housing, chemical dosing systems, high-pressure pump, FRP membrane pressure vessel, 4040 or 8040 membranes, and optional UF membranes, control panel, and touch screen control. Material and parts brands can be changed as regards raw water quality and customer demand.

Contact Company

Guangzhou Chunke Environmental Technology Co. Ltd

Anhui, China

(2405) Views

(27) Contacts

From the touch screen panel, you can see all system flow diagrams and automatic or manual control of the system. Membranes do not allow small particles, viruses, or bacteria to pass as a result your water becomes very clean and safe.Chunke as a water treatment solutions company, design customized irrigation water treatment system which helps you to increase the efficiency of production. For your production you need water, some sources have water but it is salty and it is not usable. Chunke as a water treatment solutions company makes your water usable and effective for your vegetables, fruits, corn…etc. production. Our R&D team checks your raw water analysis report and uses the most effective water technologies and solutions for you.
Typically, Irrigation RO & UF Water Filtration Systems range between 2m3/day to 7500m3/day. Irrigation industrial filtration plant design depends on raw water quality. We can use UF Membrane System, Reverse Osmosis water technologies and solutions, or if necessary, pretreatment. Chunke is a water treatment solutions company that design and produce a different kind of RO water treatment plant. Our newest water technologies and solutions are also used in the agriculture process. For irrigation, we have a special water treatment system. Irrigation RO & UF Water Filtration Systems are started from a booster pump, which feeds raw water to pretreatment tanks. Depending on capacity pretreatment tank size and numbers can be changed. Because of High TDS (Total Dissolved Solid) we usually use FRP and Carbon Steel Tanks but we can check your raw water source analysis and we can suggest alternative materials. If salt content and TDS are high, because of the corrosion, we are using FRP or Carbon Steel material for pretreatment tanks.

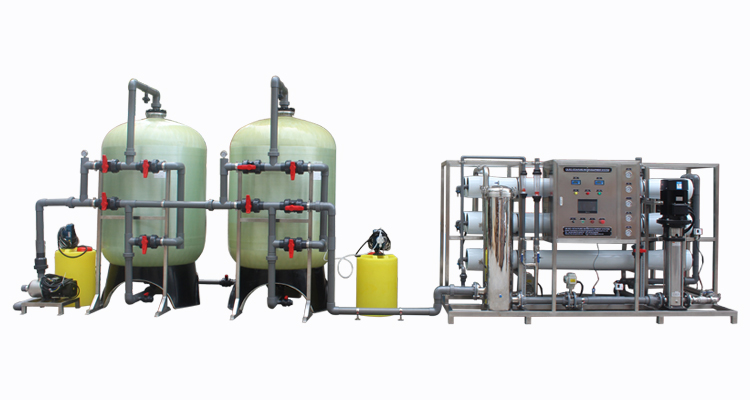

Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank, and Softener Tank which has ion exchange resin inside, they are very important for RO UF industrial filtration plant. Pretreatment is used to remove a large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine, sediment, organic contaminants, and odors. In pretreatment, we can control the following manual or automatic for irrigation industrial filtration plant. Some cases in the pretreatment side, we do not use it after pretreatment water goes to the cartridge filter housing, we call it a security filter, most of applications we are using stainless steel 304 or 316 material, but if the water is very salty like brackish or seawater, we can use carbon steel or FRP or PVC Plastic Cartridge Filter Housing or Bag Filter Housing.

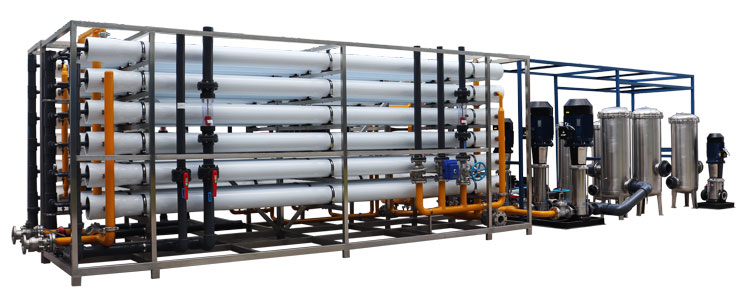

There is a 1µm or 5 µm PP filter in the cartridge filter housing. In some projects instead of pretreatment filter tanks we are using UF Ultrafiltration System, UF Filtration does not reduce TDS but removes bigger particles and impurities. Chunke as a water treatment solutions company chooses a suitable industrial filtration plant. After the cartridge filter housing, water goes to the membrane pressure vessel with High-Pressure Pump, you have a brand option for High-Pressure Pump and it allows you to adjust your budget. The membrane housing shell inside depends on capacity we have 4040 or 8040 Membranes. For most of our projects, we are using DOW Filmtec, Toray, Vontron, Hydranautics, and LG brands. activated carbon and softener filtration tanks. Our water technologies and solutions are flexible, we can choose the best solution for your application. Membranes, in industrial Brackish Water Desalination Plants, are the most important part. They block if the size of the part is bigger than 0.001µm and the molecular weight is up to 150-250Dalton. It consists of impurities, particles, sugars, proteins, bacteria, dyes, and organic and inorganic solids.
Also, the Brackish Water Treatment Plant system can have chemical dosing at pretreatment or post-treatment, like anti-scaling (antiscalant), antifouling, pH adjustment, Sterilization & Disinfection chemicals. In Chunke when we check customer water analysis report, sometimes because of scaling and fouling problems, we can use CIP (Clean in Place) System, which washes the membrane in membrane housing and make the membrane life longer. CIP cleaning system is a good choice for water technologies and solutions.
Electrical Power of Industrial Filtration Plant for Irrigation
For industrial Brackish Water Treatment Plant needs 220-380V/50Hz/60Hz. For bigger capacity, because of the high-pressure pump, it needs 380V 50/60Hz. As regards your Brackish Water RO Plant machine design, we will check your electrical supply and decide to fix the power for you. Chunke as water treatment solutions company can also help you to customize the pump power supply.

Irrigation is the artificial application of water to the soil through various systems of tubes, pumps, and sprays.
Irrigation systems are usually used in areas where rain is irregular or less.

Standard Futers	Available Options
Programmable PLC Control	Automatic Flush
Motor Starter	Ozone Generator
Raw Water Feeding/Booster Pump	UV Sterilizer
Stainless Steel Cartridge Filter Housing	Chemical Dosing
FRP Membrane Housing	pH control monitor
Mitsibushi Processor Control	ORP Control monitor
Low-Pressure Switch	Remote Control
High-Pressure Switch	Pretreatment System
Liquid-filled pressure gauge	Post Deionization Unit
Stainless Steel 304 Frame	CIP Membrane cleaning system
Permeate Conductivity Monitor	Touch Screen Control
Raw Water Conductivity Monitor	Tank Level Switch
Control Valves	Customer Logo
Membrane	UF Ultrafiltration Membrane
Stainless Steel/UPVC Piping
