RO EDI Water Treatment System

(0 reviews)

6600 USD

(340) Views

(0) Contacts

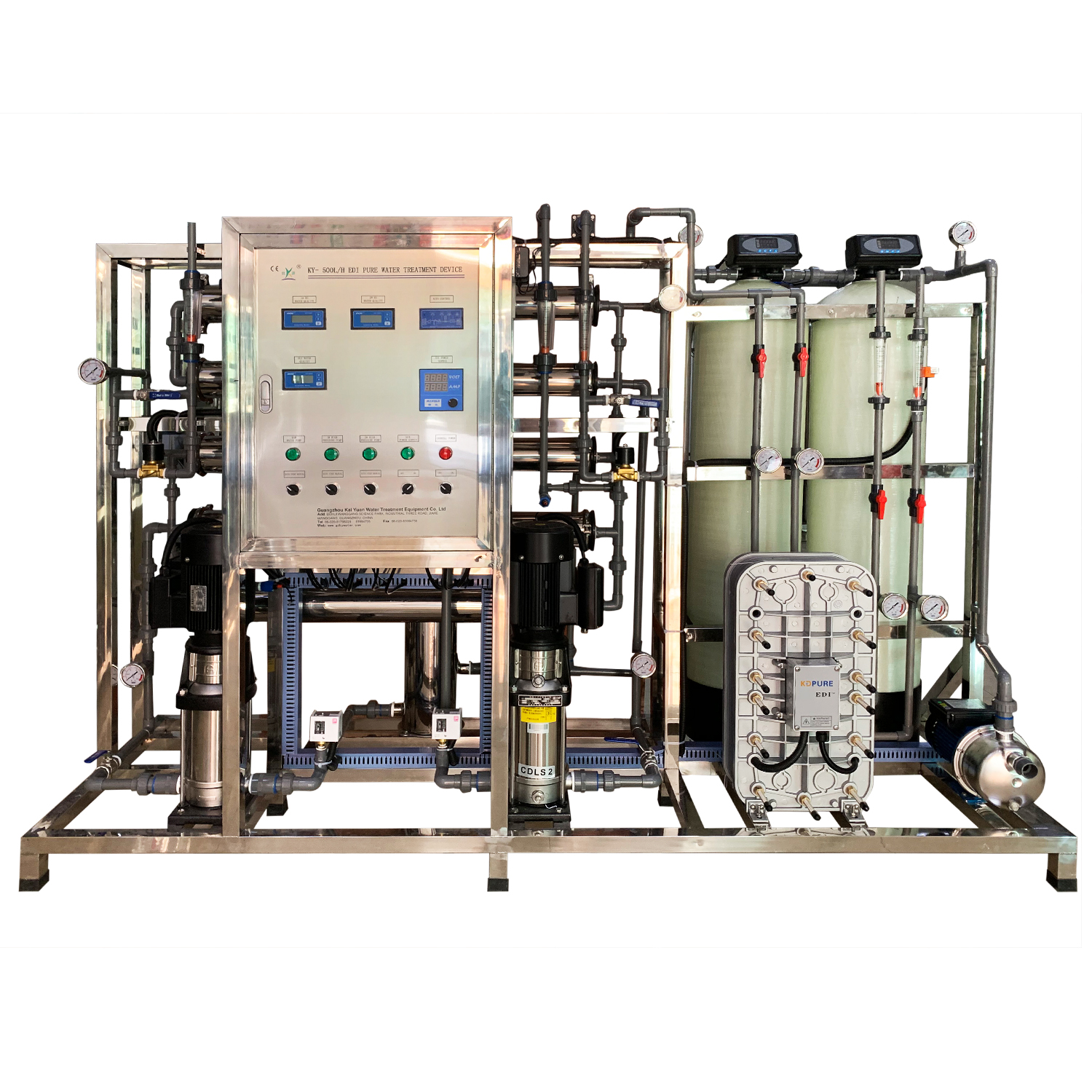

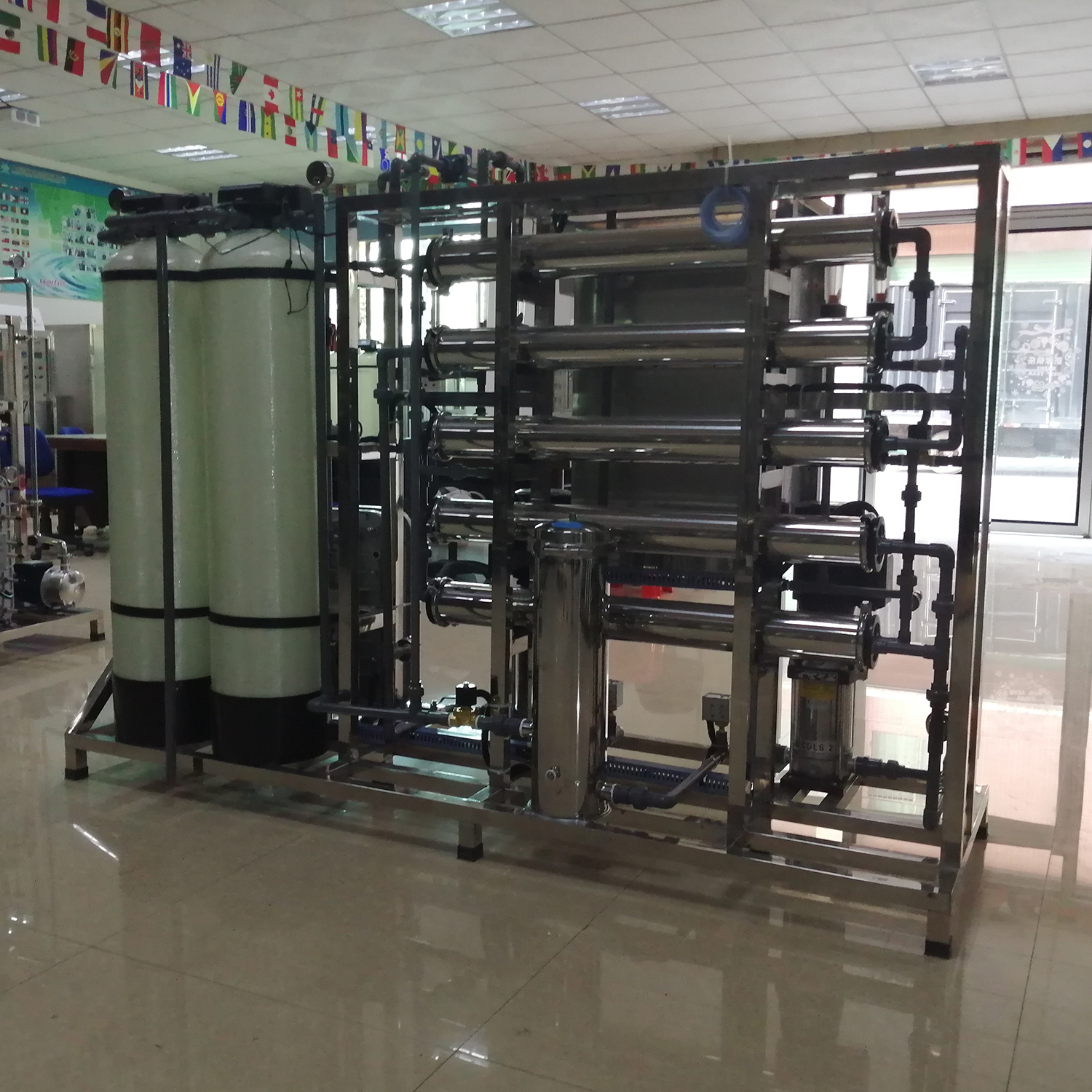

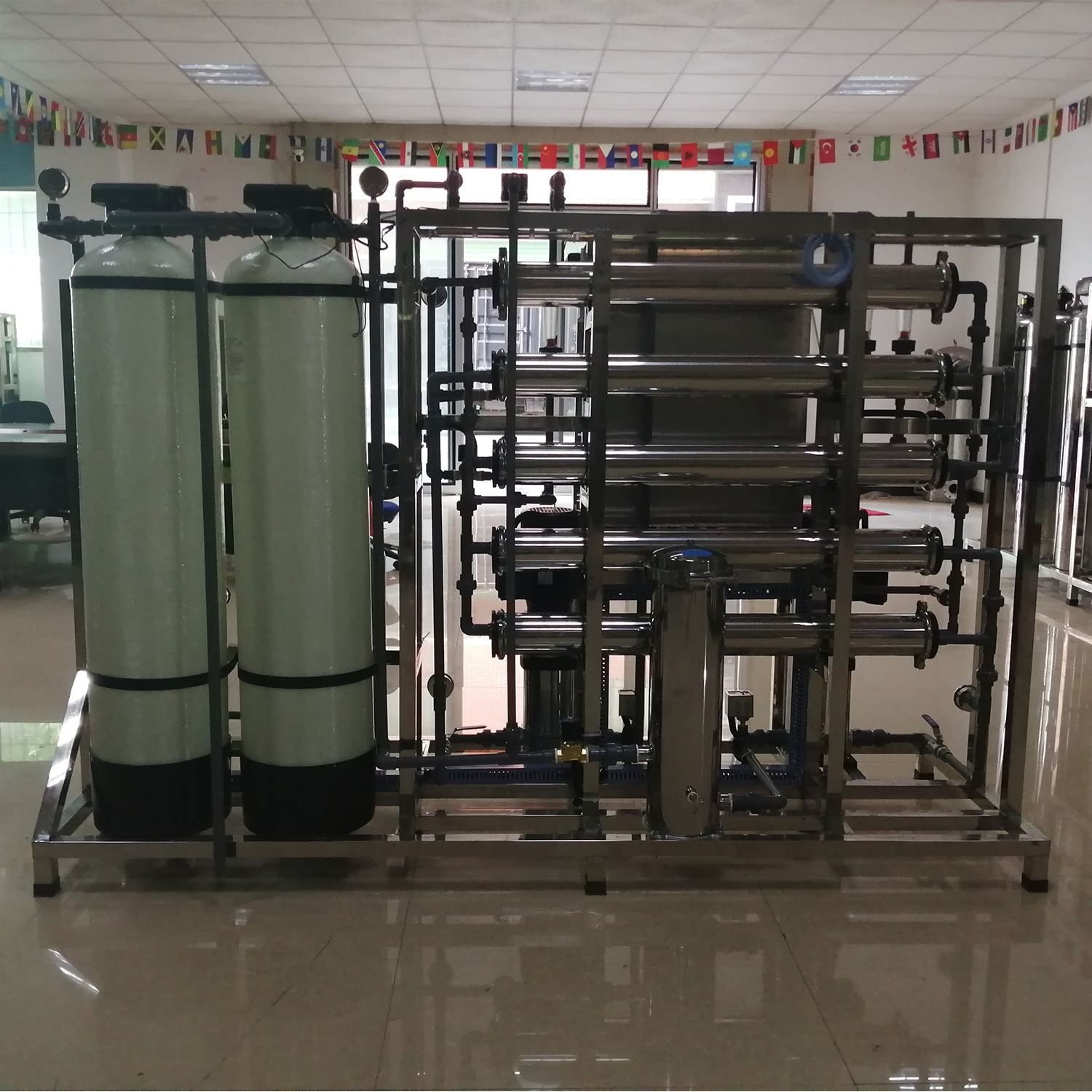

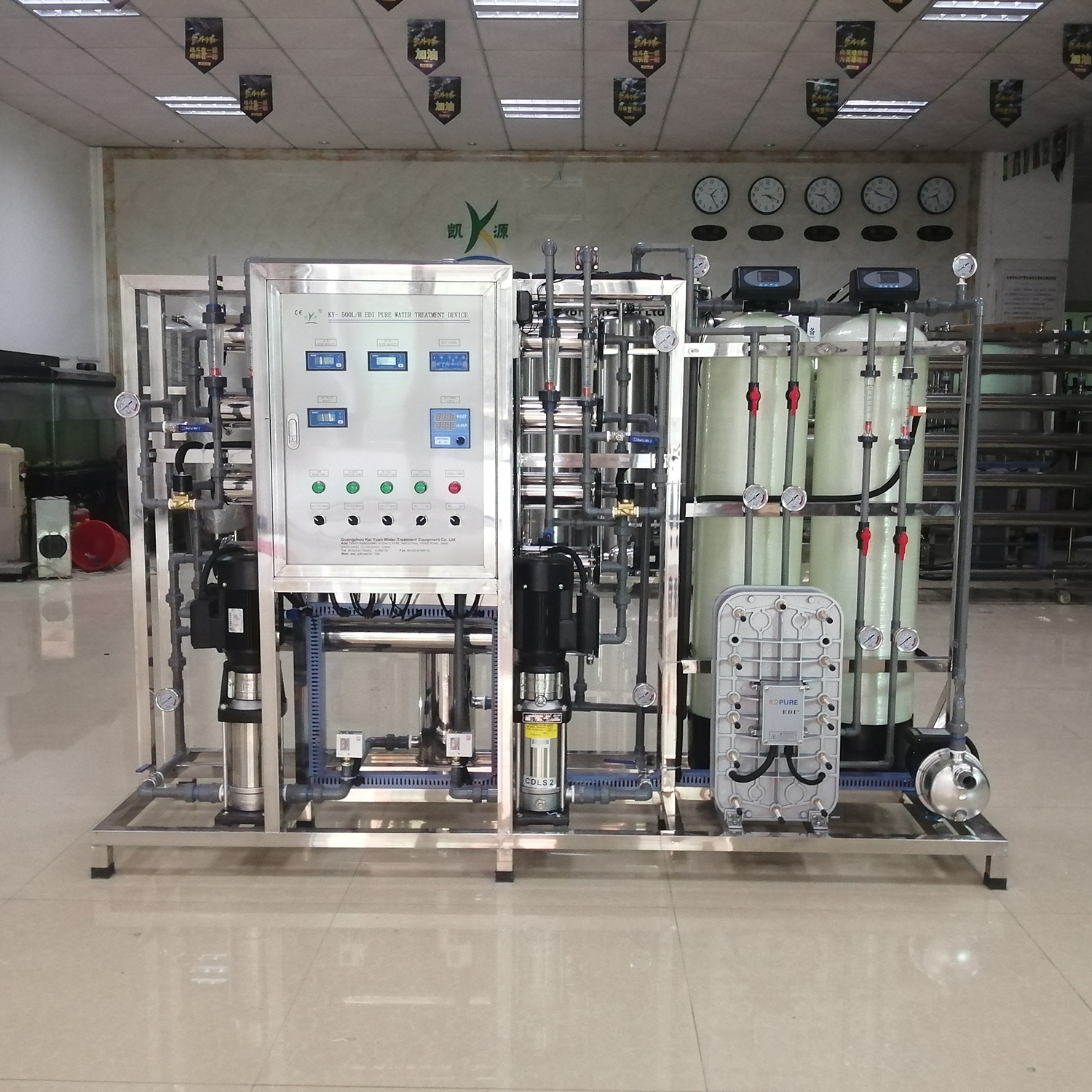

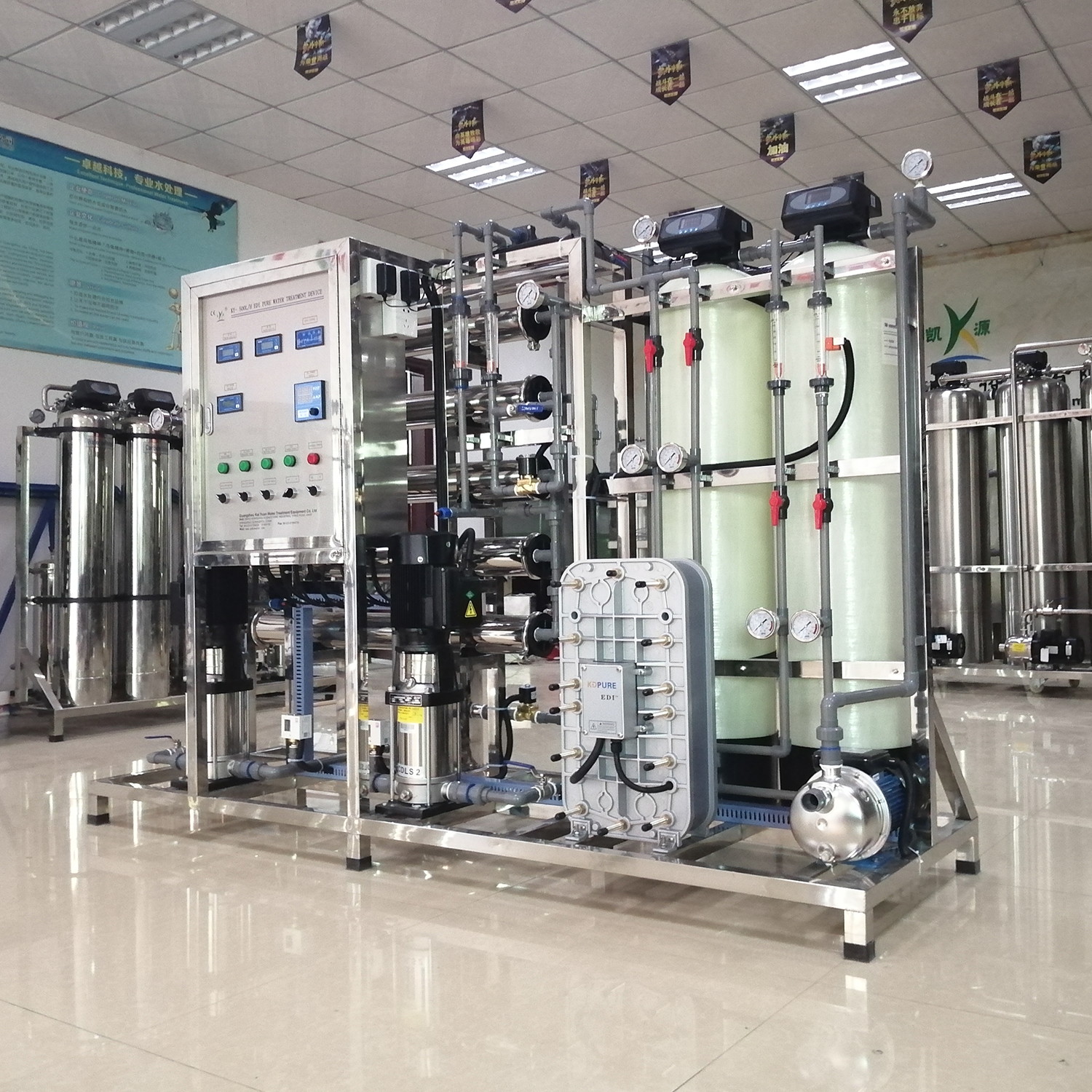

500lph Double Stage Ultrapure RO EDI Water Treatment System For Electronic Semiconductor/ Hemodialysis

$6,600.00 - $6,800.00/1 unit/units

Contact Company

Guangzhou Kaiyuan Water Treatment Equipment Co., Ltd.

Guangdong, China

(2272) Views

(18) Contacts

Two-stage RO system

This water treatment system uses mechanical filters, an activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine, and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water.
Most of the dissolved salts, bacteria, hot stream, and so on, to ensure finished water quality standards.
If raw water conductivity is less than 300uS/cm, first stage output is less than 10uS/cm, the two-stage output is 2uS/cm

EDI system

EDI is also known as electric desalination.
It is a new ultra-pure water technology that gradually developed in the 20th century.
EDI equipment combined electro dialysis technology and ion exchange technology.
It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin, under the direct current electric field to make ion-directed migration.
Finally to make deep desalination of water.
At the same time, hydrogen ions and hydroxide ions which are produced when water ionizes will regenerate ion exchange resin.
So if use EDI equipment, no need for acid and alkali chemicals to do any regeneration, and it can produce ultra-pure water continuously.
EDI input water must be less than 10uS/cm, and output water quality less than 0.2uS/cm.

                                                            Warranty of core components:
                                                            1 Year

                                                            Core Components:
                                                            Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine

                                                            Size:
                                                            RO rack: 2440*650*1750mm

                                                            RO Membrane:
                                                            DOW Filmtec

                                                            Material:

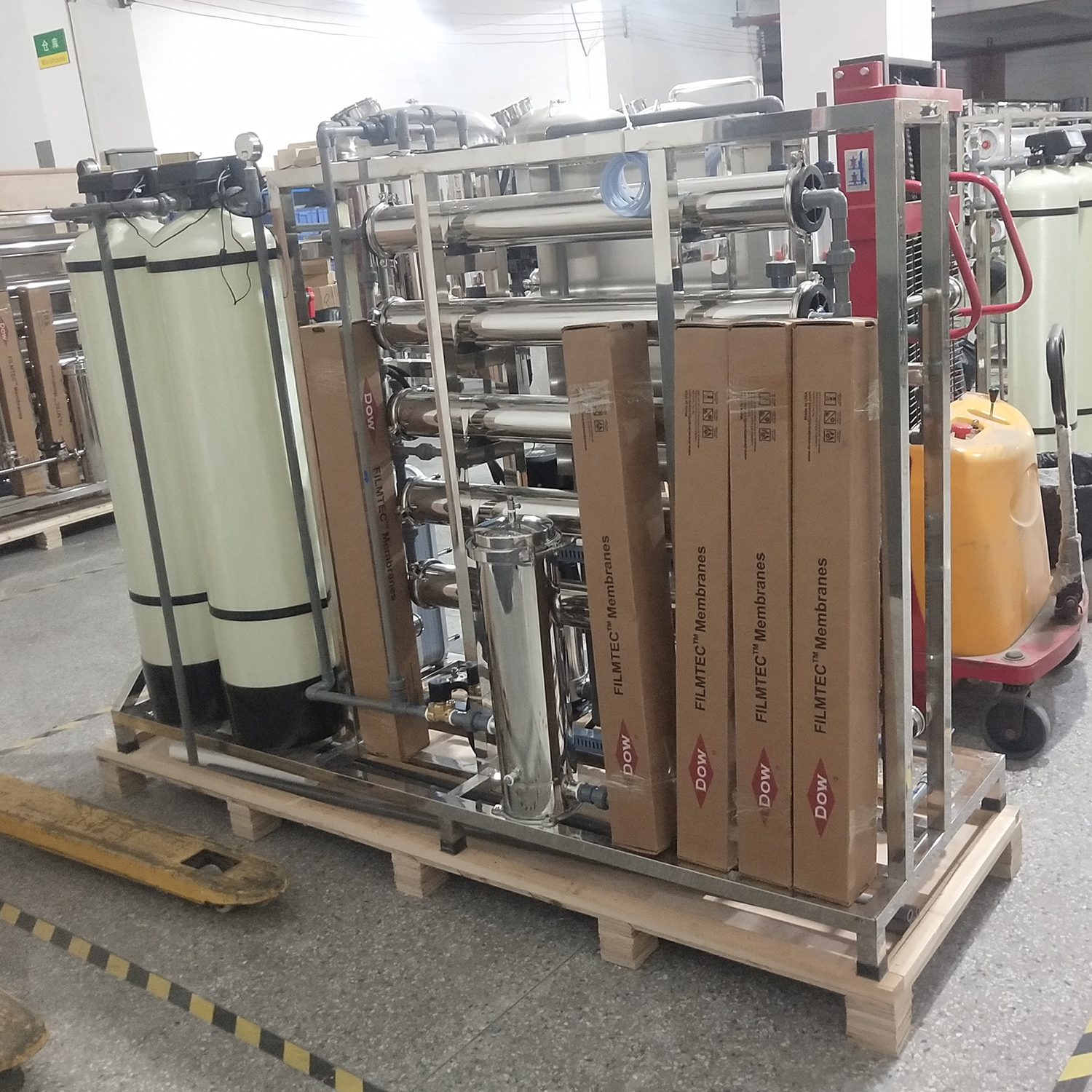

                                                            Wooden packaging

                                                            Weight:
                                                            350KG

                                                            Power:
                                                            3.0kw

                                                            Control Valve:
                                                            Automatic / Manual

                                                            Warranty:
                                                            1 Year

                                                            Pretreatment filter:
                                                            Quartz sand/ activated carbon/ PP filter

                                                            Application:
                                                            Electronic Semiconductor/ Hemodialysis

                                                            Productivity:
                                                            500L/Hour

                                                            Pump optional:
                                                            Ningxiao/ CNP/ Grandfos

                                                            Pipeline fittings:
                                                            U-PVC/ SUS304/ SUS316

                                                            Electrical power:
                                                            220V/ 380V, 1ph/3ph, 500Hz/60Hz

                                                            Function:
                                                            Water purifier

                                                            Tank Size:
                                                            350*1450mm
