RO water filter system

(0 reviews)

60000 USD

(708) Views

(0) Contacts

KYRO-30000 30m3/h RO water filter system reverse osmosis plant

$60,000.00 - $75,000.00/1 Set/Sets

Contact Company

Guangzhou Kaiyuan Water Treatment Equipment Co., Ltd.

Guangdong, China

(5318) Views

(84) Contacts

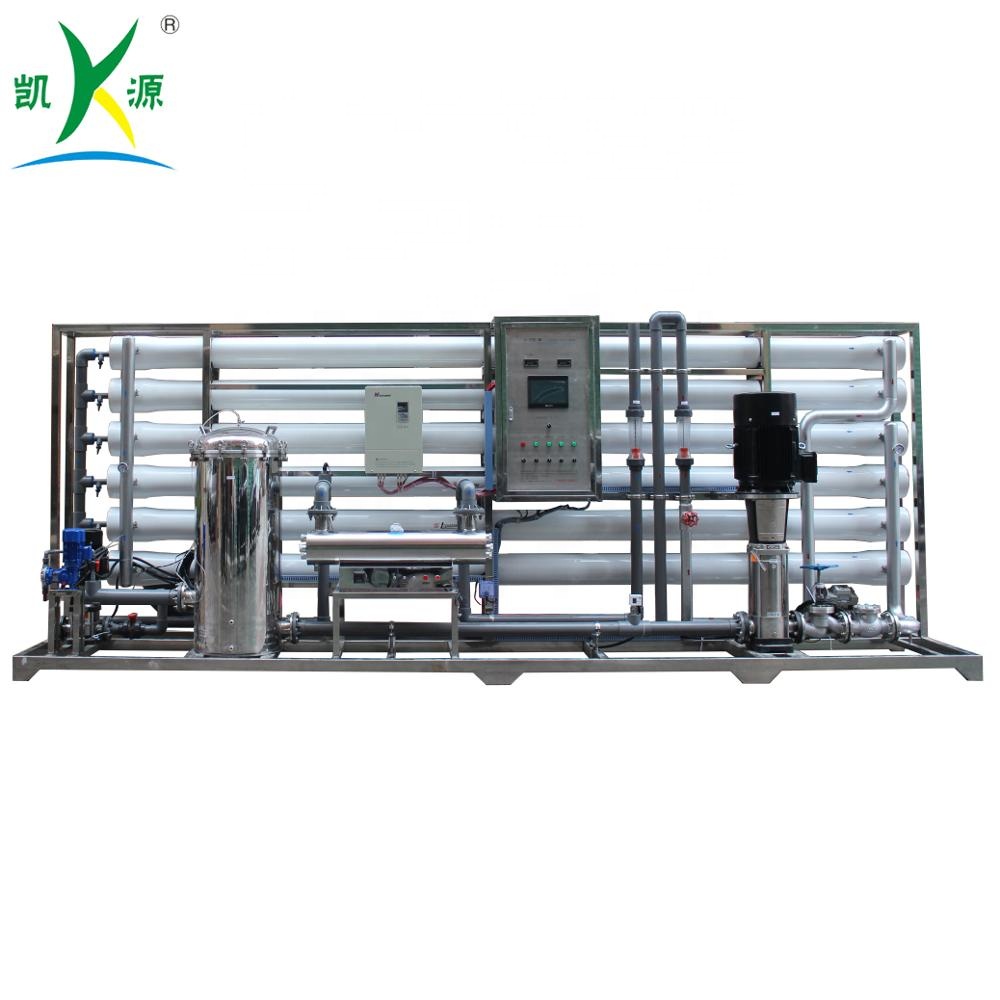

30000L/H Underground Salt Water Treatment RO Machine in Container

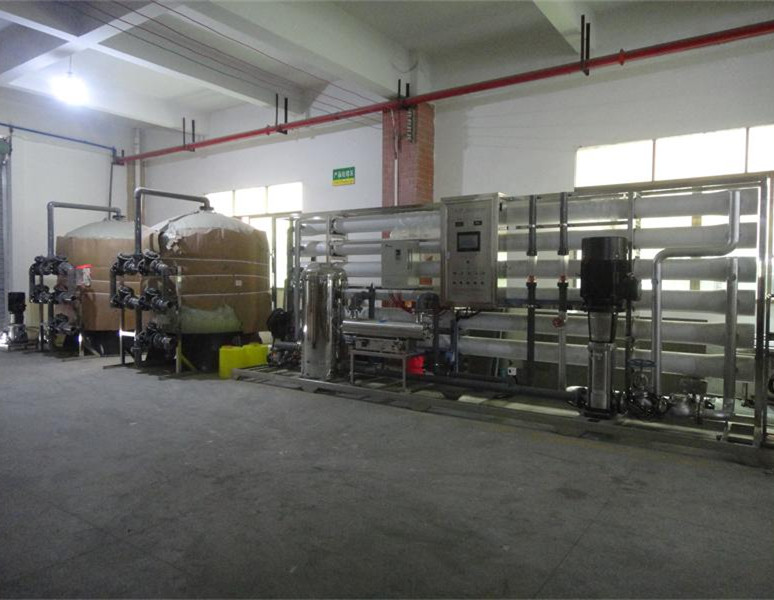

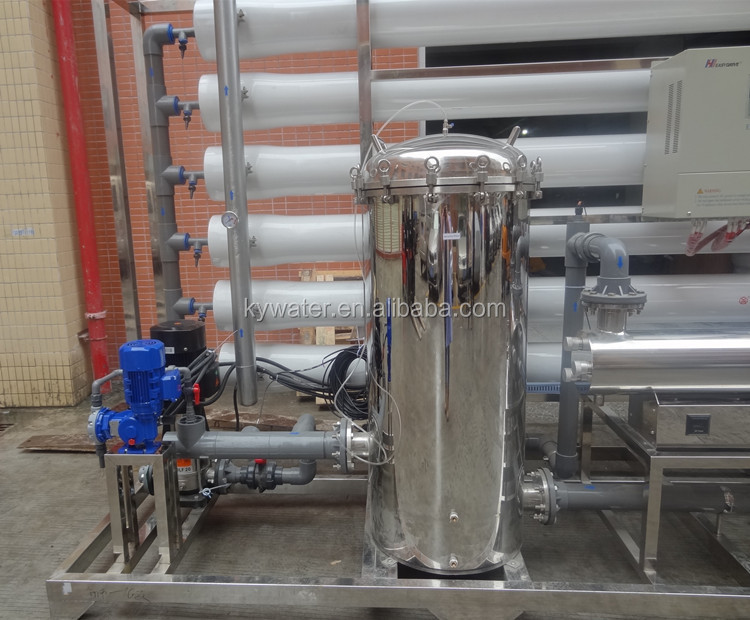

Pre-treatment: This part includes quartz sand, activated carbon filters, security filters, which can initially remove particles,
colloids, odor, smell, color, bacteria...and provide better water for RO system, which can protect the RO membranes as well produce better quality water.
The reverse osmosis process uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organics, pyrogen, sub-micron colloidal matter, and bacteria from water.
Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes.
Water permeates the minute pores of the membrane and is delivered as purified water.
Impurities in the water are concentrated in the reject stream and flushed to the drain.
Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99%bacterial in the feed water.
Raw water: Brackish water TDS=2000-20000ppm, ground/well water, city water, rains, river/lake water ... or according to customer's requirements
Capacity:500lph,1000lph,2000lph,3000lp,4000lph,5000lph,6000lph....30000lph or according to customer's requirements
Output water application: commercial bottled selling water, human consumption drinking water...or according to customer's requirements

Main Features
1. Can run and produce water continuously, highly automatic
2. No need for chemicals to regenerate, easy operation and maintenance
3. RO system uses imported USA DOW membrane
4. Automatic switch on when lack of water, and switch off when no water or full of water
5. RO membrane auto wash and reduce the pollution speed.
6. Low-pressure switch protects the high-pressure pump from damage caused by water supply stops.

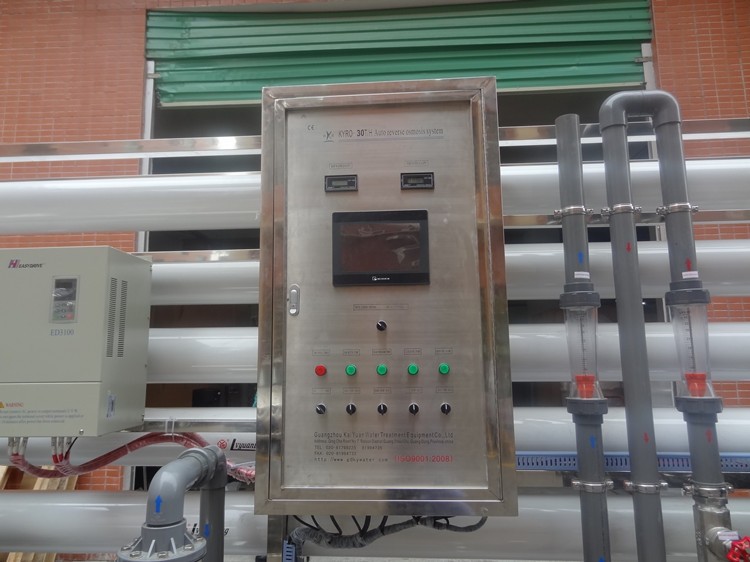

7. Production water conductivity meter monitors water quality online continuously.
8. Input water and dense water pressure meters, monitor the RO differential pressure, and remind the time of washing.

                                                            Core Components:
                                                            All parts

                                                            Warranty of core components:
                                                            1 Year

                                                            Size:
                                                            8000*4000*800mm

                                                            Other capacity:
                                                            From 500lph to 50000lph

                                                            Material:
                                                            Customized, FRP/U-PVC

                                                            Weight:
                                                            9000KG

                                                            Warranty:
                                                            1 Year

                                                            Function:
                                                            Water desalination(remove impurities, such as ions,bateria...)

                                                            Power:
                                                            50kw

                                                            Production capacity:
                                                            30000lph

                                                            Type of control:
                                                            Automatic/Semi-auto

                                                            Electricity power supply:
                                                            220v,110v,380v,50HZ/60hz or customerized

                                                            Recovery rate:
                                                            More than 60%

                                                            Necessary parts:
                                                            CIP Washing system/chemical doing machine

                                                            option 1:

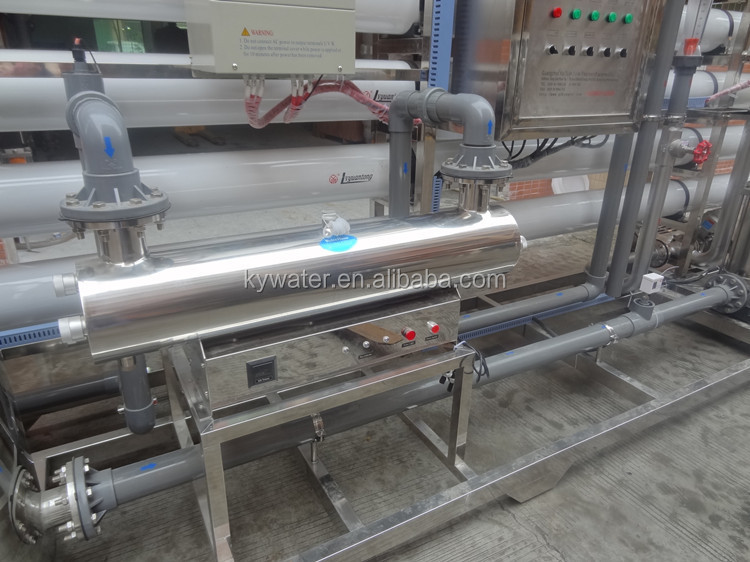

                                                            Ozone generator/uv sterilizer

                                                            option 2:
                                                            Toray,Votron,USA DOW menbrane
