Ultra Filtration Plant

(0 reviews)

(670) Views

(0) Contacts

Ultra Filtration is a membrane-based technology that is used for the removal of suspended particles up to 0.01 microns in size which results in SDI reduction. These membranes are available in 10 Kilo Daltons & 100 Kilo Daltons molecular weight cut-off configurations as per the process requirements.

Contact Company

WTE Infra Projects Pvt. Ltd.

Maharashtra, India

(2673) Views

(16) Contacts

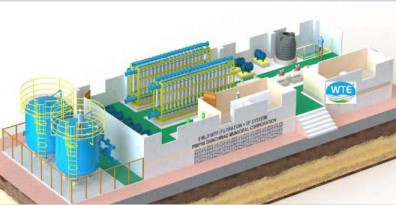

Ultra filtration plant is used for the separation of suspended solids, colloids, bacteria viruses, and particulate matter from the water and wastewater. This is a technique that uses membranes with pore sizes between 1-100nm and can remove particles as small as 0.01 microns. This plant is designed for automation, easy operation, low human intervention, and maintenance. It is built to withstand all weather conditions and perform optimally throughout the year.

                                                            Usage/Application
                                                            for Reuse

                                                            Filter Type
                                                            Ultrafiltration membrane

                                                            Capacity
                                                            as per Client Requirement

                                                            Flow Rate
                                                            depends on the capacity of plant

                                                            Origin
                                                            Made in India

Pretreatment to RO
Colloidal Silica removal
Ash/scrubber waste treatment
River water clarification
Filter backwash water recovery
Food and dairy processing
Waste water plants

Industrial Uses

Power Generation
Food & Beverage Processing
Pharmaceutical Production
Biotechnology
Semiconductor manufacturing
Laboratory grade water purification
Wastewater treatment
Drinking water treatment

The UF Plant is simple to operate, easy to maintain, automatic operation, compact, and has adequate safety interlocks.
Pretreatment to RO
Post-treatment to wastewater Treatment Plants
TSS/Turbidity Reduction.
Low-fouling Hydrophilic UF membrane
Excellent filter performance with high flux
The high removal efficiency of bacteria and viruses
Periodically back-washed and air-scoured for consistent performance
Simple, vertical, modular design allows low-cost, compact systems
Fully automated control system for the backwashing process
Advanced custom-designed Control Cubicle
Stainless/carbon steel equipment frame
Permeate, back pulse pumps, membrane aeration blowers, and associated valving mounted on equipment frame
