Ultrafiltration technology has become an indispensable tool in the pharmaceutical industry, food industry, electronics industry, and environmental protection.

The ultrafiltration technology has many advantages, it is often used as:

(1) desalination and concentration of macromolecular substances, and exchange balance of macromolecule solvent systems.
(2) separation of macromolecules.
(3) de-pyrolysis of biochemical or other formulations.
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane.

A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for the removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP).
As advancements are made in membrane production and module design, capital and operating costs continue to decline.

Principle of the Ultrafiltration membrane

Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for a solution and can remove particles whose molecule weight ranges 1,500-100,000 Dalton, and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.

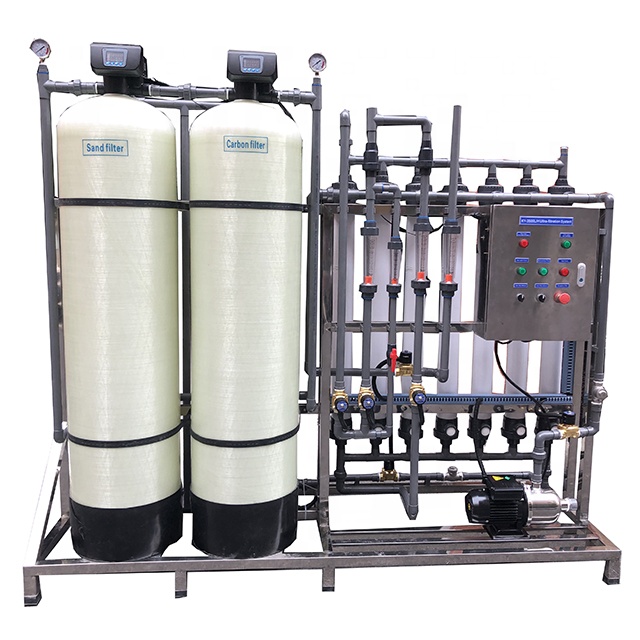

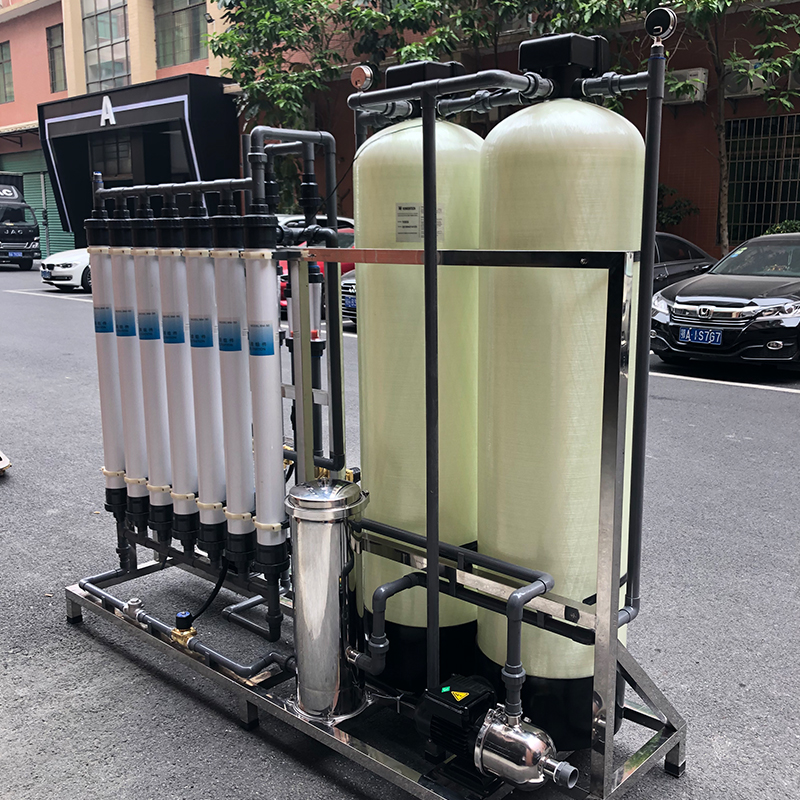

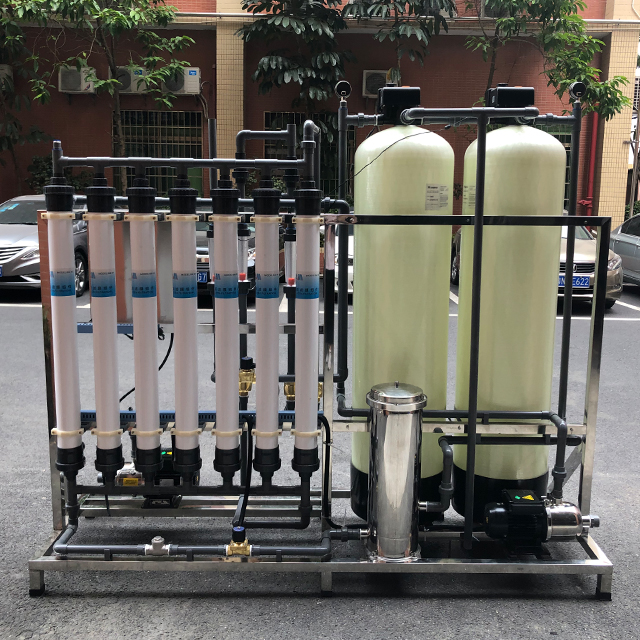

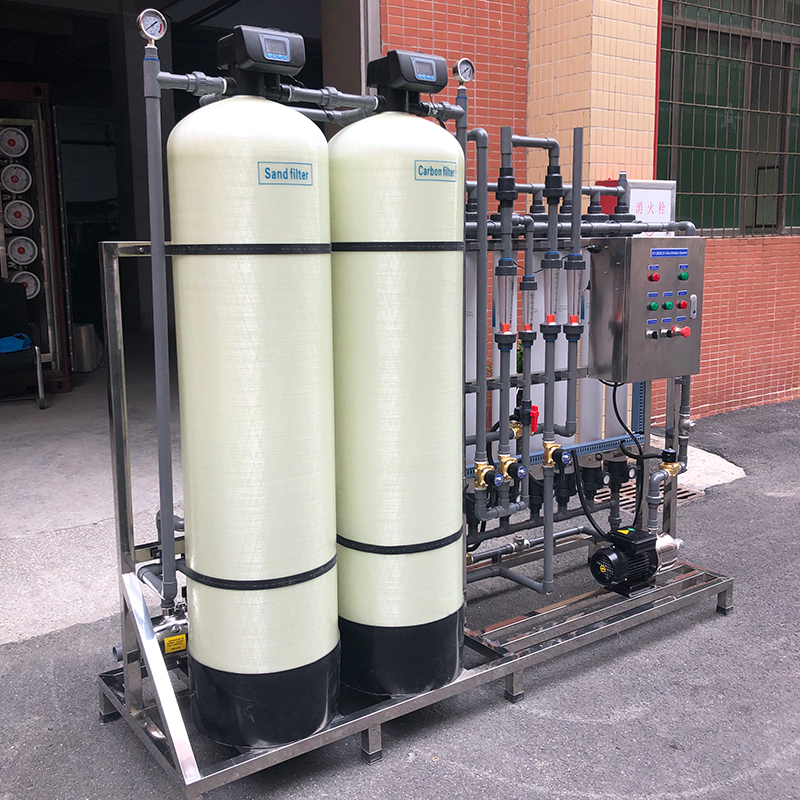

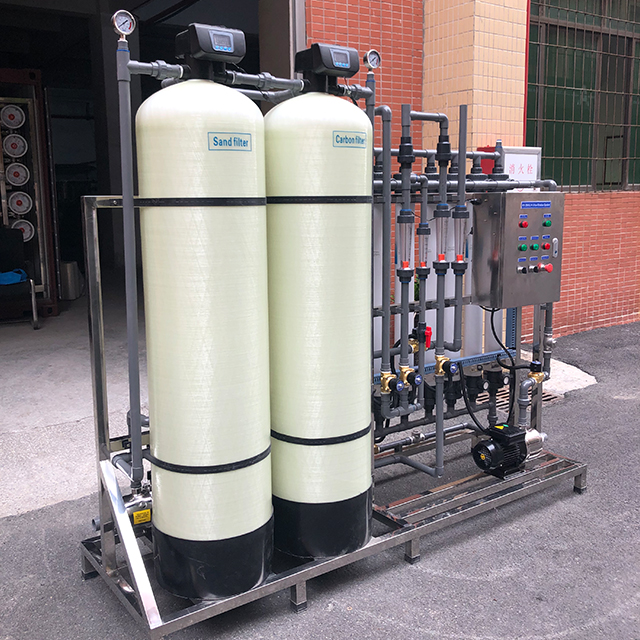

Advantages of our ultrafiltration/UF system:

Advanced and famous ultrafiltration membrane element
High recovery rate of the system
No phase transformation in the process
Low energy consumption, short production cycle, and low equipment operation
Small area, simple operation, and maintenance, low labor intensity
The hygienic of the site is clean

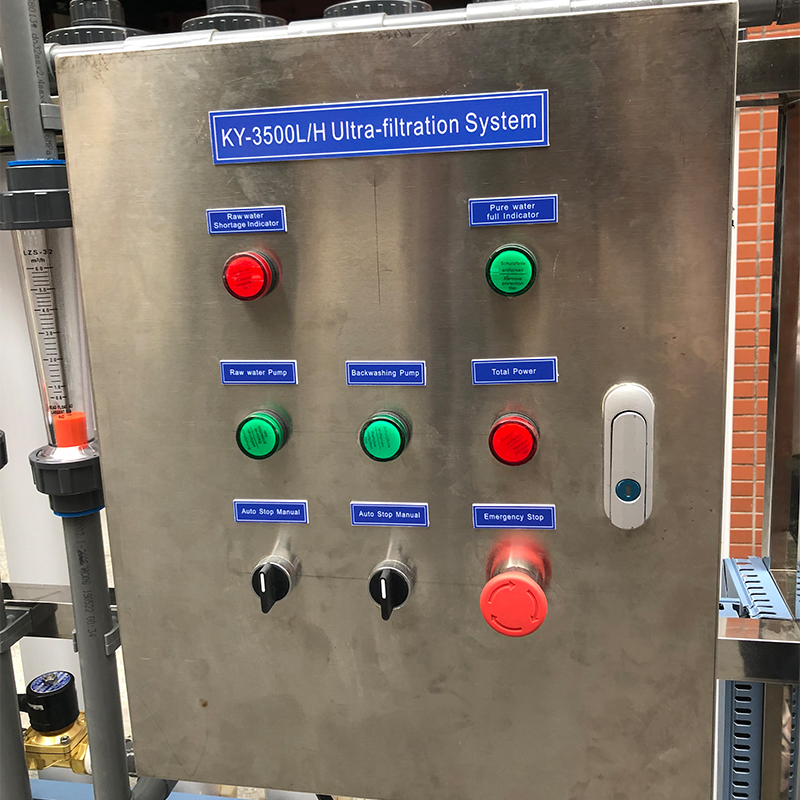

The control system can be designed according to the user's specific requirements

                                                            Warranty of core components:
                                                            1 Year

                                                            Core Components:
                                                            Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

                                                            Material:
                                                            Wooden, Carton

                                                            Power supply:
                                                            380V 50Hz 3phase

                                                            Weight:
                                                            400KG

                                                            Size:
                                                            1870*650*1850mm

                                                            Power:
                                                            3.5Kw

                                                            Warranty:
                                                            1 Year

                                                            Productivity:
                                                            3500L/Hour

                                                            Pure water output:
                                                            3.5TPH

                                                            Auto valve:
                                                            Auto valve

                                                            UF membrane:
                                                            UFc90AL

                                                            Prefiltering tank size:
                                                            400*1650mm

                                                            Backwash tank:
                                                            PE-300

                                                            Prefiltering tank:
                                                            glass fiber FRP

                                                            Pretreatment filter:
                                                            Sand/carbon/security PP filter

                                                            Pipe fittings:
                                                            U-PVC

1. Pure and ultrapure water equipment,
2. No bacterium no heat raw water equipment for pharmacy,
3. Purification for beverage, drinking water, and mineral water,
4. Separation, concentration, and purification in industry
5. Wastewater treatment, electrophoretic coating, electroplating, oil wastewater treatment, etc.
