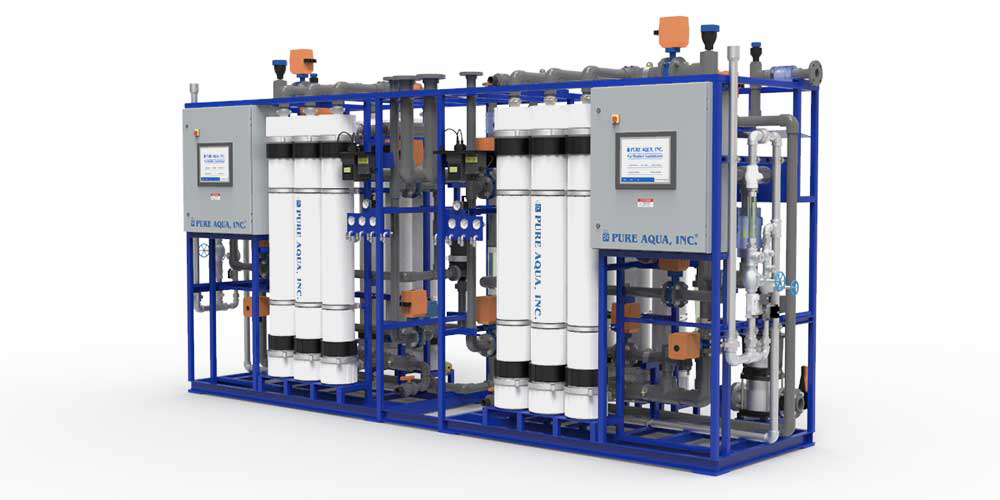

Industrial Ultrafiltration UF Systems

(0 reviews)

Get Price

(117) Views

(0) Contacts

Contact Company

Aqua Components LLC

Riyadh, Saudi Arabia

(980) Views

(14) Contacts

A pressure-driven membrane separation technique called ultrafiltration clears water of suspended or particulate materials, such as silt and colloids. Compared to traditional multimedia filtration, which eliminates particles 10 microns or bigger, ultrafiltration is more dependable. Most viruses and bacteria are also effectively eliminated by ultrafiltration.
Multimedia filters and clarifiers are no longer necessary with ultrafiltration systems. A UF module with an outside-in flow arrangement is the foundation of the standard design, enabling easier cleaning, larger solids loading, higher flow area, and less clogging. Advanced 3D computer modeling and process design software are used in the engineering of Aquacomponents' whole range of standard and fully configurable ultrafiltration systems.

Choices Available:

CEB stands for chemically enhanced backwash.
Oxidizer for feed/backwash (dosing system).
Skid for membrane cleaning (CIP).
3Ph/50Hz, 380-415V power supply.
monitor of turbidity.
Multi-stage feed pump made of stainless steel.
VFD for the feed pump.
HMI + PLC.
Backwash (filter) tank air compressor.
pressure sensors.
Scour of the air.
SS 316 or Duplex 2205 automated screen filter.

                                                            Power supply
                                                            460V/3Ph/60Hz

                                                            Max oil & grease
                                                            2mg/L

                                                            Temperature
                                                            25°C (max. 40°C)

                                                            TOC
                                                            < 10 max. < 40 mg/L

                                                            pH
                                                            6-9 (2-11 cleaning)

                                                            COD
                                                            < 20 max. < 60 mg/LM

                                                            TSS
                                                            < 50 max. < 100 mg/L

                                                            Backwash frequency
                                                            20-60 minutes

                                                            Cl2
                                                            0.5 ppm (2,000 cleaning)

                                                            Turbidity
                                                            < 50 max. 300 NTU
