Flat Single Axis Solar Tracking System

(0 reviews)

Get Price

(116) Views

(0) Contacts

Contact Company

Shandong Zhaori New Energy Tech. Co., Ltd.

Shandong, China

(410) Views

(2) Contacts

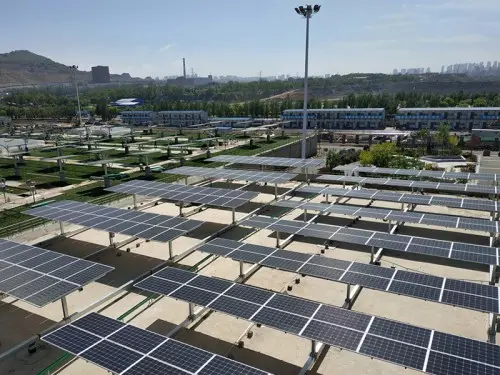

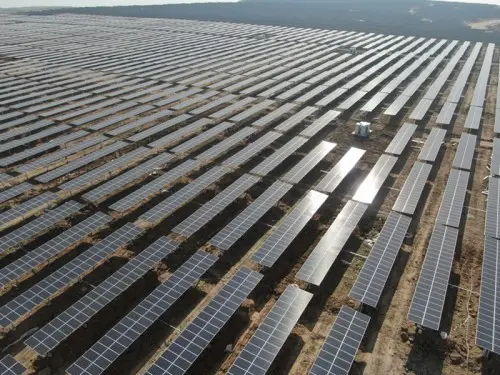

ZRP flat single-axis solar tracking system has one axis tracking the azimuth angle of the sun. Each set mounting 10 - 60 pieces of solar panels, given a 15% to 30% production gain over fixed-tilt systems on the same size array. ZRP flat single-axis solar tracking system has good power generation in low latitude regions, the effect will be not so good in high latitudes, but it can save lands in high latitude regions. A flat single-axis solar tracking system is the cheapest tracking system and is widely used in large-scale projects.
Flat single-axis solar trackers will gather less energy per unit compared to dual-axis solar trackers, but with shorter racking heights, they require less space to install, creating a more concentrated system footprint and an easier model for operations and maintenance.
We can equip weather stations, with wind sensors, irradiator, rain and snow sensor, and real-time perception of weather changes. In windy weather, the system can return to the horizontal state to achieve the wind resistance purpose. When it rains, the module enters a tilted state so that the rainwater can wash the module. When it snows, the module also enters a tilted state to prevent snow from covering the module. On cloud-covered days, sunlight doesn’t reach the Earth’s surface with direct beams — it is received as diffuse light — which means a panel facing directly at the sun won’t necessarily have the most generic. It could mean panels will stow horizontally to catch the diffuse light.ZRP flat single-axis solar tracking system has one axis tracking the azimuth angle of the sun.

Each set mounting 10 - 60 pieces of solar panels, given a 15% to 30% production gain over fixed-tilt systems on the same size array. ZRP flat single-axis solar tracking system has good power generation in low latitude regions, the effect will be not so good in high latitudes, but it can save lands in high latitude regions. A flat single-axis solar tracking system is the cheapest tracking system, widely used in large-scale projects. Flat single-axis solar trackers will gather less energy per unit compared to dual-axis solar trackers, but with shorter racking heights, they require less space to install, creating a more concentrated system footprint and an easier model for operations and maintenance.

                                                            System type
                                                            Single row type / 2-3 rows linked

                                                            Control mode
                                                            Time + GPS

                                                            Average tracking accuracy
                                                            0.1°- 2.0°(adjustable)

                                                            Total power per set
                                                            5kW - 40kW

                                                            Gear motor
                                                            24V/1.5A

                                                            Output torque
                                                            5000 N·M

                                                            Tracking power consumption
                                                            5kWh/year/set

                                                            Weight per set
                                                            200 - 400 KGS

                                                            Azimuth angle tracking range
                                                            ±50°

                                                            Back tracking
                                                            Yes

                                                            Max. wind resistance in horizontal
                                                            40 m/s

                                                            Max. wind resistance  in operation
                                                            24 m/s

                                                            Working temperature
                                                            -40℃ - +80℃

                                                            Material
                                                            Hot-dipped galvanized≥65μm

                                                            System warranty
                                                            3 years
