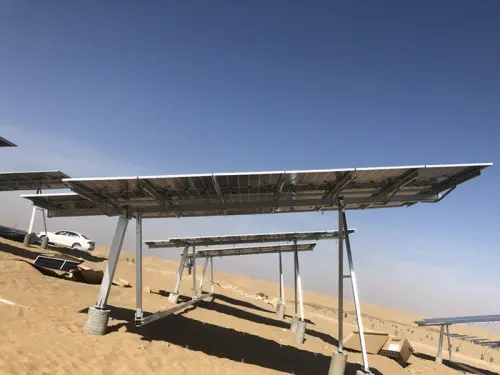

ZRT-16 Tilted Single Axis Solar Tracking System

(0 reviews)

Get Price

(93) Views

(0) Contacts

Contact Company

Shandong Zhaori New Energy Tech. Co., Ltd.

Shandong, China

(410) Views

(2) Contacts

ZRT tilted single-axis solar tracking system has one tilted axis (10°– 30° tilted) tracking the azimuth angle of the sun. Each set mounting 10 - 20 pieces of solar panels, increase your power generation by about 15% - 25%. ZRT series tilted single-axis solar tracking system has many product models, such as ZRT-10 for supporting 10 panels, ZRT-12, ZRT-13, ZRT-14, ZRT-16, etc. ZRT-16 is one of the most popular models, it is one of the ZRT series products with the lowest average cost. The total solar module installation area is generally between 31 - 42 square meters, with a 10 - 15 degree tilt angle.
Suppliers of dual-axis and tilted single-axis solar tracking systems are rare in today's market. The important reason is that the number of solar modules driven by a single driving & control unit of these two tracking systems is small, and the driving & control cost is difficult to control, so the total cost of the system is difficult to be accepted by the market. As an old tracking system supplier, we have independently developed two different driving & control solutions, which are specially designed for solar tracker products, which not only well control the cost, but also ensure the reliability of the system, so that we can provide the market with affordable dual axis and tiled single axis solar tracking systems, and ZRT-16 model is the best in cost performance.

                                                            Control mode
                                                            Time + GPS

                                                            Total power per set
                                                            6kW - 20kW

                                                            System type
                                                            Independent drive / 2-3 rows linked

                                                            Average tracking accuracy
                                                            0.1°- 2.0°(adjustable)

                                                            Gear motor
                                                            24V/1.5A

                                                            Weight per set
                                                            260KGS - 350KGS

                                                            Output torque
                                                            5000 N·M

                                                            Working temperature
                                                            -40℃ — +75℃

                                                            Power consumption
                                                            0.01kwh/day

                                                            System warranty
                                                            3 years

                                                            Azimuth tracking range
                                                            ±50°

                                                            Material
                                                            Hot-dipped galvanized≥65μm

                                                            Elevation tilted angle
                                                            10° - 15°

                                                            Max. wind resistance in operation
                                                            24 m/s

                                                            Max. wind resistance in horizontal
                                                            40 m/s
