Tilted Single Axis Solar Tracking System

(0 reviews)

Get Price

(87) Views

(0) Contacts

Contact Company

Shandong Zhaori New Energy Tech. Co., Ltd.

Shandong, China

(409) Views

(2) Contacts

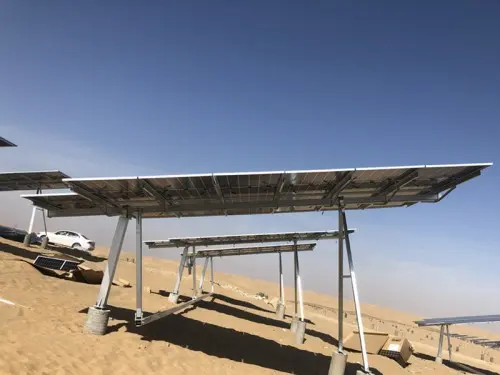

ZRT tilted single-axis solar tracking system has one tilted axis (10°– 30° tilted) tracking the azimuth angle of the sun. It is mainly suitable for medium and high-latitude regions. Each set mounting 10 - 20 pieces of solar panels, increase your power generation by about 15% - 25%. We use three-point supports for the structure to make it more stable and has better wind resistance performance, with no shaking clearance on the driving system and rotation parts. The rotation parts use UPE material solar bearing with 4.5 million molecular weight, good wear resistance, and aging resistance, self-lubricating, and 25 years without maintenance.
No professional maintenance personnel are required, in case of equipment problems, the spare parts can be replaced directly in a very short time on site. We can provide two driving options and flexibly adjust the solution for different projects. IP65 protection grade for electronic parts, and double-layer protection for core components, can be applied in desert projects and water projects. The structure uses hot-dipped galvanized steel or new-type galvanized aluminum magnesium with high strength and good corrosion resistance, it can be installed in coastal areas.

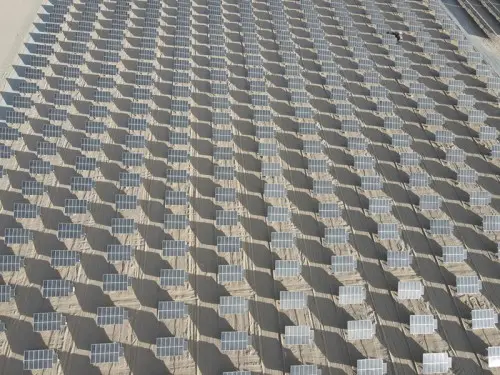

More than 6000 sets of ZRT series tiled single-axis solar trackers have been installed and used in public utility projects, industrial and commercial projects, solar water pump projects, and household projects all over the world.

                                                            Control mode
                                                            Time + GPS

                                                            System type
                                                            Independent drive / 2-3 rows linked

                                                            Total power per set
                                                            4kW - 20kW

                                                            Average tracking accuracy
                                                            0.1°- 2.0°(adjustable)

                                                            Weight per set
                                                            160KGS - 350KGS

                                                            Working temperature
                                                            -40℃ — +75℃

                                                            Gear motor
                                                            24V/1.5A

                                                            Output torque
                                                            5000 N·M

                                                            Tracking power consumption
                                                            0.01kwh/day

                                                            Azimuth angle tracking range
                                                            ±50°

                                                            Elevation tilted angle
                                                            10° - 30°

                                                            Max. wind resistance in horizontal
                                                            40 m/s

                                                            System warranty
                                                            3 years

                                                            Max. wind resistance in operation
                                                            24 m/s

                                                            Material
                                                            Hot-dipped galvanized≥65μm
