2P Flat Single Axis Solar Tracker

(0 reviews)

Get Price

(96) Views

(0) Contacts

>= 50 sets
$620.00

Contact Company

Shandong Zhaori New Energy Tech. Co., Ltd.

Shandong, China

(410) Views

(2) Contacts

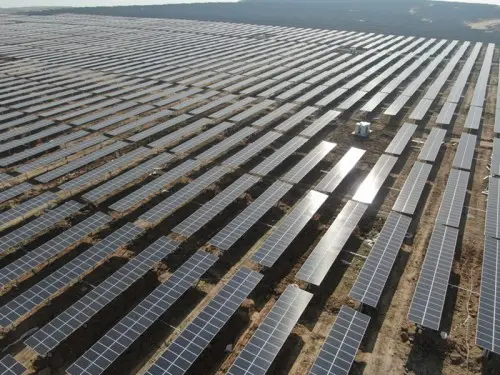

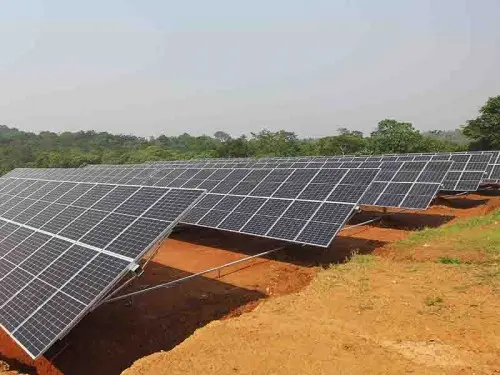

ZRP flat single-axis solar tracking system has one axis tracking the azimuth angle of the sun. Each set mounting 10 - 60 pieces of solar panels, single row type or 2 - rows linked type, given a 15% to 30% production gain over fixed-tilt systems on the same size array. At present, the flat single-axis solar tracker in the market mainly has two solar array layout forms: 1P and 2P, 1P layout scheme is undoubtedly better in structural stability and has good wind and snow pressure resistance performance, but it uses a larger amount of steel and the number of pile foundations will inevitably increase, which will bring a small increase in the total construction cost of the solar power station.

Another disadvantage is that its central main beam will bring more back shielding to the bifacial solar modules than the 2P layout scheme. The 2P scheme is a scheme with more cost advantages, but the core is to solve how to ensure the firmness of the system structure when 500W+ and 600W+ large-area solar modules are widely used. For the 2P structure, in addition to the traditional fishbone structure, our company also launched a double main beam structure, which can effectively support the solar panels, prevent the sagging at both ends of the solar modules, and reduce the hidden cracks of the solar modules.

                                                            System type
                                                            Single row type / 2-3 rows linked

                                                            Control mode
                                                            Time + GPS

                                                            Total power per set
                                                            5kW - 40kW

                                                            Average tracking accuracy
                                                            0.1°- 2.0°(adjustable)

                                                            Weight per set
                                                            200 - 400 KGS

                                                            Gear motor
                                                            24V/1.5A

                                                            Working temperature
                                                            -40℃ - +80℃

                                                            Output torque
                                                            5000 N·M

                                                            System warranty
                                                            3 years

                                                            Tracking power consumption
                                                            5kWh/year/set

                                                            Material
                                                            Hot-dipped galvanized≥65μm

                                                            Azimuth angle tracking range
                                                            ±45°- ±55°

                                                            Max. wind resistance in operation
                                                            24 m/s

                                                            Back tracking
                                                            Yes

                                                            Max. wind resistance in horizontal
                                                            40 m/s
