Home / Energy / Solar Energy / Solar Tracking System / Flat Single Axis Tracker with Inclined Module
Flat Single Axis Tracker with Inclined Module
(0 reviews)
Get Price
(79) Views
(0) Contacts

100 - 999 kilowatts       1000 - 4999 kilowatts
           $120.00                               $110.00
5000 - 9999 kilowatts   >= 10000 kilowatts
      $105.00                               $100.00

Contact Company





Shandong Zhaori New Energy Tech. Co., Ltd.
Shandong, China
(410) Views
(2) Contacts

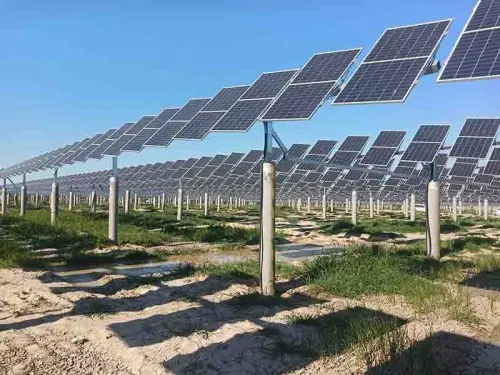

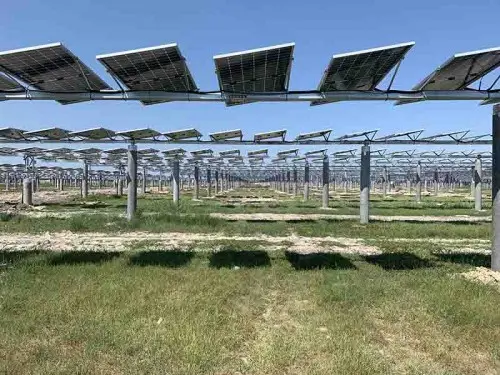

ZRPT flat single-axis solar tracking system with a tilted module is a combination of flat single-axis solar tracking system and a tilted single-axis solar tracking system. It has one flat axis tracking the sun from east to west, with solar modules installed at a 5 - 10 degrees tilted angle. It is mainly suitable for medium and high-latitude regions, promoting your power generation by about 20%.
ZRPT solar trackers are split into centralized and decentralized tracker types. Centralized or distributed trackers use a single motor to power a driveline between rows that will move an entire segment of panels. Decentralized systems have one motor per tracking row. There are also instances of trackers with motors present on every set of racking, making rows more adjustable during installation and in some cases allowing them to track independently of neighboring modules.
The driving system adopts a self-developed special stainless steel shell linear actuator with internal and external protection. The rubber dust ring is used between the shells. At the same time, it has a reverse self-locking function, strong impact resistance, and overall high protection and stability suitable for outdoor harsh environments. It has the characteristics of long service life, large output torque, convenient disassembly, stable operation, and low operation and maintenance costs.

Control mode Time + GPS
Total power per set 4kW - 20kW
System type Independent drive / 2-3 rows linked
Weight per set 160KGS - 350KGS
Average tracking accuracy 0.1°- 2.0°(adjustable)
Working temperature -40℃ — +75℃
Gear motor 24V/1.5A
System warranty 3 years
Output torque 5000 N·M
Tracking power consumption 0.01kwh/day
Azimuth angle tracking range ±50°
Main material Hot-dipped galvanized steel ≥65μm
Solar module tilted angle 5° - 10°
Max. wind resistance in operation 24 m/s
Max. wind resistance in horizontal 40 m/s
