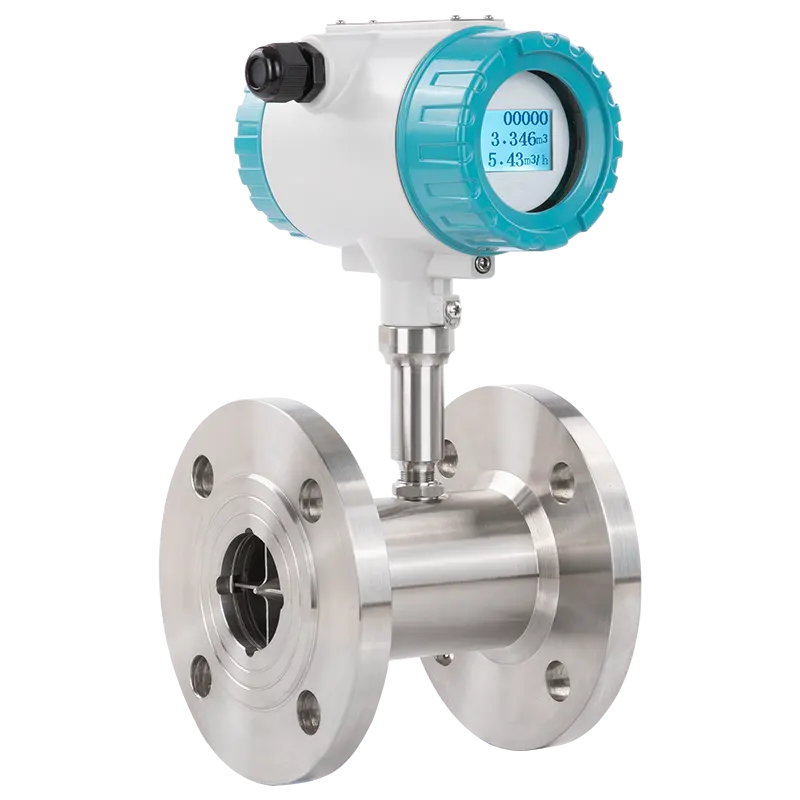

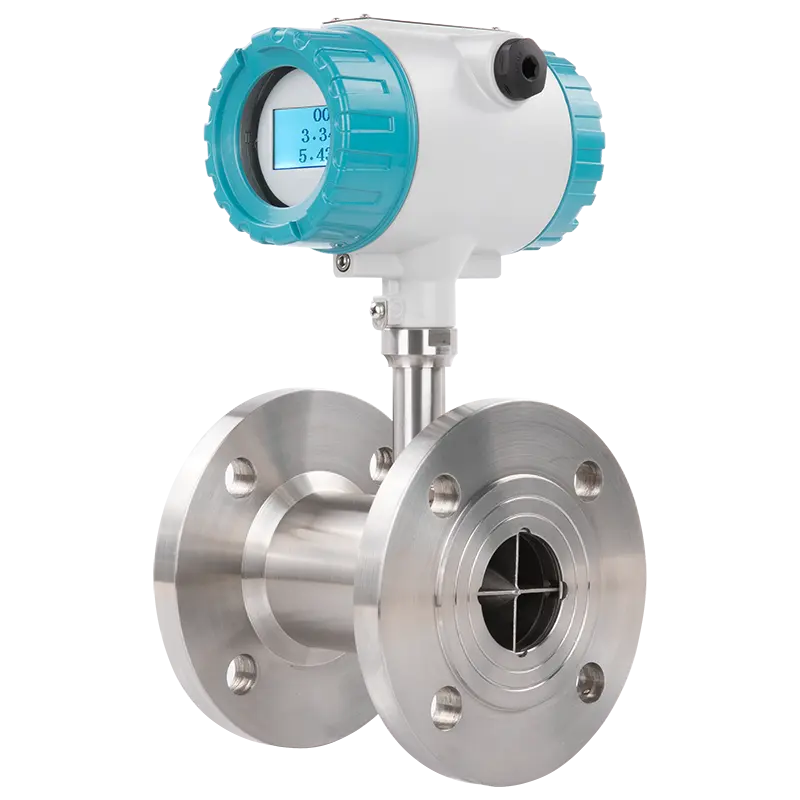

Flange Ultrasonic Flow Meter

(0 reviews)

Get Price

(428) Views

(0) Contacts

Contact Company

WESDOM

Henan, China

(968) Views

(4) Contacts

Description of Flow Meter
The electromagnetic flow meter is one of the most popular flow meters. Flange-type electromagnetic flow meter has been used for more than 50 years worldwide. It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry, etc. Since being founded in 2005, WESDOM has sold more than 600 thousand electromagnetic flow meters to provide solutions for clients in different work conditions.
Installation of Flow Meter
Flange Electromagnetic Flow Meter Installation Requirement
In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system.
Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables, etc.
Avoid locations with pipe vibrations for example pumps.
Do not install the meter close to pipeline valves, fittings, or impediments that can cause flow disturbances.
Place the meter where there is enough access for installation and maintenance tasks.

                                                            Size
                                                            DN15-DN3000mm  Nominal

                                                            Pressure
                                                            0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa…Max 42Mpa)

                                                            Accuracy
                                                            0.5% (Standard), 20.3% or 10.2% (Optional)

                                                            Liner
                                                            PTFE. Neoprene, Hard Rubber, EPDM, FEP. Polyurethane, PFA

                                                            Output Signal
                                                            4-20mA/Puse

Application of Flow Meter

The electromagnetic flow meter is widely used in water treatment, the food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring, etc.
In the metallurgical industry, it is often used to control the flow of cooling water for continuous steel casting, continuous steel rolling, and steel-making electric
furnaces;
In the field of water supply and drainage in public utilities, electromagnetic flow meters are often used for the transfer measurement of finished product water and raw water in water plants;
In the pulping process of the paper industry, electromagnetic flow meters are involved in the measurement of the flow of grinding pulp, water, acid, and alkali;
In the coal industry, measuring coal washing and pipeline hydraulic conveying coal slurry.
For food and beverage industries, it is used for beer and beverage filling measurement.
For chemical and petrochemical industries, it is used to measure corrosive liquids, such as acids and alkalis, etc

Advantages of Flow Meter
The main advantages of using an electromagnetic flow meter are that it is with no moving parts, no pressure loss, and requires very less maintenance.
Flange-type magnetic flow meters can be made in large size range from DN3-DN3000mm and with bi-directional flow measurement. WESDOM mag flow meters are built- with a self-diagnosis function and support data record/Bluetooth function and various kinds of output signals.
Compared with other liquid-type flow meters, the limitation of magnetic flow meters is that they can only be used for conductive liquid. Regarding non or low-conductive liquids such as petroleum products, organic solvents can not be used. The electromagnetic flow meter will be affected if there's a strong magnetic field in the surrounding environment.
